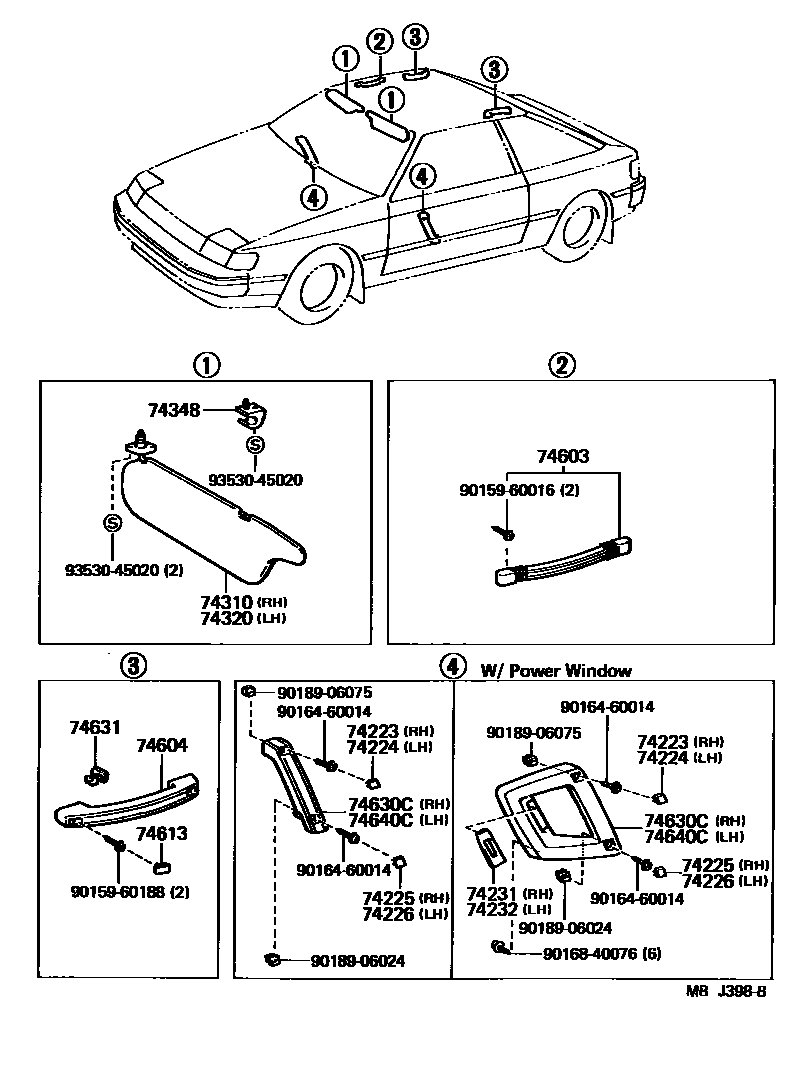

ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74223-20030

main74223-20030-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74223-20030

main74223-20030-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74223-20030

main74223-20030-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74223-20030

74224CAP, DOOR ARMREST, LH

main74224-20030-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74224-20030

main74224-20030-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74224-20030

main74224-20030-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74224-20030

main74224-20030-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74224-20030

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74225-20020

main74225-20020-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74225-20020

main74225-20020-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74225-20020

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74225-20020

main74225-20020-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74225-20020

main74225-20020-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74225-20020

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20150-02iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,RED,RED,TRIM3#

main74231-20150-03iST16#..GT,GTS198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74231-20150-04iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74231-20150-06iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BROWN,BROWN,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20150-02iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,RED,RED,TRIM3#

main74232-20150-03iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74232-20150-04iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74232-20150-06iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BROWN,BROWN,TRIM4#

main74232-20160-03iST162..CVT198608-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-20290-02iST16#..ST198508-198708

RED,RED,TRIM3#

sub74310-20300

sub74310-20290

main74310-20290-03iST16#..ST198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74310-20300

sub74310-20290

main74310-20290-04iST16#..ST198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74310-20300

sub74310-20290

main74310-20290-06iST16#..ST198508-198708

BROWN,BROWN,TRIM4#

sub74310-20300

sub74310-20290

main74310-20450-02iST16#..(CP,LB)..(GT,GTS)198508-198708

RED,RED,TRIM3#

main74310-20450-03iST16#..(CP,LB)..(GT,GTS)198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74310-20450-04iST16#..(CP,LB)..(GT,GTS)198508-198708

BLUE,DEEP BLUE,TRIM8#

main74310-20450-06iST16#..(CP,LB)..(GT,GTS)198508-198708

BROWN,BROWN,TRIM4#

main74310-20530-03iST162..CVT198608-198701

GRAY,SHADOW GRAY,TRIM1#

main74310-20531-03iST162..CVT198701-198708

GRAY,SHADOW GRAY,TRIM1#

sub74310-20532

74320VISOR ASSY, LH

main74320-20400-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

main74320-20400-03iST16#..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74320-20400-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

main74320-20400-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

main74320-20490-03iST162..CVT198608-198701

GRAY,SHADOW GRAY,TRIM1#

main74320-20491-03iST162..CVT198701-198708

GRAY,SHADOW GRAY,TRIM1#

sub74320-20492

74348HOLDER, VISOR

main74348-20020-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74348-12020

sub74348-20020

main74348-20020-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74348-12020

sub74348-20020

main74348-20020-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74348-12020

sub74348-20020

main74348-20020-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74348-12020

sub74348-20020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-16iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74610-14030

sub74610-12050

main74610-14030-22iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74610-14030

sub74610-12050

main74610-14030-24iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74610-14030

sub74610-12050

main74610-14030-33iST16#..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74610-14030

sub74610-12050

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-10020-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74610-10020

main74610-10020-06iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74610-10020

main74610-10020-14iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74610-10020

main74610-10020-33iST16#..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74610-10020

74613PLUG, ASSIST GRIP

main74617-14010-10iST16#..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74617-14010

main74617-14010-12iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74617-14010

main74617-14010-26iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74617-14010

main74617-14010-34iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74617-14010

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-02iST16#..CP,LB198508-198708

W/O *PW,RED,RED,TRIM3#

main74630-20010-03iST16#198508-198708

W/O *PW,GRAY,SHADOW GRAY,TRIM1#

main74630-20010-04iST16#..CP,LB198508-198708

W/O *PW,BLUE,DEEP BLUE,TRIM8#

main74630-20010-06iST16#..CP,LB198508-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74630-20020-02iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,RED,RED,TRIM3#

main74630-20020-03iST16#..GT,GTS198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74630-20020-04iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74630-20020-06iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BROWN,BROWN,TRIM4#

74631HOOK, COAT, A

main74631-14010-02iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub74631-14010

sub74631-20040

main74631-14010-10iST16#..CP,LB198508-198708

GRAY,LIGHT GRAY,TRIM1#

sub74631-14010

sub74631-20040

main74631-14010-26iST16#..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-34iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74631-14010

sub74631-20040

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-02iST16#..CP,LB198508-198708

W/O *PW,RED,RED,TRIM3#

main74640-20010-03iST16#198508-198708

W/O *PW,GRAY,SHADOW GRAY,TRIM1#

main74640-20010-04iST16#..CP,LB198508-198708

W/O *PW,BLUE,DEEP BLUE,TRIM8#

main74640-20010-06iST16#..CP,LB198508-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74640-20020-02iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,RED,RED,TRIM3#

main74640-20020-03iST16#..GT,GTS198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74640-20020-04iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74640-20020-06iST16#..(CP,LB)..(GT,GTS)198508-198708

W/*PW,BROWN,BROWN,TRIM4#

9015960016

main90159-60016

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

22 parts on this diagram · 1 diagram in section
