SEAT BELT & CHILD RESTRAINT SEAT
73003BELT SET, REAR SEAT 3 POINT TYPE, RH
73004BELT SET, REAR SEAT 3 POINT TYPE, LH
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
sub73021-20011
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
sub73022-20011
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
RED,BROWN,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,DEEP BLUE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
RED,MAROON,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
GRAY,SHADOW GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
GRAY,SHADOW GRAY,TRIM1#
W/3POINT SEAT BELT,RED,RED,TRIM3#
W/3POINT SEAT BELT,GRAY,SHADOW GRAY,TRIM1#
W/3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#
W/3POINT SEAT BELT,BROWN,BROWN,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
GRAY,SHADOW GRAY,TRIM1#
W/3POINT SEAT BELT,RED,RED,TRIM3#
W/3POINT SEAT BELT,GRAY,SHADOW GRAY,TRIM1#
W/3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#
W/3POINT SEAT BELT,BROWN,BROWN,TRIM4#
9018904022
main90189-04022
9046706064
main90467-06064
9165160616
main91651-60616
9352054014
main93520-54014
9356054016
main93560-54016

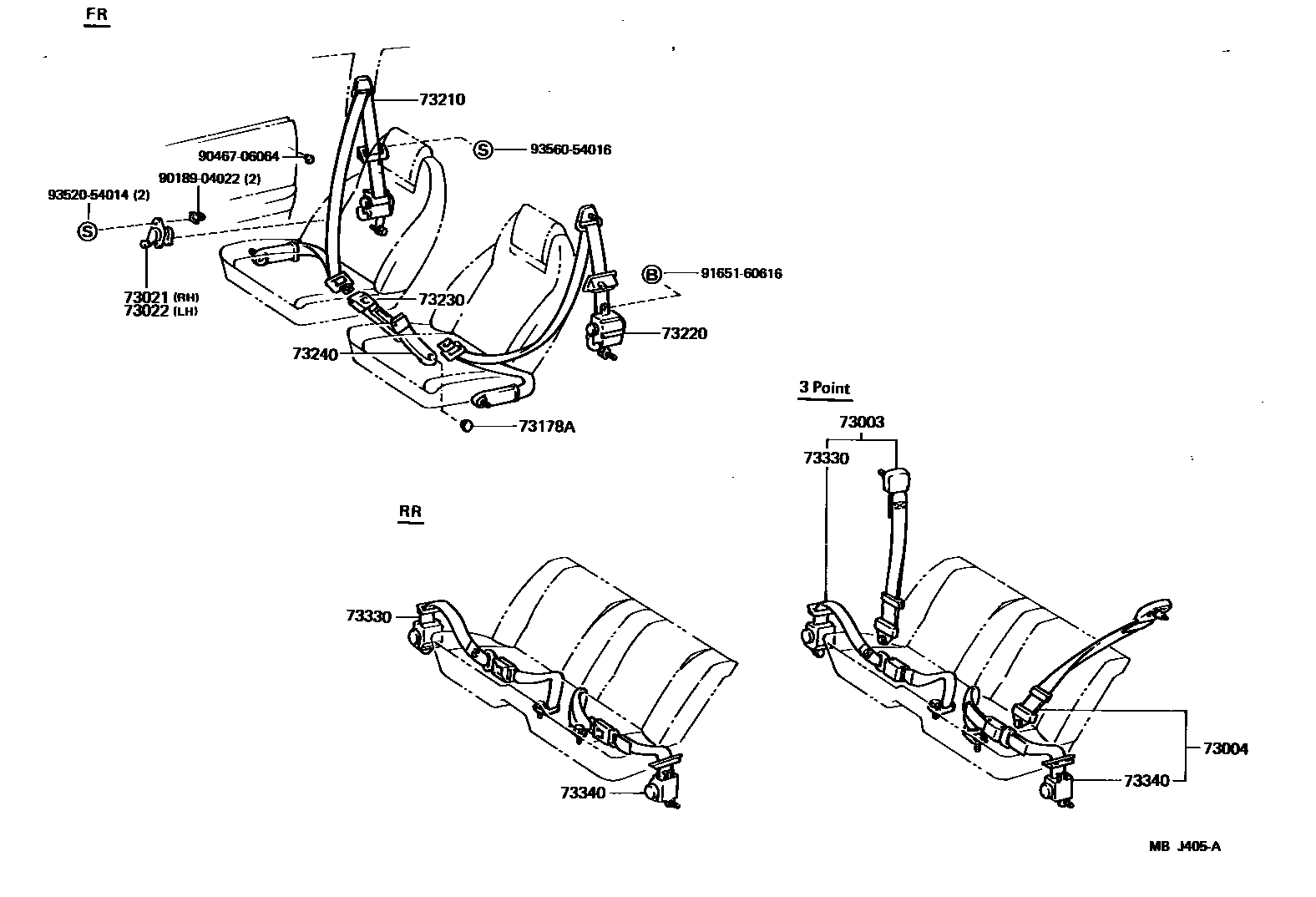

16 parts on this diagram · 1 diagram in section
