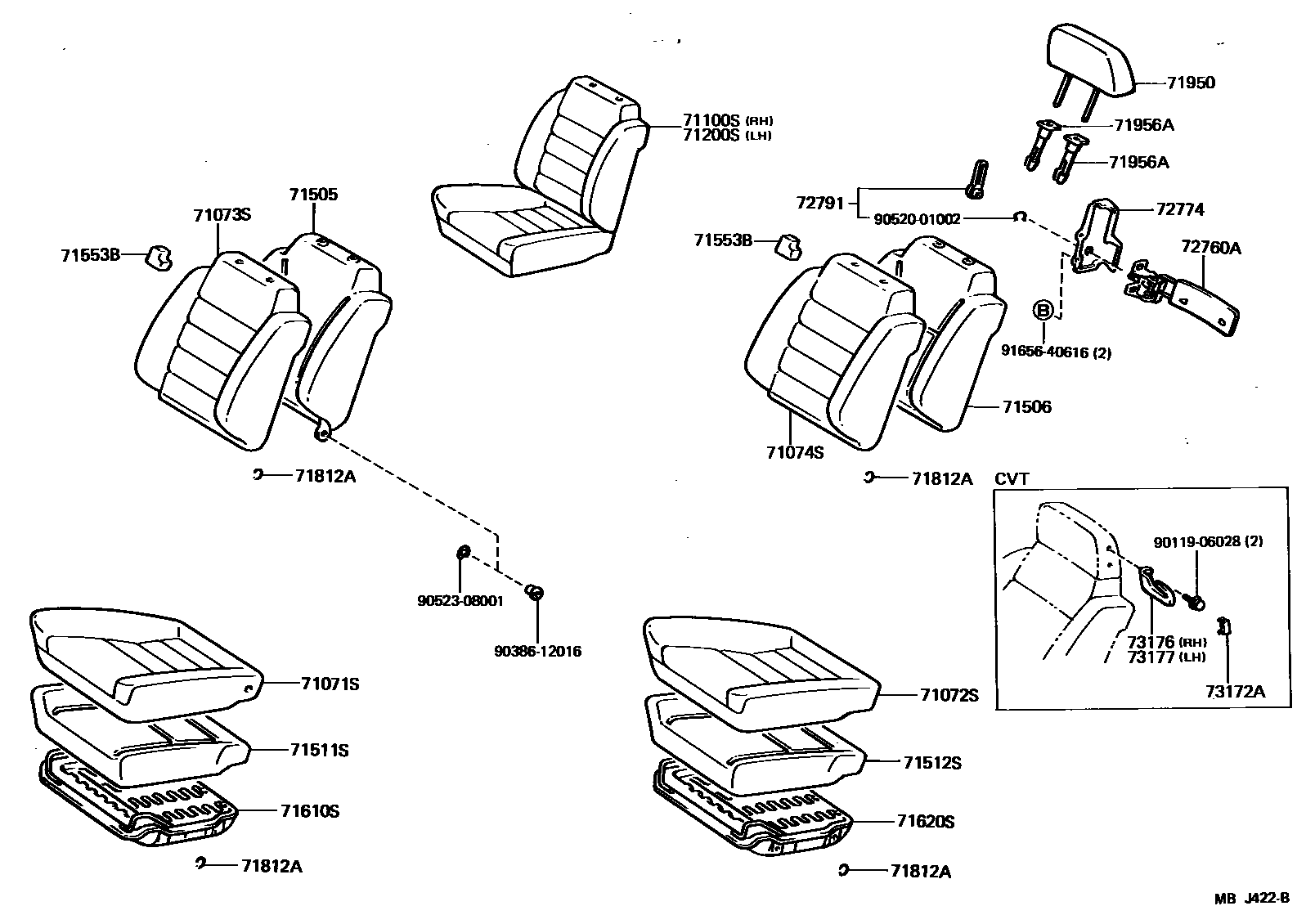

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71100SSEAT ASSY, FRONT RH
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71200SSEAT ASSY, FRONT LH
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,RED,RED,TRIM3#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71553BPAD, FRONT SEATBACK, B
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71812ARING, HOG, SMALL (FOR FRONT SEAT)
71950HEADREST ASSY, FRONT SEAT
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
LEATHER,RED,RED,TRIM3#
LEATHER,GRAY,SHADOW GRAY,TRIM1#
LEATHER,BLUE,DEEP BLUE,TRIM8#
LEATHER,RED,RED,TRIM3#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RH,GRAY,SHADOW GRAY,TRIM1#
LH,GRAY,SHADOW GRAY,TRIM1#
71956ASUPPORT, FRONT SEAT HEADREST
W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8#
W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8#
W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8#
72760AADJUSTER ASSY, LUMBAR SUPPORT
72774PROTECTOR, LUMBAR SUPPORT SPRING
72791LEVER, LUMBAR SUPPORT
73172ACAP, FRONT SHOULDER BELT HANGER
GRAY,SHADOW GRAY,TRIM1#
73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)
GRAY,SHADOW GRAY,TRIM1#
73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)
GRAY,SHADOW GRAY,TRIM1#
9011906028
9038612016
9052001002
9052308001
9165640616
27 parts on this diagram · 3 diagrams in section
