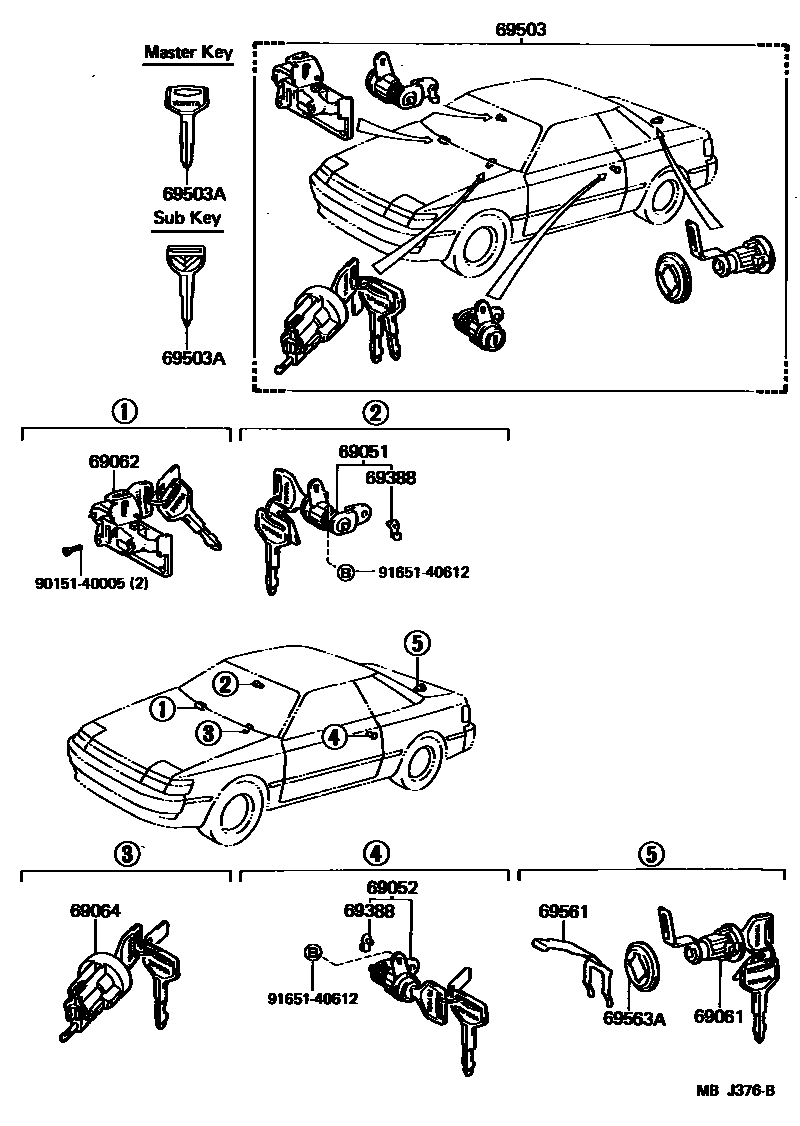

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20150iST16#..LB198508-198708

main69051-20180iST16#..CP,CVT198508-198708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20150iST16#..LB198508-198708

main69052-20180iST16#..CP,CVT198508-198708

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20220iST16#..CP,CVT198508-198708

sub69055-20210

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20090iST16#..LB198508-198708

sub69056-20080

main69056-20110iST16#..CP,CVT198508-198708

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20100iST16#..LB198508-198708

sub69057-14130

main69057-20140iST16#..CP,CVT198508-198708

sub69057-32121

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iST16#198508-198708

RH

main69759-30050iST16#198508-198708

LH

69503CYLINDER SET, LOCK

main69005-20340iST16#..CP,CVT198508-198708

main69005-20430iST16#..LB198508-198604

main69005-20431iST16#..LB198604-198708

69503AKEY, BLANK

main90999-00085iST16#..CP,CVT198508-198708

MASTER KEY,MASTER KEY

main90999-00094iST16#..CP,CVT198508-198708

SUB KEY,SUB KEY

main90999-00106iST16#..CP,CVT198508-198708

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

sub90999-00212

main90999-00112iST16#..LB198508-198708

MASTER KEY,MASTER KEY

main90999-00113iST16#..LB198508-198708

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

sub90999-00146

main90999-00114iST16#..LB198508-198708

SUB KEY,SUB KEY

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69501-20030iST16#..LB198508-198708

main69561-20070iST16#..CP,CVT198508-198708

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iST16#..CP,CVT198508-198708

9015140005

main90151-40005

9165140612

main91651-40612

12 parts on this diagram · 2 diagrams in section
