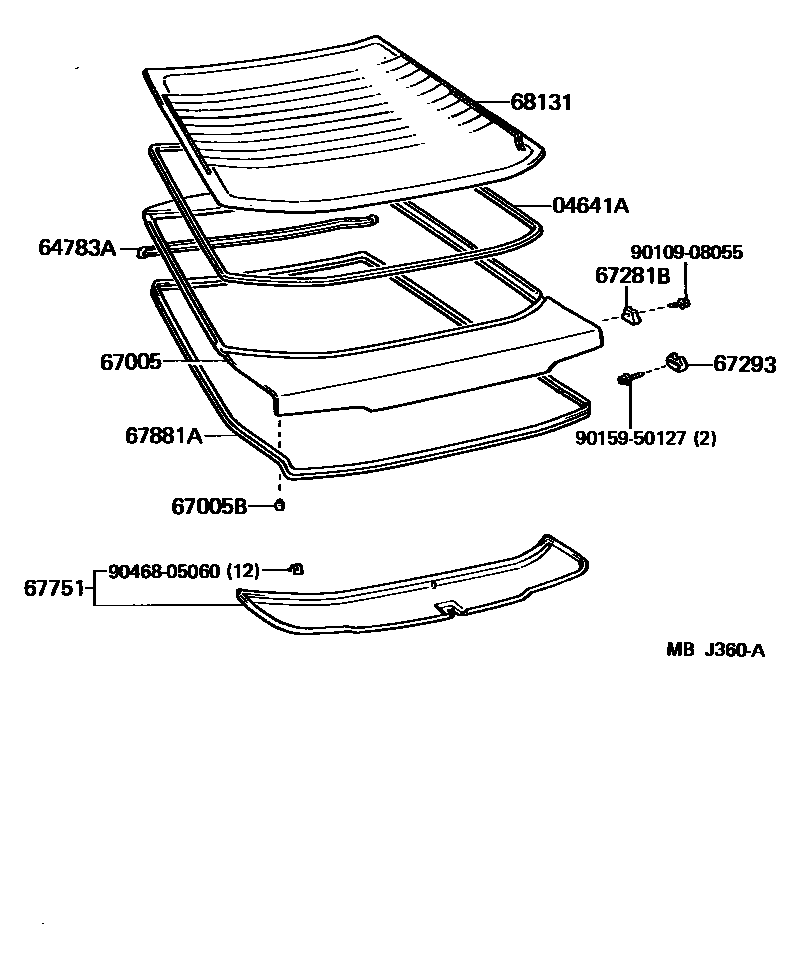

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iST16#..LB¥2,390198508-198708

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-20020iST16#..LB¥3,830198508-198708

67005PANEL SUB-ASSY, BACK DOOR

main67005-20630iST161..LB¥62,300198508-198608

W/*RW

sub67005-20631¥62,600

main67005-20631iST162..LB..GT¥62,600198608-198708

W/*RW

main67005-20640iST161..LB¥62,300198508-198608

W/O *RW

sub67005-20641¥62,600

main67005-20641iST162..LB..GT¥62,600198608-198708

W/O *RW

main67005-20680iST162..LB¥62,300198508-198608

sub67005-20681¥62,600

main67005-20681iST162..LB..GTS¥62,600198608-198708

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041iST16#..LB¥120198508-198708

67281BSTOPPER, BACK DOOR, LOWER

main67281-20020iST16#..LB¥470198508-198708

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020iST16#..LB¥740198508-198708

67751BOARD, BACK DOOR TRIM

main64781-20050-02iST16#..LB198508-198708

RED,RED,TRIM3#

main64781-20050-03iST16#..LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64781-20050-04iST16#..LB198508-198708

BLUE,DEEP BLUE,TRIM8#

main64781-20050-06iST16#..LB198508-198708

BROWN,BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-20050iST16#..LB¥5,700198508-198708

68131GLASS, BACK DOOR

main68131-20150iST16#..LB..USA¥101,000198508-198708

*EHTT,T=4.0,*EHTT,T=4.0

main68131-20160iST16#..LB¥101,000198508-198708

*EHTT,T=4.0,HEAVY *DEF,*EHTT,T=4.0

9010908055

main90109-08055¥370

9015950127

main90159-50127

9046805060

main90468-05060¥90

12 parts on this diagram · 1 diagram in section
