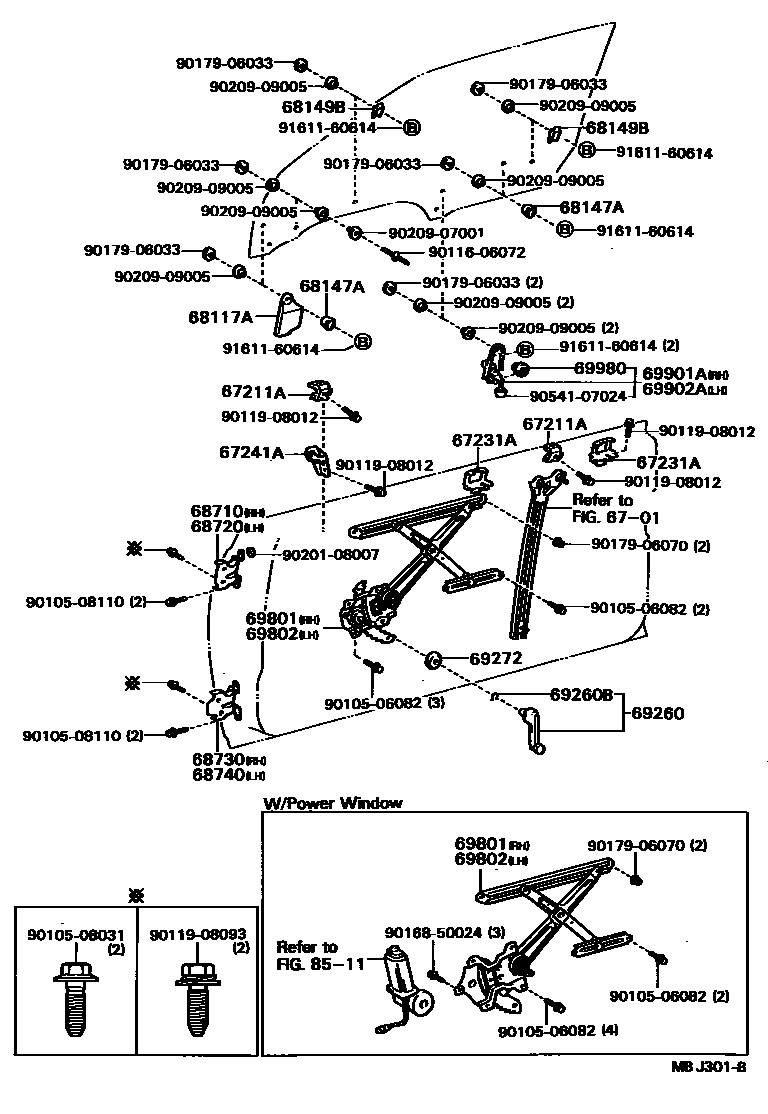

FRONT DOOR WINDOW REGULATOR & HINGE

6701

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-20020iST16#198508-198708

67231ASUPPORT, FRONT DOOR TRIM

main67231-20030iST16#198508-198708

67241ASTABILIZER, DOOR GLASS, INNER

main67241-14010iST16#198508-198708

sub67241-14011

68117APLATE, FRONT DOOR GLASS

main68117-20020iST16#198508-198708

RH

main68118-20020iST16#198508-198708

LH

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20020iST16#198508-198708

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-20010iST16#198508-198708

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20080iST162..CVT198608-198708

main68710-22050iST16#..CP,LB198508-198708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20070iST162..CVT198608-198708

main68720-22040iST16#..CP,LB198508-198708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14040iST16#..CP,LB198508-198708

sub68730-14060

main68730-20090iST162..CVT198608-198708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14040iST16#..CP,LB198508-198708

sub68740-14060

main68740-20090iST162..CVT198608-198708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-04iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub69260-22030

main69260-22030-05iST16#..CP,LB198508-198708

BEIGE,BEIGE,TRIM4#

sub69260-22030

main69260-22030-12iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub69260-22030

main69260-22030-13iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iST16#198508-198708

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iST16#198508-198708

NATURAL WHITE

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20140iST16#..GT,GTS198508-198708

W/*PW

main69810-20150iST16#198508-198708

W/O *PW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20140iST16#..GT,GTS198508-198708

W/*PW

main69820-20150iST16#198508-198708

W/O *PW

69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20080iST16#198508-198708

69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH

main69902-20040iST16#198508-198708

69980ROLLER ASSY, FRONT DOOR GLASS GUIDE

main69981-14020iST16#198508-198708

8511

9010506082

main90105-06082

9010508031

main90105-08031

9010508110

main90105-08110

9011606072

main90116-06072

9011908012

main90119-08012

9011908093

main90119-08093

9016850024

main90168-50024

9017906033

main90179-06033

9017906070

main90179-06070

9020108007

main90201-08007

9020907001

main90209-07001

9020909005

main90209-09005

9054107024

main90541-07024

9161160614

main91611-60614

34 parts on this diagram · 1 diagram in section
