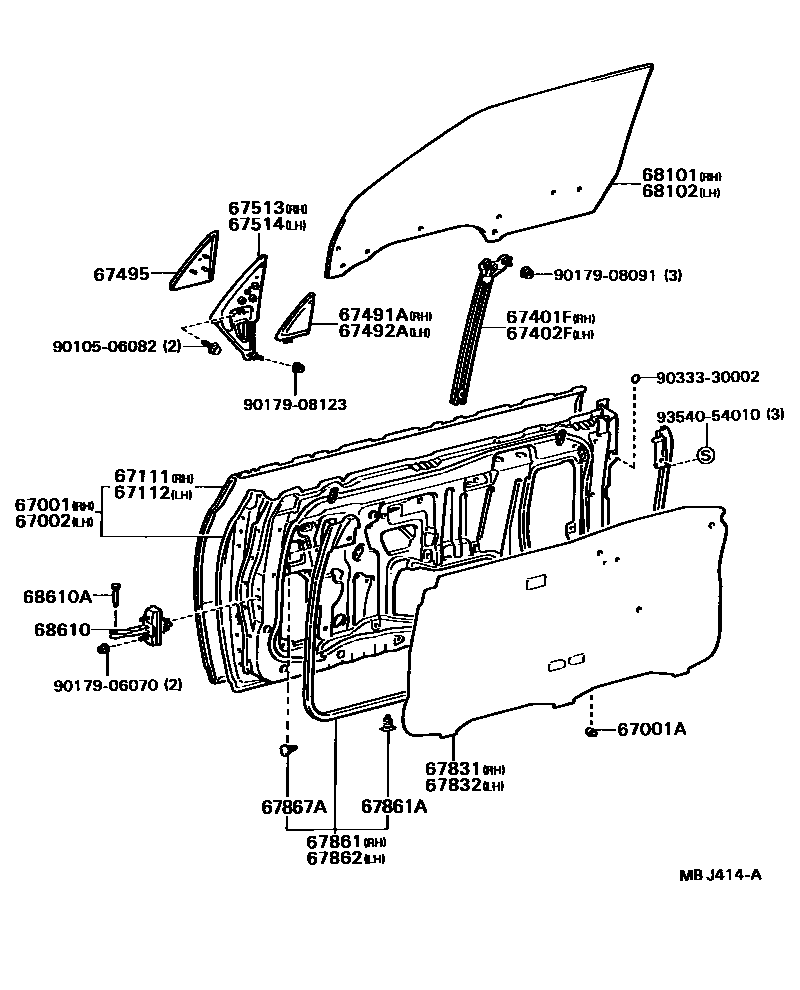

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
sub67002-20631
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
W/O DOOR MIRROR
67513BRACKET, FRONT DOOR MIRROR, RH
W/O DOOR MIRROR
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0,*TT,T=5.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0,*TT,T=5.0
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9010506082
main90105-06082
9017906070
main90179-06070
9017908091
main90179-08091
9017908123
main90179-08123
9033330002
main90333-30002
9354054010
main93540-54010
28 parts on this diagram · 2 diagrams in section
