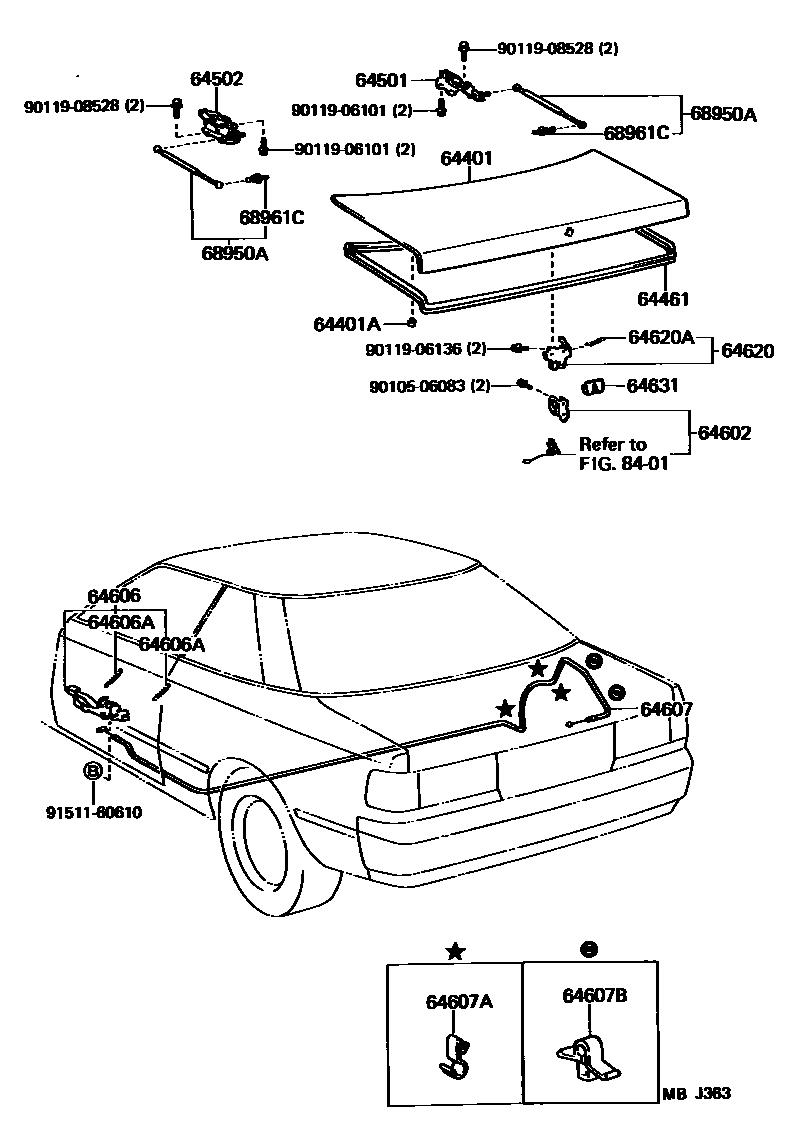

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B070iST162..CP..GTS¥30,600198508-198708

main64401-2B220iST16#..CP..(GT,ST)¥30,600198508-198708

main64401-2B240iST162..CVT¥30,600198608-198708

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09043iST16#..CP,CVT¥260198508-198708

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20230iST16#..CP,CVT¥5,300198508-198708

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20120iST16#..CP,CVT¥2,730198508-198708

sub64510-20121¥2,730

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20110iST16#..CP,CVT¥2,730198508-198708

sub64520-20111¥2,730

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20040iST16#..CP..(GT,GTS)¥1,840198508-198708

main64621-20050iST16#..ST¥740198508-198708

main64621-20070iST162..CVT¥1,030198608-198708

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20060iST16#..CP,CVT¥4,550198508-198708

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iST16#..CP,CVT¥200198508-198708

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20200iST16#..CP,CVT¥2,680198508-198708

sub64607-12230¥3,510

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iST16#..CP,CVT¥140198508-198708

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209iST16#..CP,CVT¥110198508-198708

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20090iST16#..CP¥2,760198508-198708

main64610-20100iST162..CVT¥2,740198608-198708

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iST16#..CP,CVT¥390198508-198708

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iST16#..CP,CVT¥640198508-198708

68950ASTAY ASSY, LUGGAGE DOOR

main68950-29415iST16#..(CP,CVT)..(GT,ST)¥7,100198508-198708

main68950-29425iST162..CP..GTS¥7,100198508-198708

68961CBOLT, LUGGAGE DOOR STAY

main68961-20050iST16#..CP¥410198508-198510

sub68961-20051¥430

main68961-20051iST16#..CP,CVT¥430198510-198708

8401

9010506083

main90105-06083¥120

9011906101

main90119-06101¥130

9011906136

main90119-06136¥130

9011908528

main90119-08528¥170

9151160610

main91511-60610¥120

22 parts on this diagram · 1 diagram in section
