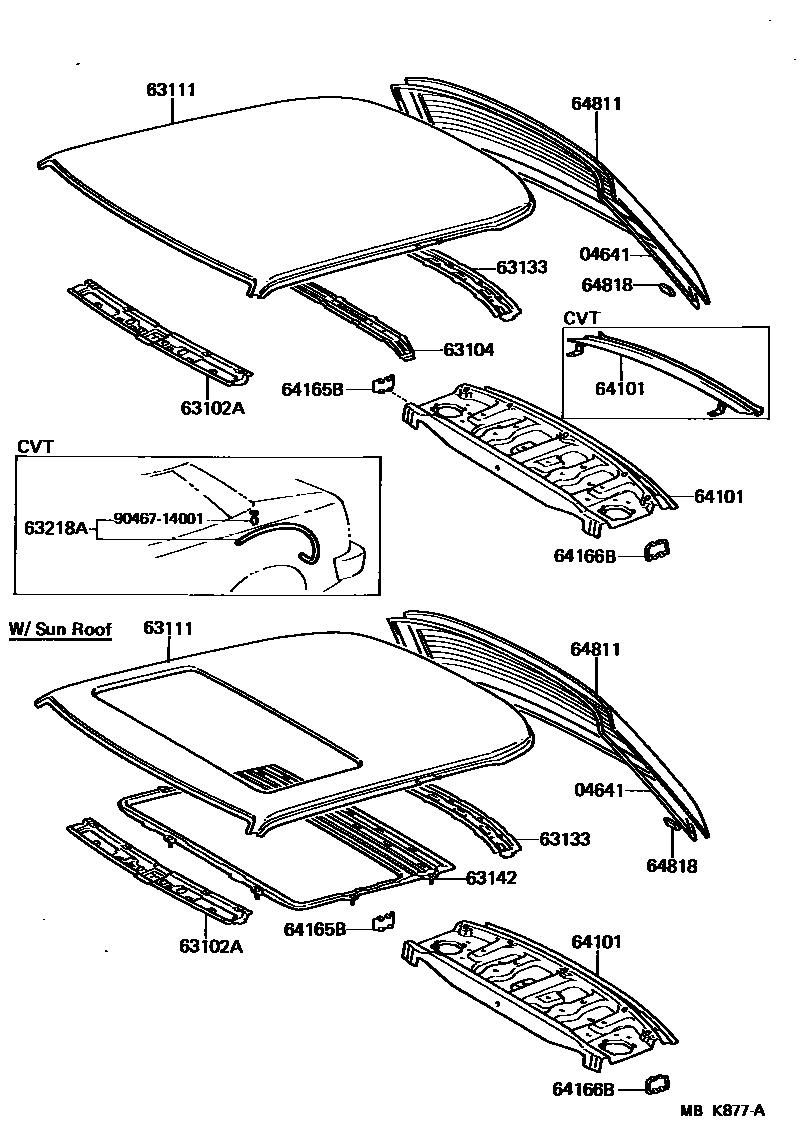

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iST16#..CP¥2,390198508-198708

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090iST16#..CP,LB¥4,020198508-198708

main63132-20110iST162..CVT¥3,300198608-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-20060iST16#¥2,170198508-198708

63111PANEL, ROOF

main63111-20220iST16#..CP,CVT¥34,600198508-198708

W/O SUN ROOF

main63111-20230iST16#..CP¥34,600198508-198708

W/SUN ROOF

main63111-20240iST16#..LB¥31,300198508-198708

W/O SUN ROOF

main63111-20250iST16#..LB¥31,300198508-198708

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-20120iST16#..CP,CVT¥2,700198508-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040iST16#..CP,LB¥16,800198508-198708

63218AHOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

main63249-20060iST16#..CP¥850198508-198708

RR RH

main63249-20070iST16#..LB¥1,740198508-198708

RR RH

main63249-20080iST16#..CP,LB¥1,220198508-198708

FR

sub63249-16190¥1,460

main63249-20090iST16#..CP¥1,740198508-198708

RR LH

main63249-20100iST16#..LB¥1,180198508-198708

RR LH

main63249-20140iST162..CVT¥1,060198608-198708

L=760

64101PANEL SUB-ASSY, UPPER BACK

main64101-20230iST16#..ST198508-198708

main64101-20250iST16#..CP..(GT,GTS)198508-198708

main64101-20280iST162..CVT¥19,800198608-198708

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20030iST16#..CP¥510198508-198708

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20020iST16#..CP¥510198508-198708

64811GLASS, BACK WINDOW

main64801-20110iST16#..CP..USA¥72,800198508-198708

*EHTT,T=4.0,*EHTT,T=4.0

main64801-20120iST16#..CP¥72,800198508-198708

*EHTT,T=4.0,HEAVY *DEF,*EHTT,T=4.0

64818SPACER, BACK WINDOW GLASS

main64818-30030iST16#..CP198508-198708

9046714001

main90467-14001¥70

13 parts on this diagram · 3 diagrams in section
