SIDE MEMBER
58791ACARRIER, JACK
58792BSUPPORT, JACK CARRIER
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
W/ANTENNA HOLE
W/SPOILER
61613BPANEL, QUARTER, INNER FRONT RH
61614BPANEL, QUARTER, INNER FRONT LH
61625DEXTENSION, QUARTER PANEL, UPPER FRONT RH
61626DEXTENSION, QUARTER PANEL, UPPER FRONT LH
61627CREINFORCEMENT, QUARTER INNER PANEL, RH
61628CREINFORCEMENT, QUARTER INNER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61677REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61678REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61755ARETAINER, DECK SIDE TRIM, UPPER RH
61756ARETAINER, DECK SIDE TRIM, UPPER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
62621DPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62622DPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH
64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH
67812APAD, QUARTER PANEL SILENCER
9011906101
9033330002
9095001006
9095001025
9095001248
9095001266
9095001353

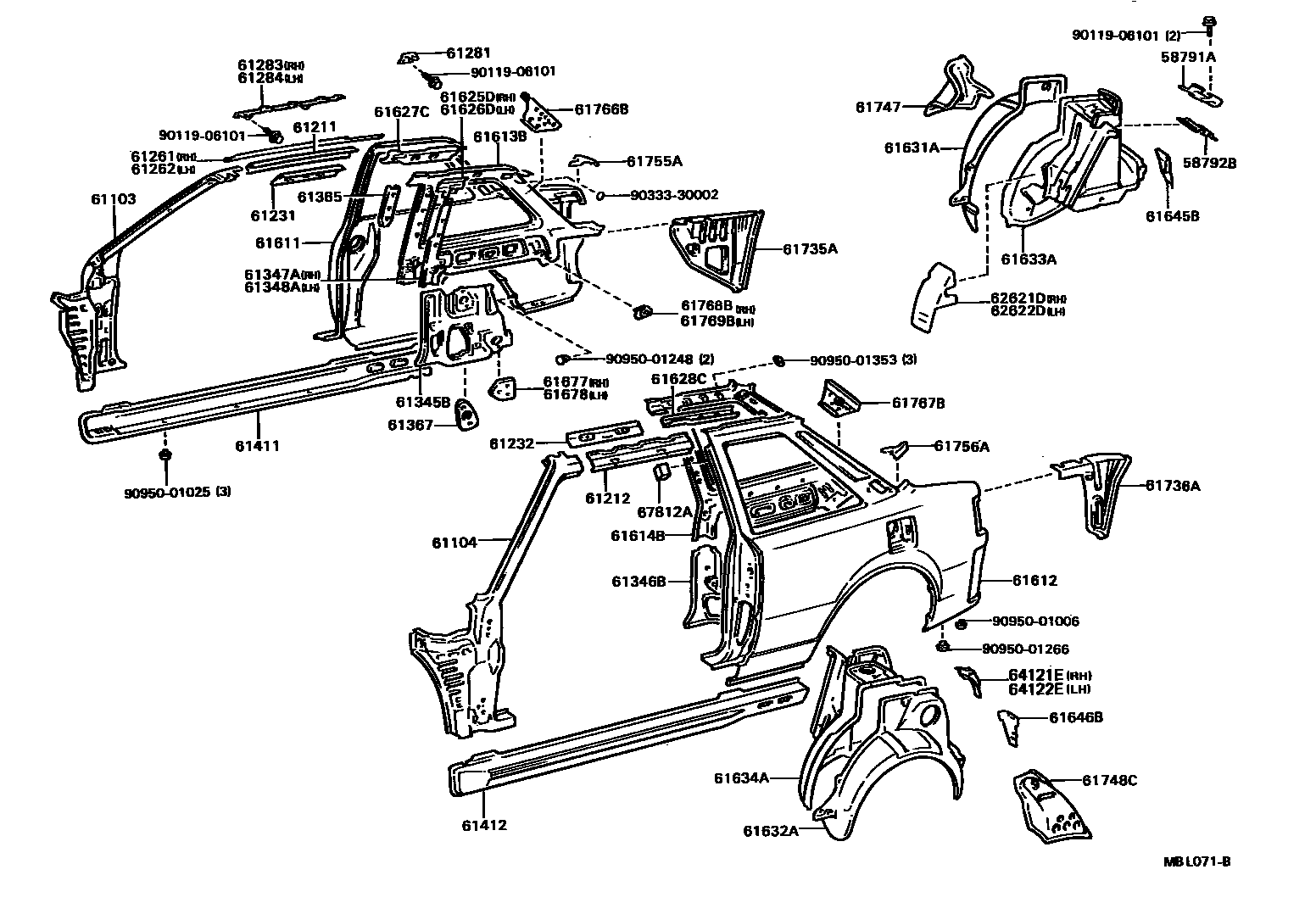

59 parts on this diagram · 2 diagrams in section
