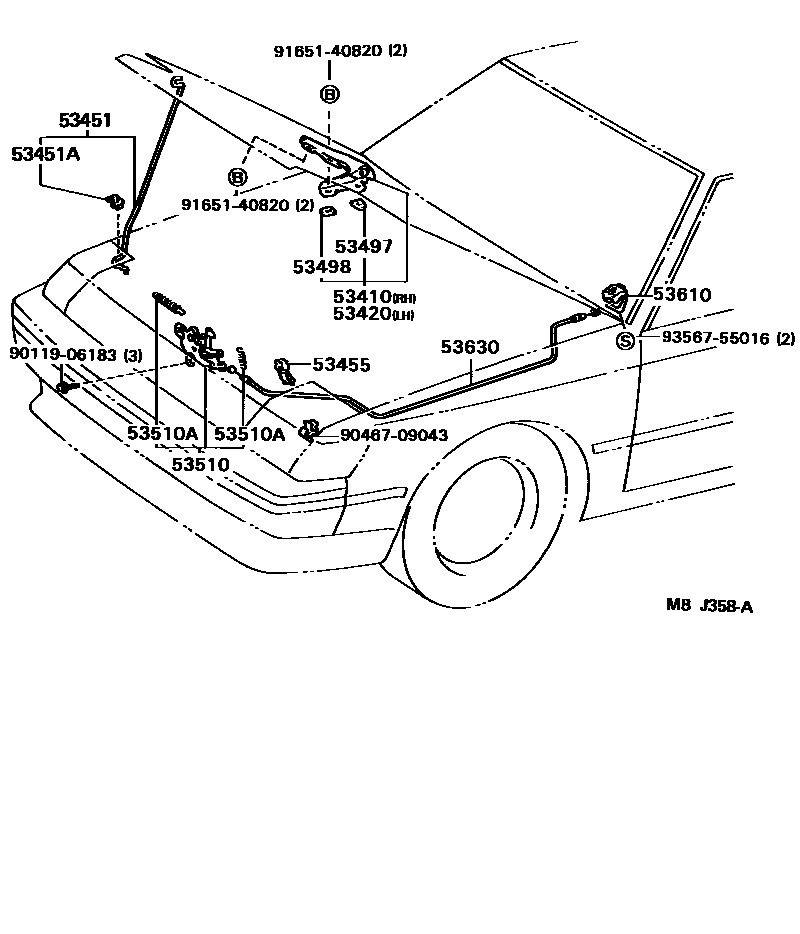

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32010iST16#198508-198708

sub53410-32011

53420HINGE ASSY, HOOD, LH

main53420-32010iST16#198508-198708

sub53420-32011

53451ROD, HOOD SUPPORT

main53451-20030iST16#198508-198708

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-01340iST16#198508-198708

53455CLAMP, HOOD SUPPORT ROD

main53455-20010iST16#198508-198708

53497PAD, HOOD HINGE, NO.1

main53497-32030iST16#198508-198708

sub53497-32031

53498PAD, HOOD HINGE, NO.2

main53498-12010iST16#198508-198708

sub53498-12011

53510LOCK ASSY, HOOD

main53510-20190iST16#198508-198708

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iST16#198508-198708

WD=0.9,WD=0.9,CW=26.5

main90506-20008iST16#198508-198708

WD=2.0,CW=17,WD=2.0,CW=17

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-20060-03iST16#198508-198708

GRAY,GRAY,TRIM1#

sub53601-20060

main53601-20060-05iST16#..CP,LB198508-198708

BEIGE,BEIGE,TRIM4#

sub53601-20060

main53601-20060-22iST16#..CP,LB198508-198708

RED,RED,TRIM3#

sub53601-20060

main53601-20060-24iST16#..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20160iST16#198508-198708

sub53630-12340

9011906183

main90119-06183

9046709043

main90467-09043

9165140820

main91651-40820

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section
