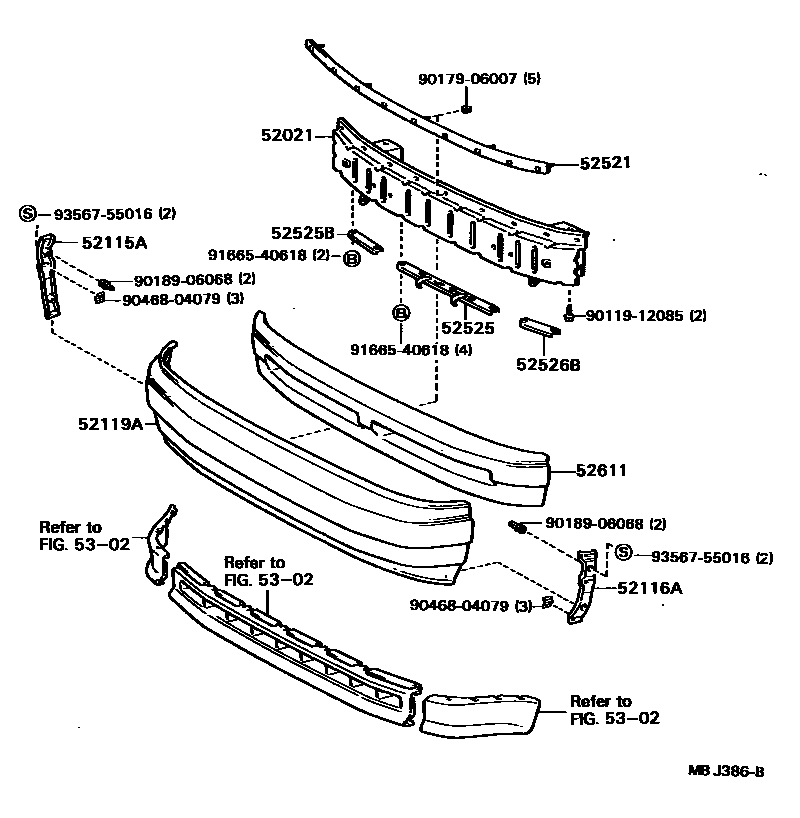

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52525BRETAINER, FRONT BUMPER, LOWER SIDE RH
52526BRETAINER, FRONT BUMPER, LOWER SIDE LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
9011912085
main90119-12085
9017906007
main90179-06007
9018906068
main90189-06068
9046804079
main90468-04079
9166540618
main91665-40618
9356755016
main93567-55016
16 parts on this diagram · 1 diagram in section
