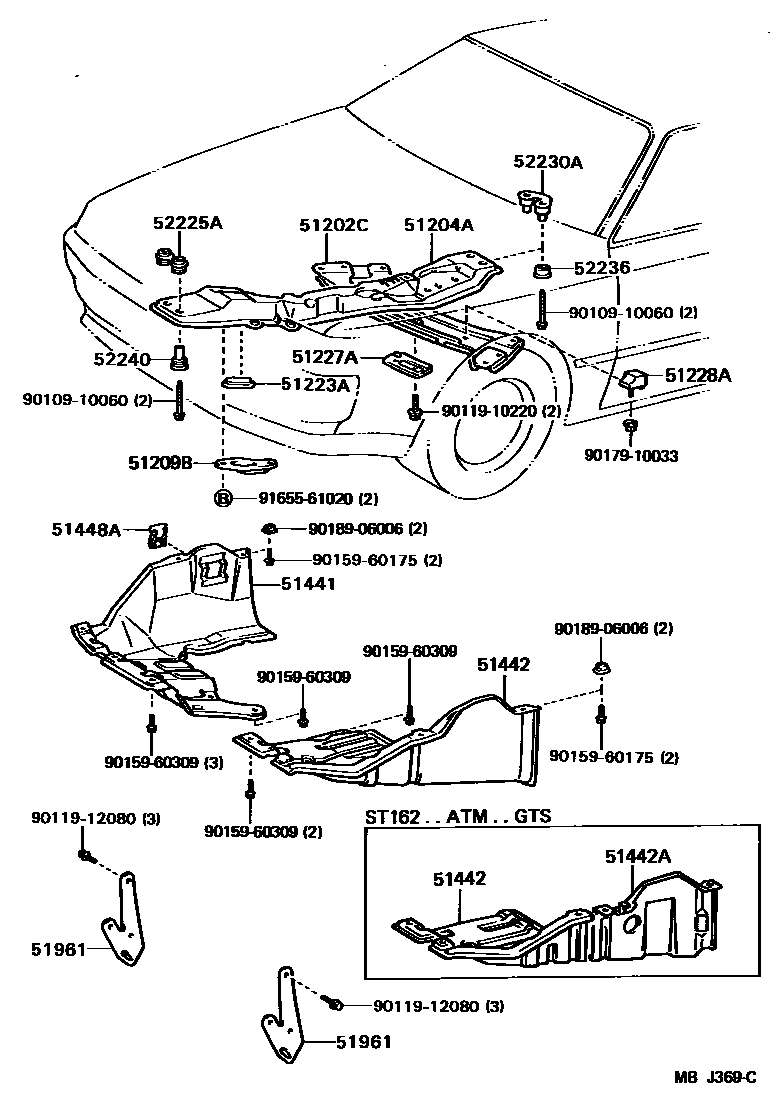

SUSPENSION CROSSMEMBER & UNDER COVER

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-20010iST16#198508-198708

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20030iST16#198508-198708

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iST16#198508-198708

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iST16#198508-198708

sub51223-20030

51227AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH

main51227-20010iST162..GTS198508-198708

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20010iST162..GTS198508-198708

51441COVER, ENGINE UNDER, NO.1

main51441-20120iST16#198508-198708

51442COVER, ENGINE UNDER, NO.2

main51442-20040iST16#..5F198508-198708

main51442-20050iST16#..4FC..(GT,ST)198508-198708

main51442-20080iST162..4FC..GTS198508-198708

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51443-20030iST162..4FC..GTS198508-198708

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iST16#198508-198708

51961HOOK, NO.1

main51963-20070iST16#198508-198708

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20030iST16#198508-198708

sub52225-20050

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20030iST16#198508-198708

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20030iST16#198508-198708

sub52236-20050

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20030iST16#198508-198708

sub52240-20050

9010910060

main90109-10060

9011910220

main90119-10220

9011912080

main90119-12080

9015960175

main90159-60175

9015960309

main90159-60309

9017910033

main90179-10033

9018906006

main90189-06006

9165561020

main91655-61020

23 parts on this diagram · 1 diagram in section
