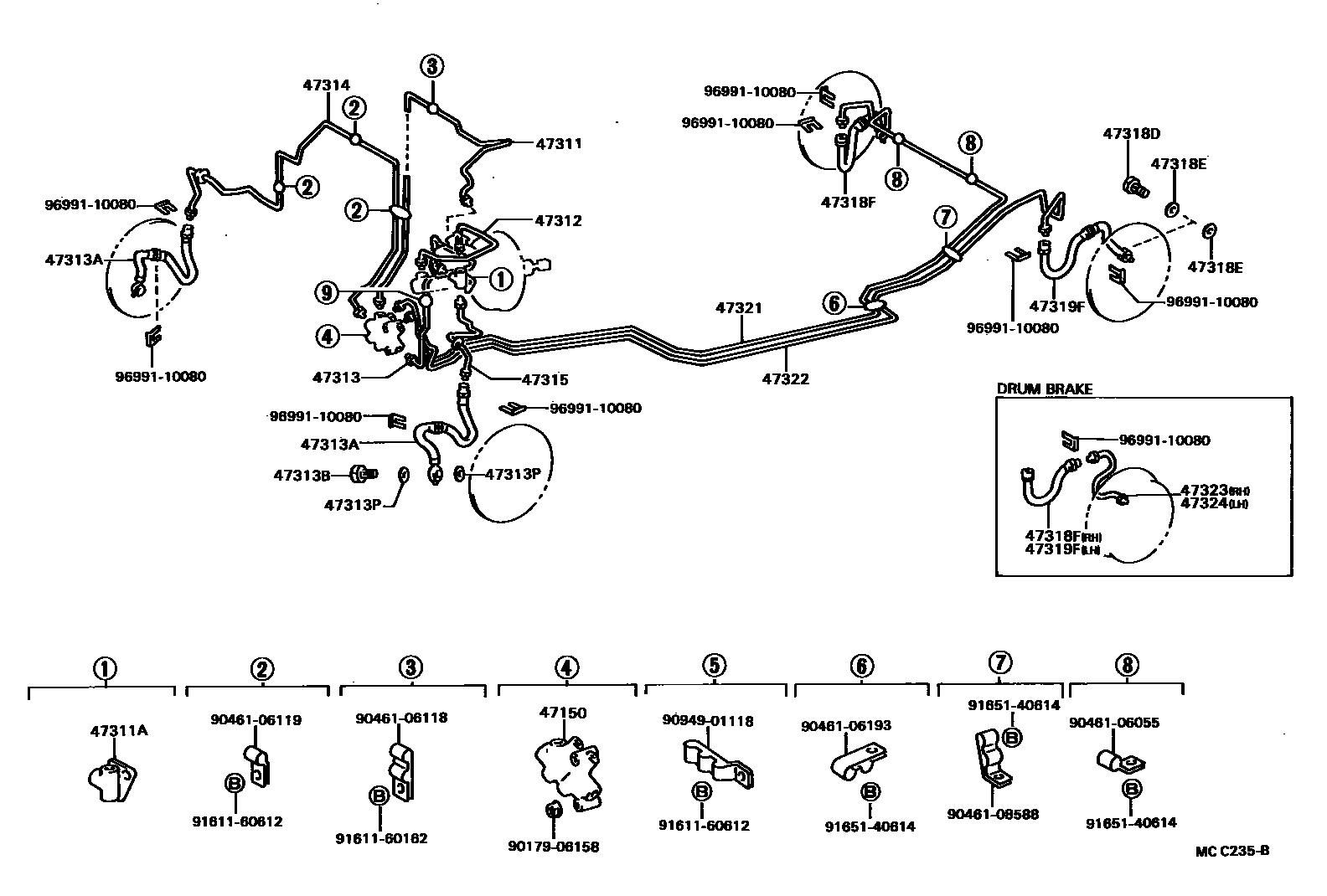

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-12050iST162..CVT198608-198708

sub47150-12230

main47150-12060iST16#..(CP,LB)..(GT,ST)198508-198702

sub47150-12270

main47150-20130iST162..GTS198508-198708

sub47150-12240

47311TUBE, FRONT BRAKE, NO.1

main47311-20430iST16#198508-198708

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10182iST16#198508-198708

47312TUBE, FRONT BRAKE, NO.2

main47312-20150iST16#198508-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-20260iST16#198508-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02455iST16#198508-198708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iST16#198508-198708

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iST16#198508-198708

47314TUBE, FRONT BRAKE, NO.4

main47314-20200iST16#198508-198708

47315TUBE, FRONT BRAKE, NO.5

main47315-20340iST16#198508-198708

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iST162..GTS198508-198708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iST162..GTS198508-198708

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02472iST16#..GT,ST198508-198708

main90947-02473iST162..GTS198508-198708

sub90947-02941

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02472iST16#..GT,ST198508-198708

main90947-02473iST162..GTS198508-198708

sub90947-02941

47321TUBE, REAR BRAKE, NO.1

main47321-20130iST16#198508-198708

47322TUBE, REAR BRAKE, NO.2

main47322-20250iST16#198508-198708

47323TUBE, REAR BRAKE, NO.3

main47323-20060iST16#..GT,ST198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-20060iST16#..GT,ST198508-198708

9017906158

main90179-06158

9046106055

main90461-06055

9046106118

main90461-06118

9046106119

main90461-06119

9046106193

main90461-06193

9046108588

main90461-08588

9094901118

main90949-01118

9161160162

main91611-60162

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

29 parts on this diagram · 1 diagram in section
