BRAKE BOOSTER & VACUUM TUBE

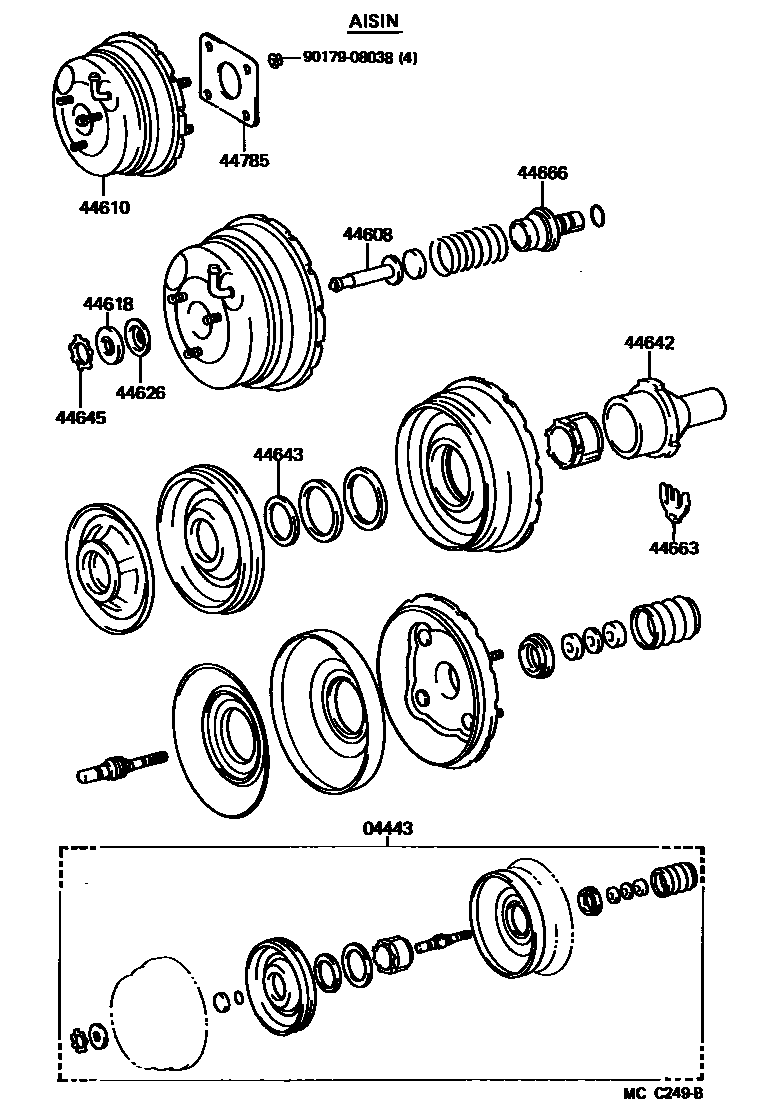

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-20440i198508-198708

AISIN

main04443-20450i198508-198708

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800i198508-198708

AISIN

main44608-20810i198508-198708

JKC

44610BOOSTER ASSY, BRAKE

main44610-20800i198508-198708

44618SEAL, BOOSTER BODY

main44621-14030i198508-198708

44626RETAINER, BOOSTER ROD CUP

main44626-60010i198508-198708

44642PISTON, BRAKE BOOSTER

main44642-20800i198508-198708

44643RETAINER, DIAPHRAGM

main44643-20800i198508-198708

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010i198508-198708

AISHIN

main44645-10080i198508-198708

JKC

44663KEY, VALVE STOPPER

main44635-20800i198508-198708

44666CASE, REACTION DISC

main44657-20800i198508-198708

44785GASKET, BRAKE BOOSTER

main44785-32010i198508-198708

9017908038

main90179-08038

12 parts on this diagram · 3 diagrams in section
