BRAKE MASTER CYLINDER

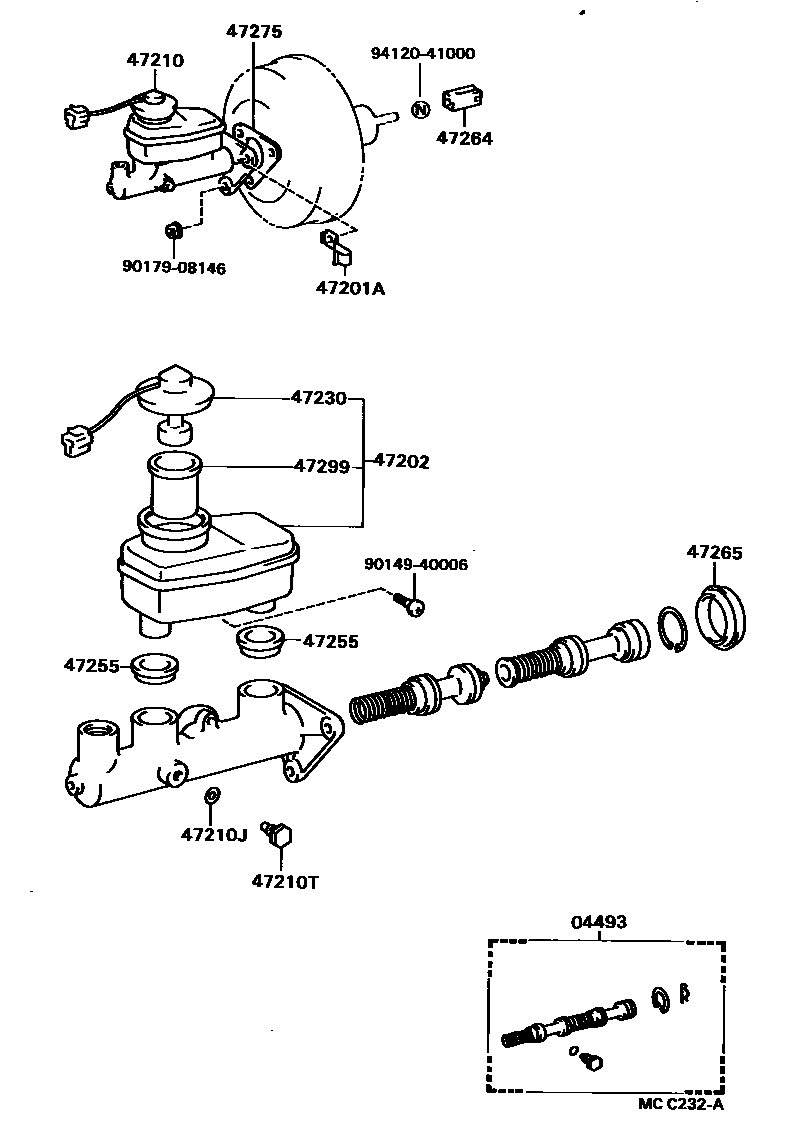

Parts diagram

04493CYLINDER KIT, BRAKE MASTER

main04493-20130i198508-198708

47201ACLAMP(FOR BRAKE MASTER CYLINDER)

main90461-08202i198508-198708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20290i198508-198708

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-20400i198508-198708

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104i198508-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077i198508-198708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12090i198508-198708

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010i198508-198708

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20040i198508-198708

47265BOOT, MASTER CYLINDER

main47265-20050i198508-198708

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010i198508-198708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010i198508-198708

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
