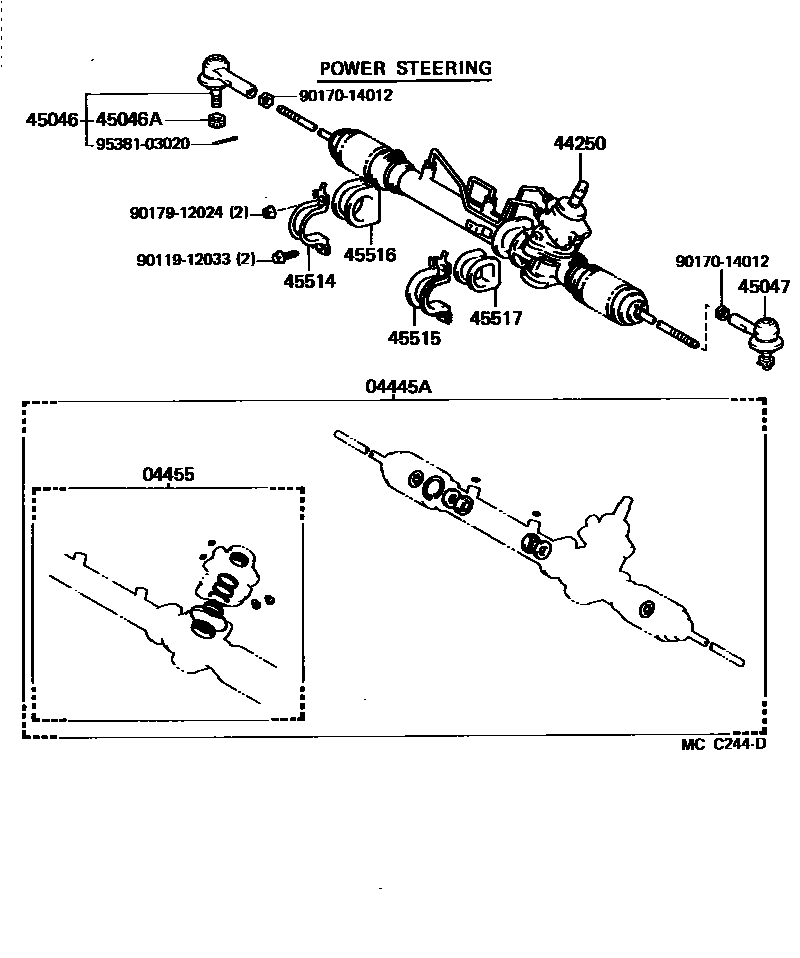

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iST16#198508-198708

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iST16#198508-198708

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20100iST16#198508-198708

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iST16#198508-198708

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iST16#198508-198708

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iST16#198508-198708

45514BRACKET, STEERING RACK HOUSING, NO.1

main45506-12010iST161..USA198508-198608

main45515-20030iST161..CND198508-198708

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-20010iST16#198508-198708

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-12060iST16#198508-198708

45517GROMMET, STEERING RACK HOUSING, NO.2

main45516-20010iST16#198508-198708

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
