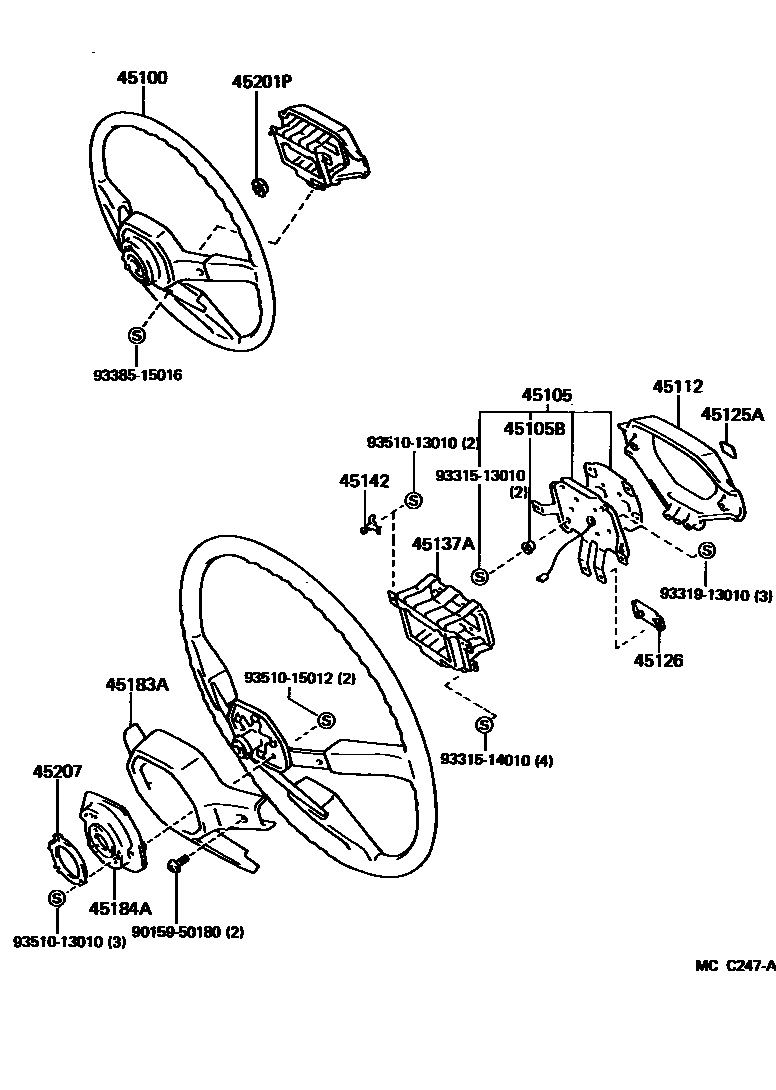

STEERING WHEEL
45100WHEEL ASSY, STEERING
W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45100-20340
SHADOW GRAY,W/CRUISE CONTROL,SHADOW GRAY,TRIM1#
sub45100-20360
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
W/CRUISE CONTROL
W/CRUISE CONTROL
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45112PAD, STEERING WHEEL
45125AMARK, HORN
45126PLATE, STEERING WHEEL PAD SET
45137APLATE, HORN BUTTON CONTACT, NO.2
45142SEAT, HORN BUTTON CONTACT, NO.1
45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1
W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45183-20030
W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE,TRIM8#
sub45183-20030
45184ACOVER, STEERING WHEEL BOSS, LOWER NO.2
W/CRUISE CONTROL
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9015950180
main90159-50180
9331513010
main93315-13010
9331514010
main93315-14010
9331913010
main93319-13010
9338515016
main93385-15016
9351013010
main93510-13010
9351015012
main93510-15012
19 parts on this diagram · 5 diagrams in section
