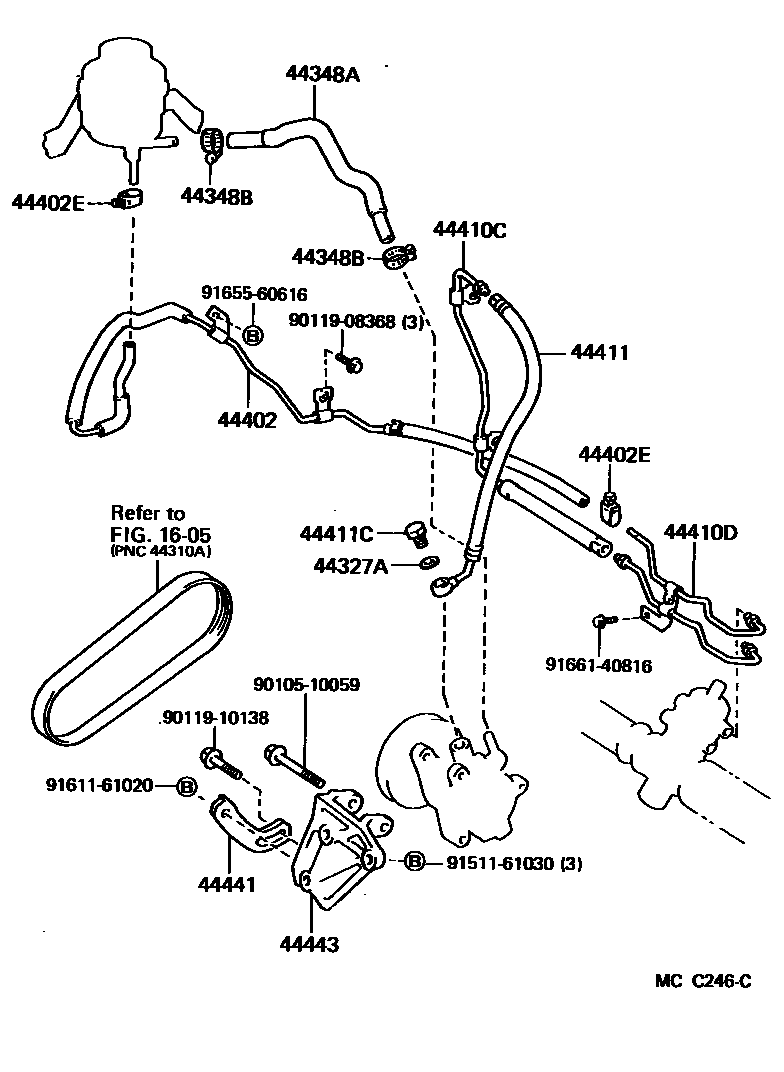

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST16#198508-198708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20110iST16#198508-198708

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iST16#198508-198704

main90467-21005iST162198704-198708

sub90467-21010

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20110iST161198508-198608

main44402-20140iST162..GTS198508-198704

sub44402-20180

main44402-20180iST162..GT,ST198608-198708

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iST16#198508-198605

GEAR SIDE

main90467-16008iST16#198605-198708

sub90467-16019

main90467-16008iST16#198508-198605

RESERVOIE SIDE

sub90467-16019

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20270iST16#198508-198708

sub44410-20330

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-20260iST16#198508-198708

44411HOSE, PRESSURE FEED

main44411-20170iST16#198508-198708

sub44411-20171

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iST16#198508-198708

44441BRACKET, PUMP, FRONT

main44441-32010iST16#198508-198708

44443BRACKET, PUMP

main44443-20050iST162198508-198708

main44443-20060iST161198508-198608

sub44443-20050

9010510059

main90105-10059

9011908368

main90119-08368

9011910138

main90119-10138

9151161030

main91511-61030

9161161020

main91611-61020

9165560616

main91655-60616

9166140816

main91661-40816

19 parts on this diagram · 2 diagrams in section
