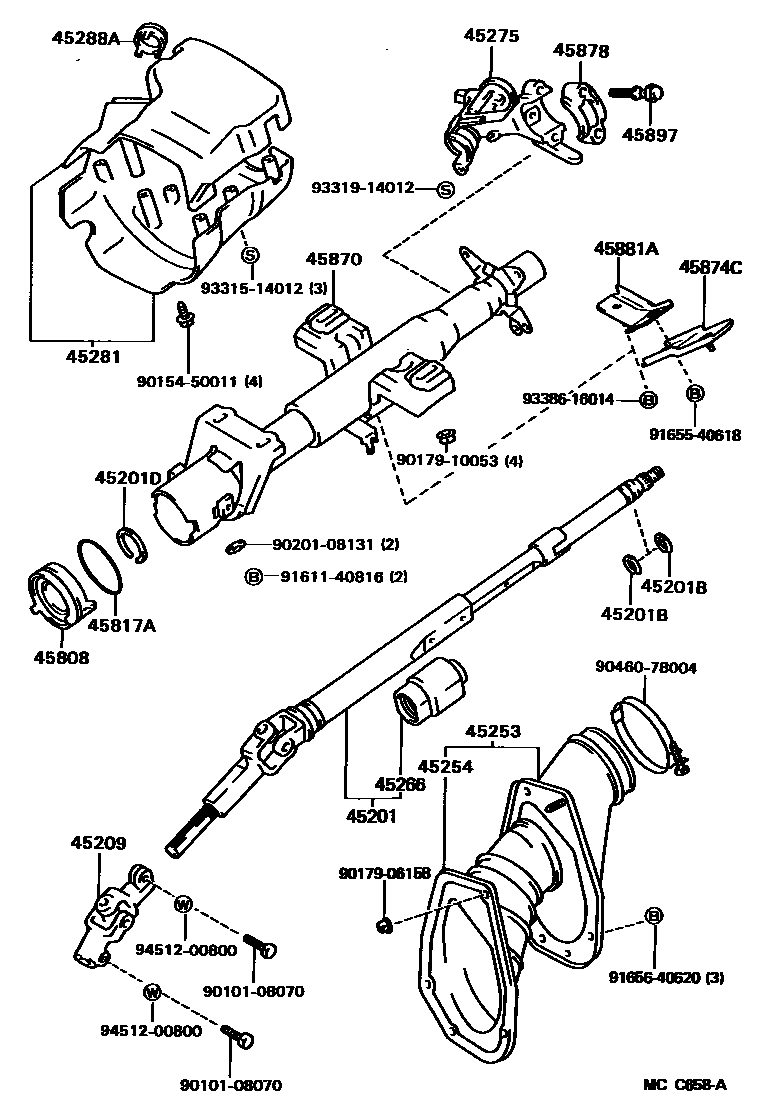

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
W/TILT SEERING
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-16010
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45275BRACKET, STEERING COLUMN, UPPER
W/TILT STEERING
W/TILT & TELESCOPIC STEERING
45281HOUSING, STEERING COLUMN
W/TILT STEERING,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45287-20904
W/TILT STEERING,DEEP BLUE,DEEP BLUE,TRIM8#
sub45287-20904
W/TILT & TELESCOPIC,RED,RED,TRIM3#
sub45287-20906
W/TILT&TELESCOPIC,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45287-20906
W/TILT&TELESCOPIC,DEEP BLUE,DEEP BLUE,TRIM8#
sub45287-20906
W/TILT&TELESCOPIC,BROWN,BROWN,TRIM4#
sub45287-20906
45288ASPACER, COLUMN COVER
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45874CPROTECTOR, STEERING COLUMN, NO.1
45881APROTECTOR, STEERING COLUMN, NO.2
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9015450011
main90154-50011
9017906158
main90179-06158
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9165540618
main91655-40618
9165640620
main91656-40620
9331514012
main93315-14012
9331914012
main93319-14012
9338616014
main93386-16014
9451200800
main94512-00800
31 parts on this diagram · 3 diagrams in section
