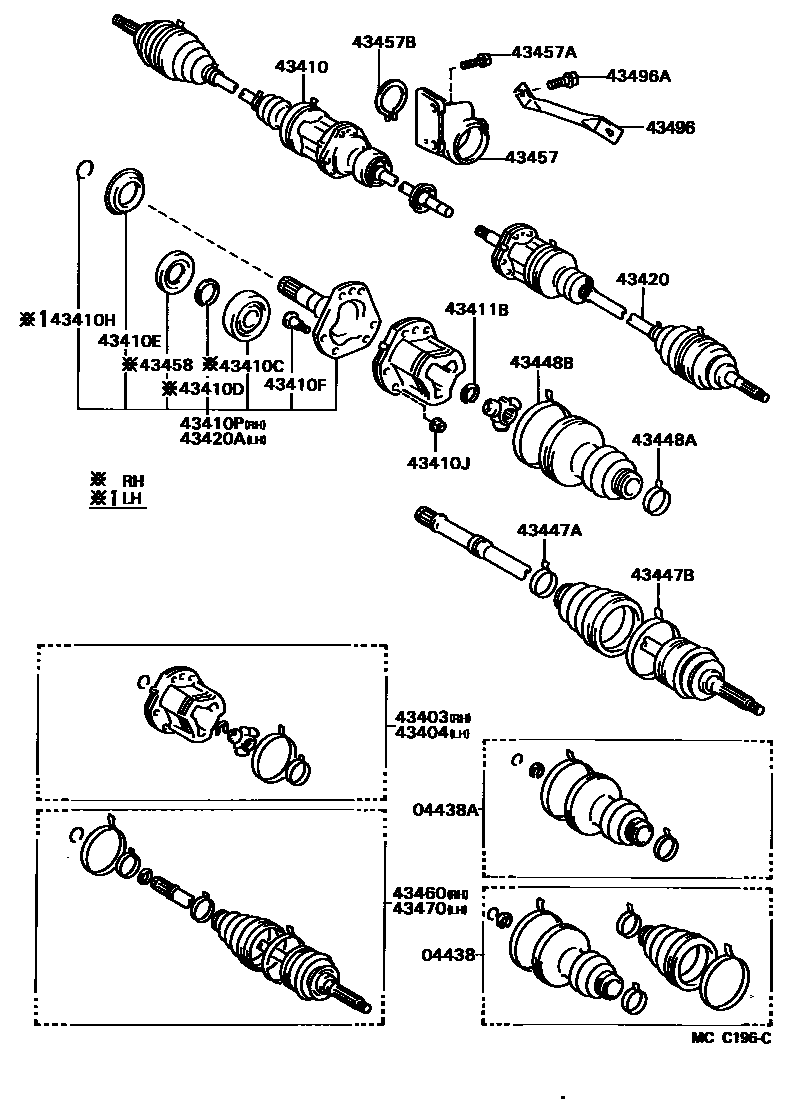

FRONT DRIVE SHAFT
43403JOINT SET, FRONT AXLE INBOARD, RH
43404JOINT SET, FRONT AXLE INBOARD, LH
43410CBEARING (FOR FRONT DRIVE SHAFT)
sub90363-36001
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)
LH
43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)
43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
43410JNUT (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43420ASHAFT ASSY, FRONT DRIVE, LH
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3,*10-1.25PX14.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43496STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1
43496ABOLT (FOR DRIVE SHAFT BEARING BRACKET STAY)
sub91512-81022
27 parts on this diagram · 2 diagrams in section
