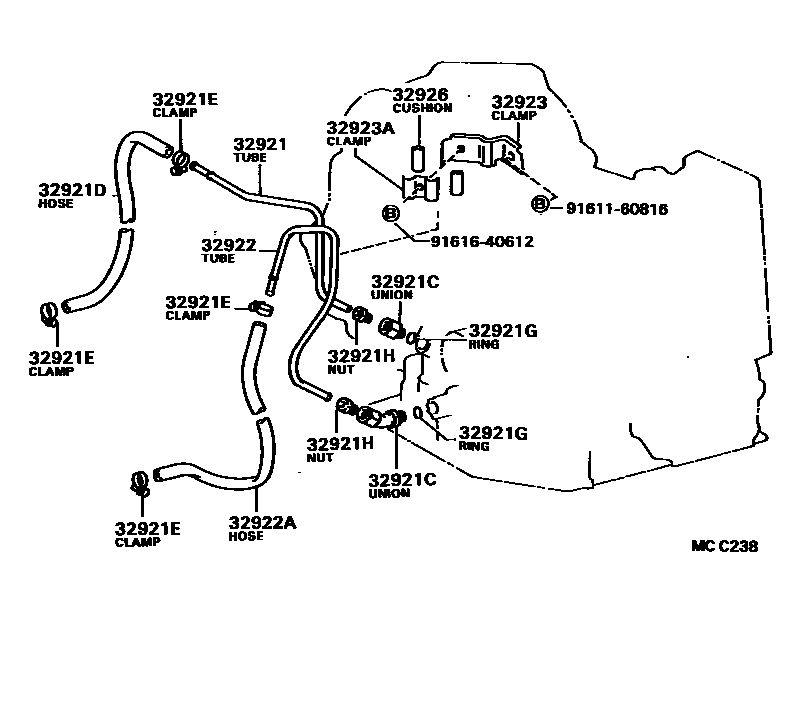

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-20260iST162..4FC198508-198708

main32921-32011iST161..4FC198508-198608

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iST162..4FC198609-198708

OUTLET

main90404-14007iST16#..4FC198508-198708

INLET

main90407-14004iST16#..4FC198508-198609

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-20080iST162..4FC198508-198708

main90445-16030iST161..4FC198508-198608

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iST16#..4FC198508-198708

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iST16#..4FC198508-198708

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iST16#..4FC198508-198708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20200iST161..4FC198508-198608

main32922-20260iST162..4FC198508-198609

main32922-32040iST162..4FC198609-198708

sub32922-32041

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16016iST161..4FC198508-198608

sub90445-16030

main90445-16026iST162..4FC198508-198708

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20090iST16#..4FC198508-198708

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12085iST16#..4FC198508-198708

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iST16#..4FC198508-198708

L=25,ID=8

9161160816

main91611-60816

9161640612

main91616-40612

13 parts on this diagram · 1 diagram in section
