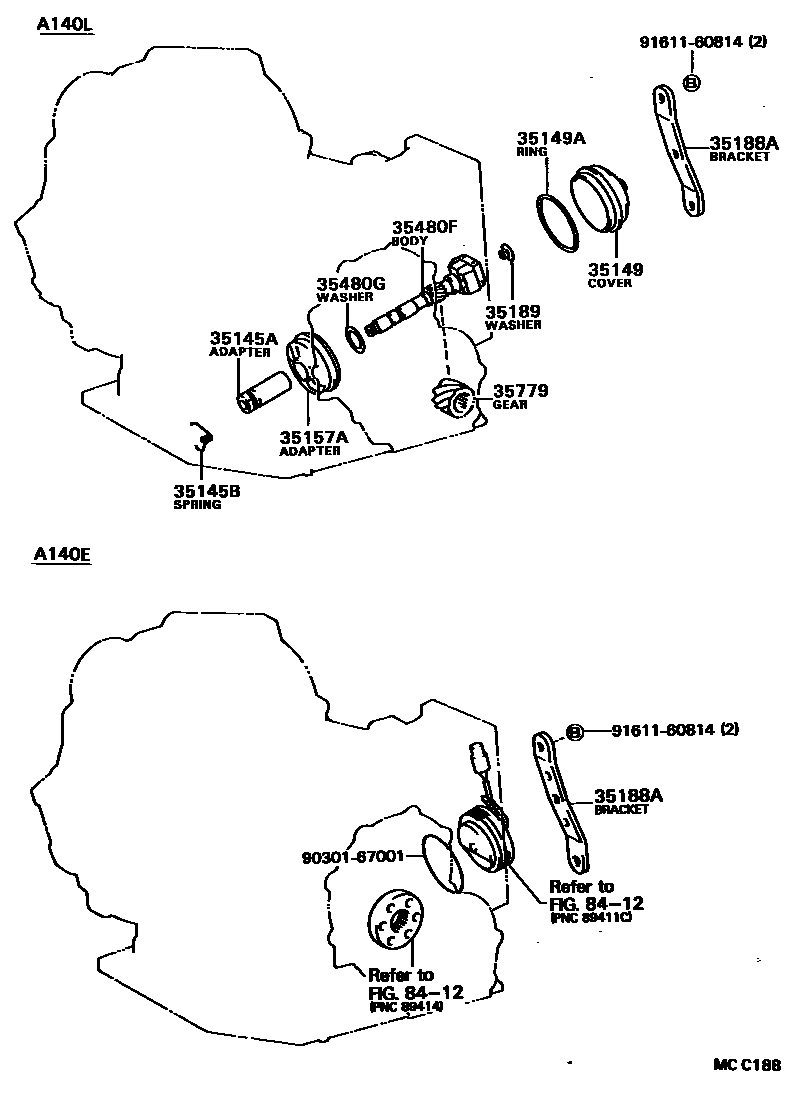

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1 0003 1

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iST16#..4FC..(GT,ST)¥2,550198508-198708

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iST16#..4FC..(GT,ST)¥200198508-198708

35149COVER, GOVERNOR

main35149-32010iST16#..4FC..(GT,ST)¥450198508-198708

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iST16#..4FC..(GT,ST)¥590198508-198708

35157AADAPTER, GOVERNOR BODY

main35157-32011iST16#..4FC..(GT,ST)¥1,810198508-198708

35188ABRACKET, GOVERNOR COVER

main35188-32011iST16#..4FC¥2,740198508-198708

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iST16#..4FC..(GT,ST)¥340198508-198708

sub35189-32011¥350

35480FBODY ASSY, GOVERNOR

main35480-32012iST16#..4FC..(GT,ST)¥13,600198508-198708

sub35480-32013¥11,900

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iST16#..4FC..(GT,ST)¥180198508-198708

35779GEAR, GOVERNOR DRIVE

main35779-32010iST16#..4FC..(GT,ST)¥2,940198508-198708

8412

9030167001

main90301-67001¥590

9161160814

main91611-60814¥100

13 parts on this diagram · 3 diagrams in section
