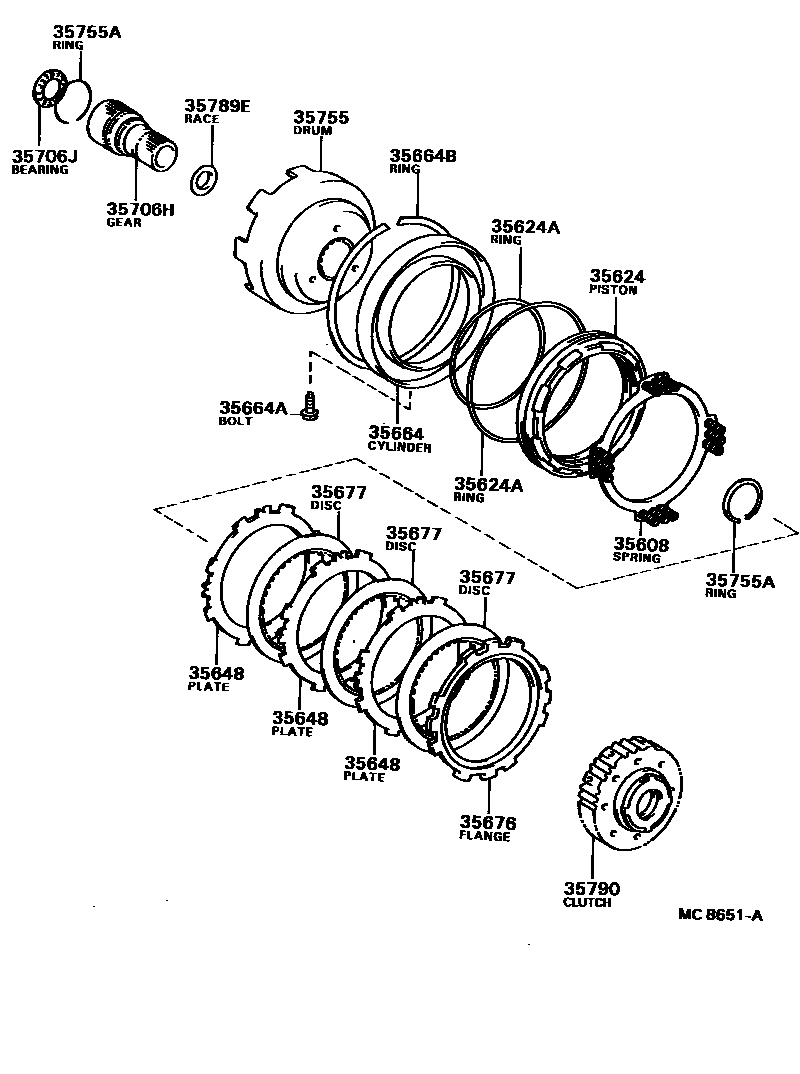

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iST16#..4FC¥1,480198508-198708

35624PISTON, 2ND BRAKE

main35624-32010iST16#..4FC¥3,680198508-198708

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iST16#..4FC¥640198508-198708

INNER

main90301-99023iST16#..4FC¥1,090198508-198708

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iST16#..4FC¥2,000198508-198708

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iST16#..4FC¥5,400198508-198708

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iST16#..4FC¥160198508-198708

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iST16#..4FC¥550198508-198708

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iST16#..4FC¥4,590198508-198708

T=3.5

sub35676-12030¥4,810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-30040iST161..4FC¥2,600198508-198608

sub35677-43010¥2,070

main35677-32050iST162..4FC¥2,080198508-198708

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32012iST16#..4FC¥10,100198508-198708

sub35706-32030¥10,000

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iST16#..4FC¥770198508-198708

35755DRUM, SUN GEAR INPUT

main35755-32020iST16#..4FC¥4,760198508-198708

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iST16#..4FC¥170198508-198708

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-47003iST16#..4FC¥160198508-198708

T=2.3,ID=47.1,WD=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iST16#..4FC¥530198508-198708

35790CLUTCH ASSY, 1 WAY

main35790-32020iST16#..4FC¥10,800198508-198708

sub35790-32050¥10,800

15 parts on this diagram · 1 diagram in section
