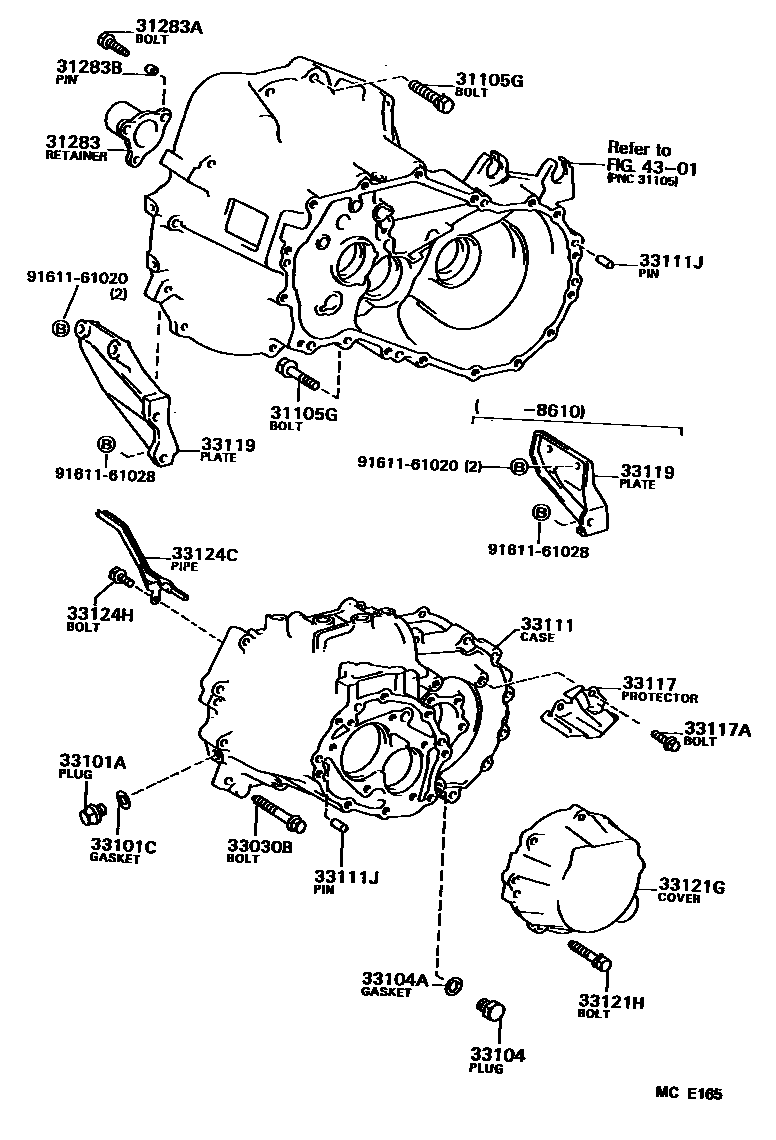

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040i198508-198708

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-10077i198508-198708

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12168i198508-198708

*12-1.25PX55-30,*10-1.25PX55-30

main91511-61035i198610-198708

*10-1.25PX35-30

sub91512-61035

main91611-61040i198508-198610

*10-1.25PX40-30,*10-1.25PX40-30

sub91612-61040

main91651-41022i198607-198708

*10-1.25PX22-22,*10-1.25PX22-17

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010i198508-198708

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023i198508-198708

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002i198508-198708

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042i198508-198708

*8-1.25PX45-27.5

sub90105-08430

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002i198508-198708

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i198508-198708

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i198508-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i198508-198708

33111CASE, MANUAL TRANSMISSION

main33111-32013i198508-198604

sub33111-32014

sub33151-32011

main33111-32014i198604-198708

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i198508-198708

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-32011i198508-198708

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040i198508-198708

sub91641-H0820

33119PLATE, STIFFENER, LH(MTM)

main33119-20070i198508-198610

sub33119-32030

main33119-32020i198608-198708

main33119-32030i198610-198708

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-32011i198508-198708

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089i198508-198708

sub90105-08273

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-32010i198508-198510

sub33124-32011

main33124-32011i198510-198708

33124HBOLT(FOR OIL RECEIVER PIPE)

main91651-60618i198508-198708

4301

9161161020

main91611-61020

9161161028

main91611-61028

21 parts on this diagram · 1 diagram in section
