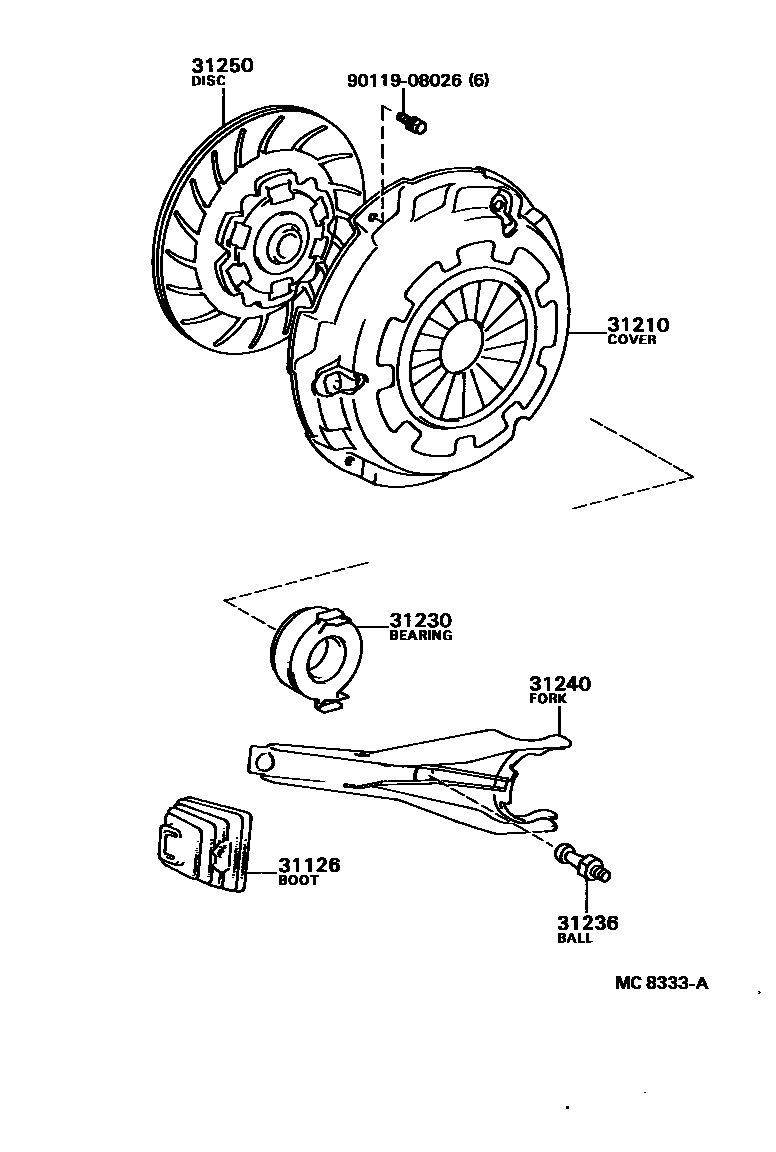

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iST16#..5F198508-198708

31210COVER ASSY, CLUTCH

main31210-32010iST161..5F198508-198608

sub31210-32060

main31210-32040iST162..5F198508-198608

sub31210-32070

main31210-32050iST162..5F..(GT,ST)198608-198708

sub31210-32051

main31210-32070iST162..5F..GTS198608-198708

sub31210-32071

31230BEARING ASSY, CLUTCH RELEASE

main31230-32010iST16#..5F198508-198610

KOYO

sub31230-32020

main31230-32020iST162..5F198610-198708

NACHI

sub31230-32100

31236BALL, RELEASE FORK

main31236-30030iST16#..5F198508-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-32010iST16#..5F198508-198708

31250DISC ASSY, CLUTCH

main31250-32032iST16#..5F..(GT,ST)198508-198708

sub31250-32041

main31250-32041iST162..5F..GTS198508-198708

sub31250-32042

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
