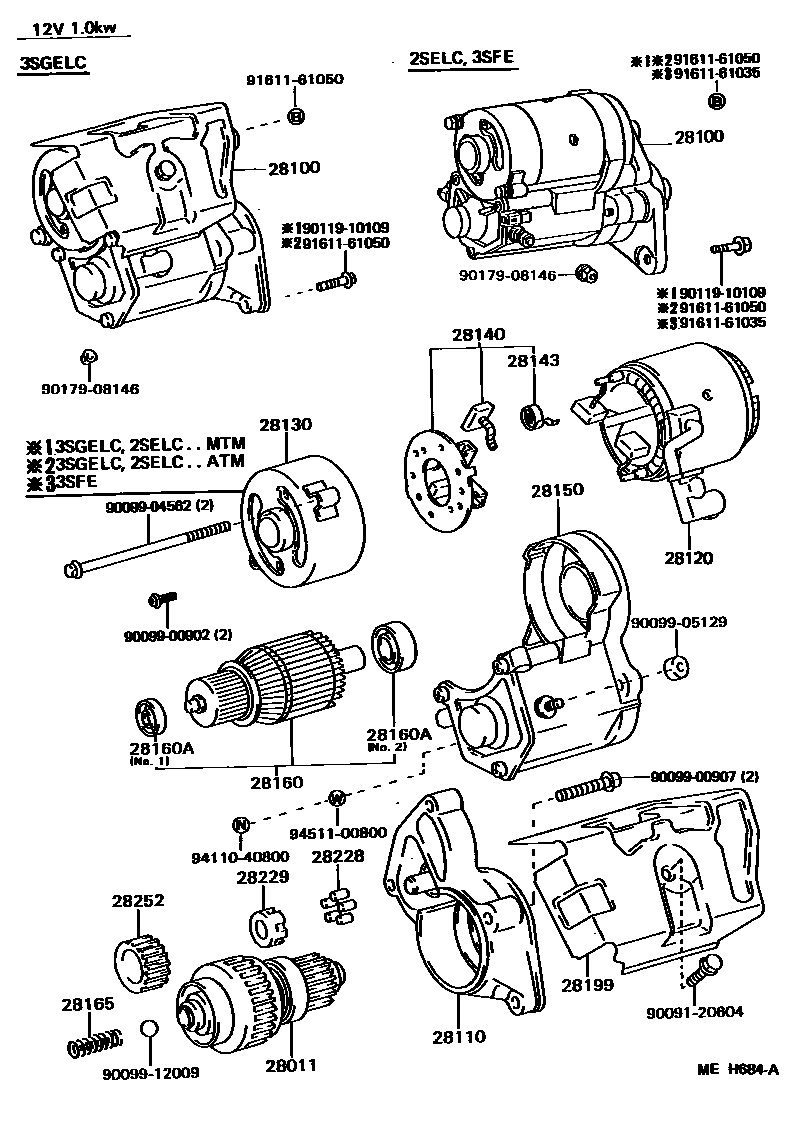

STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2SELC,3SGELC..ST16#198508-198708

12V 1.0KW,1.4KW

main28011-74010i3SFE..ST162198608-198708

12V 1.0KW,1.4KW

sub28011-74011

28100STARTER ASSY

main28100-63020i2SELC..ST161..USA198508-198608

12V 1.0KW,12V 1.0KW

main28100-63030i3SGELC..ST162198508-198708

12V 1.4KW,12V 1.4KW

main28100-63040i2SELC..ST161198508-198608

12V 1.4KW,12V 1.4KW

main28100-63050i3SGELC..ST162..USA198508-198708

12V 1.0KW,12V 1.0KW

sub28100-74040

main28100-74010i3SFE..ST162..(CP,LB)..USA198608-198708

12V 1.0KW,12V 1.0KW

sub28100-74011

main28100-74020i3SFE..ST162198608-198708

12V 1.4KW,12V 1.4KW

sub28100-74021

28110HOUSING ASSY, STARTER DRIVE

main28100-74010i3SFE..ST162..(CP,LB)..USA198608-198708

12V 1.0KW

sub28100-74011

main28110-63020i2SELC..ST161..USA198508-198608

12V 1.0KW

main28110-63030i3SGELC..ST162198508-198708

12V 1.4KW

main28110-63040i2SELC..ST161198508-198608

12V 1.4KW

main28110-63050i3SGELC..ST162..USA198508-198708

12V 1.0KW

main28110-74020i3SFE..ST162198608-198708

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-15090i2SELC,3S#..ST16#198508-198708

12V 1.4KW

main28120-26071i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i3SGELC..ST162..USA198508-198708

12V 1.0KW

main28130-15090i2SELC..ST161198508-198608

12V 1.4KW

main28130-35020i3SGELC..ST162198508-198708

12V 1.4KW

main28130-63020i2SELC..ST161..USA198508-198608

12V 1.0KW

main28130-74010i3SFE..ST162..(CP,LB)..USA198608-198708

12V 1.0KW

main28130-74020i3SFE..ST162198608-198708

12V 1.4KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i2SELC,3SGELC..ST16#198508-198708

12V 1.4KW

main28140-26070i2SELC,3SGELC..ST16#..USA198508-198708

12V 1.0KW

main28140-74010i3SFE..ST162..(CP,LB)..USA198608-198708

12V 1.0KW

main28140-74020i3SFE..ST162198608-198708

12V 1.4KW

28143SPRING, STARTER BRUSH

main90099-17112i2SELC,3S#..ST16#198508-198708

12V 1.0KW,1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-63021i2SELC..ST161..USA198508-198608

12V 1.0KW

main28150-63030i3SGELC..ST162198508-198708

12V 1.4KW

main28150-63040i2SELC..ST161198508-198608

12V 1.4KW

main28150-63050i3SGELC..ST162..USA198508-198708

12V 1.0KW

main28150-74010i3SFE..ST162..(CP,LB)..USA198608-198708

12V 1.0KW

main28150-74020i3SFE..ST162198608-198708

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i2SELC,3S#..ST16#198508-198708

12V 1.4KW

sub28160-15091

main28160-26070i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

12V 1.0KW

sub28160-26071

28160ABEARING, STARTER ARMATURE

main28253-45020i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

12V 1.0KW,NO.2

main90099-10113i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

12V 1.0KW,NO.1

main90099-10143i2SELC,3S#..ST16#198508-198708

12V 1.4KW,NO.2

main90099-10144i2SELC,3S#..ST16#198508-198708

12V 1.4KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2SELC,3SGELC..ST16#198508-198708

12V 1.0KW,1.4KW

main28165-74010i3SFE..ST162198608-198708

12V 1.0KW,1.4KW

28199COVER, STARTER

main28170-15150i3SGELC..ST162198607-198708

12V 1.4KW

main28199-15150i3SGELC..ST162198508-198607

12V 1.4KW

main28199-63050i3SGELC..ST162..USA198508-198708

12V 1.0KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2SELC,3S#..ST16#198508-198708

12V 1.0KW,1.4KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2SELC,3S#..ST16#198508-198708

12V 1.0KW,1.4KW

28252GEAR, STARTER IDLE

main28254-45020i2SELC,3S#..ST16#198508-198708

12V 1.0KW,1.4KW

9009120604

main90091-20604

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910109

main90119-10109

9017908146

main90179-08146

9161161035

main91611-61035

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 2 diagrams in section
