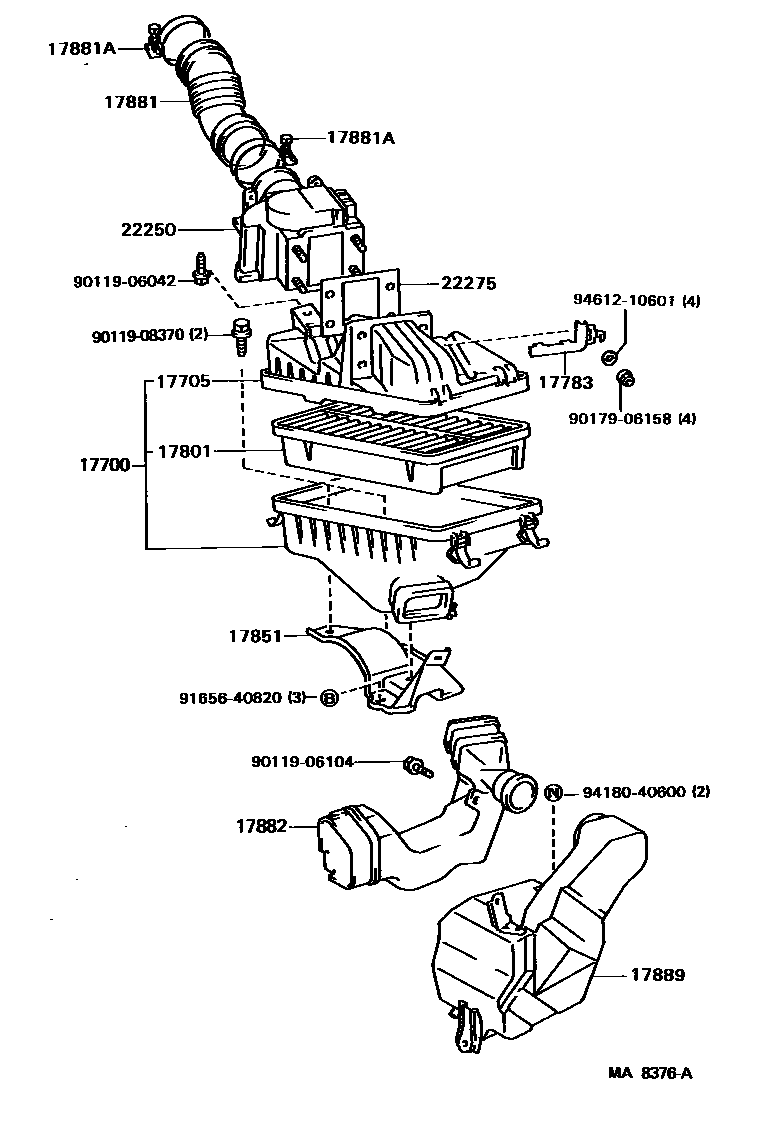

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-74040i3SGELC..ST162198508-198708

main17700-74050i2SELC..ST161198508-198608

sub17700-74130

main17700-74130i3SFE..ST162198608-198708

17705CAP SUB-ASSY, AIR CLEANER

main17705-74040i3SGELC..ST162198508-198708

main17705-74050i2SELC,3SFE..ST16#198508-198708

17783PLATE, AIR CLEANER BAFFLE

main17783-74020i2SELC,3S#..ST16#198508-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64010i2SELC,3SGELC..ST16#198508-198708

main17801-74020i3SFE..ST162198608-198708

17851BRACKET, AIR CLEANER SUPPORT

main17851-74010i2SELC,3S#..ST16#198508-198708

17881HOSE, AIR CLEANER, NO.1

main17881-74060i3SGELC..ST162198508-198708

main17881-74070i2SELC..ST161198508-198608

main17881-74140i3SFE..ST162198608-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710i2SELC,3SFE..ST16#198508-198708

THROTTLE BODY SIDE

main96111-10750i3SGELC..ST162198511-198708

THROTTLE BODY SIDE

main96111-10780i3SGELC..ST162198508-198511

THROTTLE BODY SIDE

main96111-10800i2SELC,3SFE..ST16#198508-198708

AIR FLOW METER SIDE

main96111-10900i3SGELC..ST162198508-198708

AIR FLOW METER SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-20100i2SELC,3SGELC..ST16#198508-198708

main17882-74060i3SFE..ST162198608-198708

17889BOX, AIR CLEANER HOSE, NO.2

main17889-20010i2SELC,3SGELC..ST16#198508-198708

22250METER ASSY, INTAKE AIR FLOW

main22250-74060i3SGELC..ST162198508-198708

main22250-74080i2SELC..ST161198508-198608

main22250-74120i3SFE..ST162198608-198708

22275GASKET, AIR FLOW METER

main22275-41010i2SELC,3SFE..ST16#198508-198708

main22275-43010i3SGELC..ST162198508-198708

9011906042

main90119-06042

9011906104

main90119-06104

9011908370

main90119-08370

9017906158

main90179-06158

9165640820

main91656-40820

9418040600

main94180-40600

9461210601

main94612-10601

18 parts on this diagram · 3 diagrams in section
