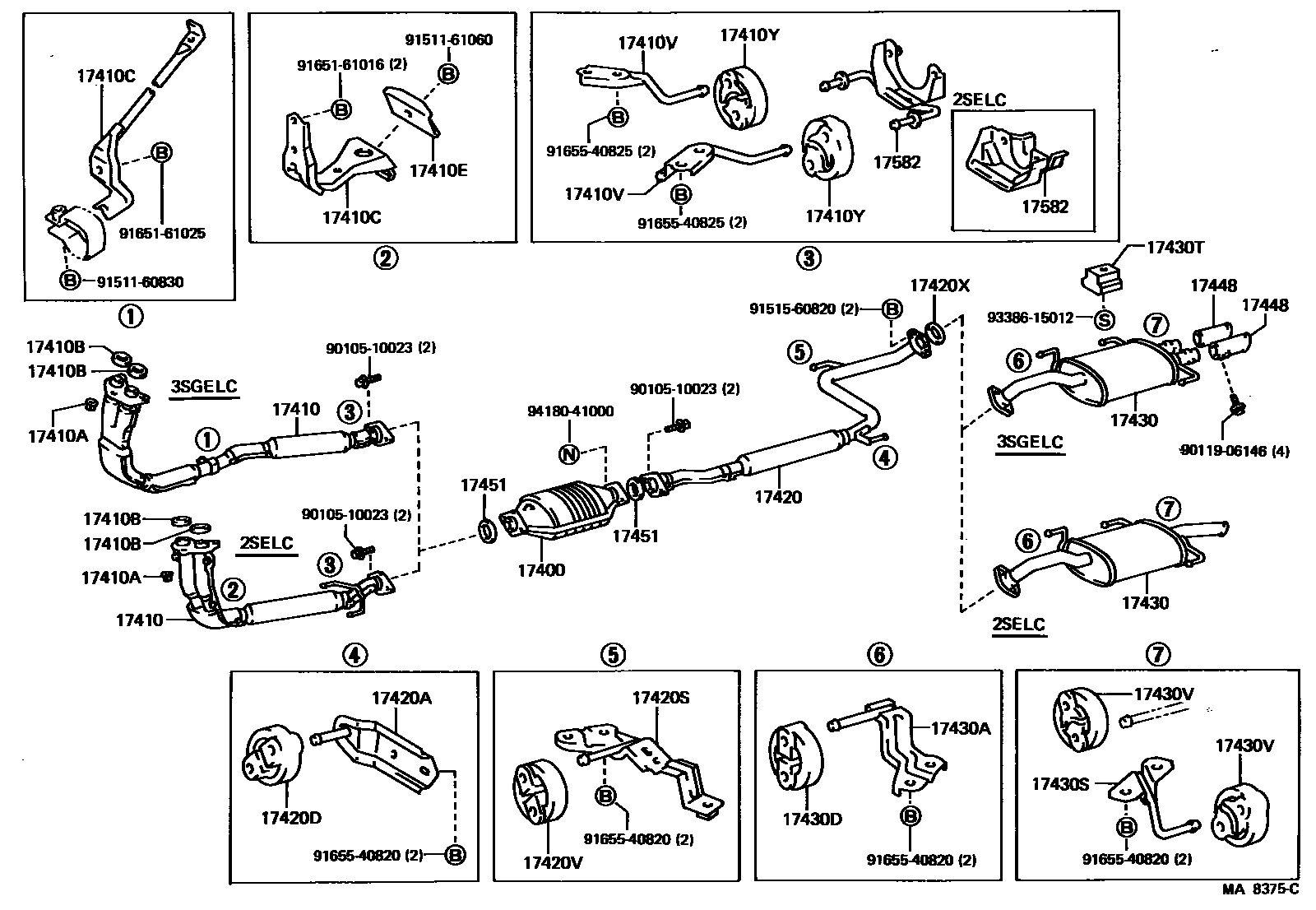

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main18450-74011i2SELC..ST161198508-198608

main18450-74060i3SGELC..ST162198508-198603

sub18450-74200

sub18450-74210

main18450-74080i3SGELC..ST162198603-198708

sub18450-74120

17410PIPE ASSY, EXHAUST, FRONT

main17410-74100i2SELC..ST161198508-198604

main17410-74101i2SELC..ST161198604-198608

main17410-74110i3SGELC..ST162198508-198708

sub17410-74240

main17410-74210i3SFE..ST162..USA198608-198609

main17410-74220i3SFE..ST162..USA198609-198708

main17410-74240i3SGELC..ST162..CND198606-198708

main17410-74250i3SFE..ST162..CND198608-198708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2SELC,3S#..ST16#198508-198708

17410BGASKET, EXHAUST PIPE

main90917-06001i2SELC..ST161198508-198608

sub90917-06038

main90917-06004i3SGELC..ST162198508-198708

sub90917-06039

main90917-06005i3SFE..ST162198608-198708

sub90917-06042

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17506-74020i3SGELC..ST162198508-198708

main17571-74030i2SELC..ST161198508-198608

main17571-74070i3SFE..ST162198608-198708

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04054i2SELC..ST161198508-198608

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17504-63010i2SELC,3SGELC..ST16#198508-198512

RH

main17504-74010i3S#..ST162198611-198702

RH,PLANT.A51-A54

main17504-74010i2SELC,3S#..ST16#198512-198611

RH

main17504-74030i3S#..ST162198611-198702

RH,PLANT.A41-A42

sub17504-74040

main17504-74040i3S#..ST162198702-198708

RH

main17505-63020i2SELC,3SGELC..ST16#198508-198512

LH

main17505-63020i3S#..ST162198611-198702

LH,PLANT.A41-A42

main17505-74010i2SELC,3S#..ST16#198512-198611

LH

main17505-74010i3S#..ST162198611-198702

LH,PLANT.A51-A54

main17505-74020i3S#..ST162198702-198708

LH

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17565-16020i2SELC,3SGELC..ST16#..5F198508-198604

main17565-63060i2SELC,3S#..ST16#..4FC198508-198708

main17565-63071i2SELC,3S#..ST16#..5F198604-198708

17420PIPE ASSY, EXHAUST, CENTER

main17420-74080i3SFE..ST162198608-198708

main17420-74090i3SGELC..ST162198508-198708

main17420-74110i2SELC..ST161198508-198604

sub17420-74111

main17420-74111i2SELC..ST161198604-198608

sub17420-63111

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17506-74010i2SELC,3S#..ST16#198508-198708

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main17565-63060i2SELC,3S#..ST16#198508-198708

17420SBRACKET, EXHAUST PIPE CENTER, REAR

main17507-74010i2SELC,3S#..ST16#198508-198708

17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR

main17565-63060i2SELC,3S#..ST16#198508-198708

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i2SELC..ST161198508-198608

sub90917-06039

main90917-06012i3S#..ST162198508-198708

sub90917-06045

17430PIPE ASSY, EXHAUST, TAIL

main17430-74080i3SGELC..ST162198508-198708

main17430-74090i2SELC..ST161198508-198608

sub17430-63070

main17430-74260i3SFE..ST162198608-198708

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17508-74010i2SELC,3S#..ST16#198508-198708

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-63020i3S#..ST162..4FC198508-198708

main17565-63030i3S#..ST162..5F198508-198708

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-74010i2SELC,3S#..ST16#198508-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-36010i2SELC,3S#..ST16#198508-198708

sub17591-36011

sub90159-50207

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-16080i3S#..ST162..5F198508-198708

main17565-63030i3S#..ST162..4FC198508-198708

17448BAFFLE, TAILPIPE

main17448-74030i3SGELC..ST162198508-198708

sub17448-79015

17451GASKET, EXHAUST PIPE

main90917-06012i3SFE..ST162198608-198708

sub90917-06045

main90917-06020i2SELC..ST161198508-198608

RR

sub90917-06044

main90917-06023i2SELC..ST161198508-198608

FR

sub90917-06041

main90917-06031i3SGELC..ST162198508-198708

FR

sub90917-06043

main90917-06032i3SGELC..ST162198508-198708

RR

sub90917-06040

17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER

main17503-74040i3SGELC..ST162198508-198708

main17582-74030i2SELC..ST161198508-198608

9010510023

main90105-10023

9011906146

main90119-06146

9151160830

main91511-60830

9151161060

main91511-61060

9151560820

main91515-60820

9165161016

main91651-61016

9165161025

main91651-61025

9165540820

main91655-40820

9165540825

main91655-40825

9338615012

main93386-15012

9418041000

main94180-41000

34 parts on this diagram · 2 diagrams in section
