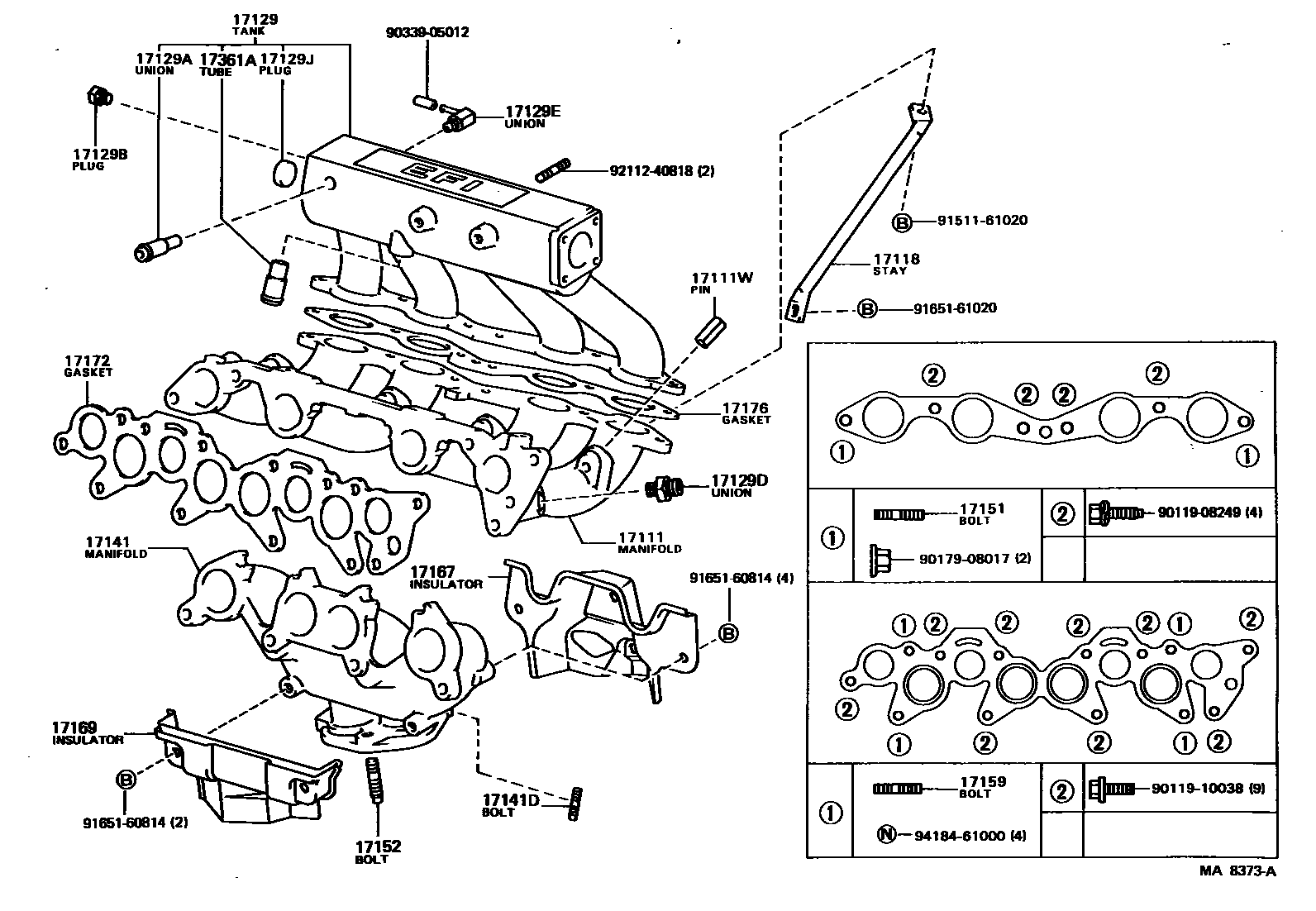

MANIFOLD
17111WPIN, SLOTTED SPRING(FOR INTAKE MANIFOLD)
17118STAY, MANIFOLD
17129TANK, INTAKE AIR SURGE
17129AUNION, NO.1
17129BPLUG
17129DUNION, NO.2
17129EUNION, NO.3
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
OD=30
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
INTAKE MANIFOLD SIDE
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17172GASKET, MANIFOLD TO CYLINDER HEAD
sub17172-63011
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
sub17176-74012
17361ATUBE, AIR(FOR EFI)
9011908249
main90119-08249
9011910038
main90119-10038
9017908017
main90179-08017
9033905012
main90339-05012
9151161020
main91511-61020
9165160814
main91651-60814
9165161020
main91651-61020
9211240818
main92112-40818
9418461000
main94184-61000
28 parts on this diagram · 3 diagrams in section
