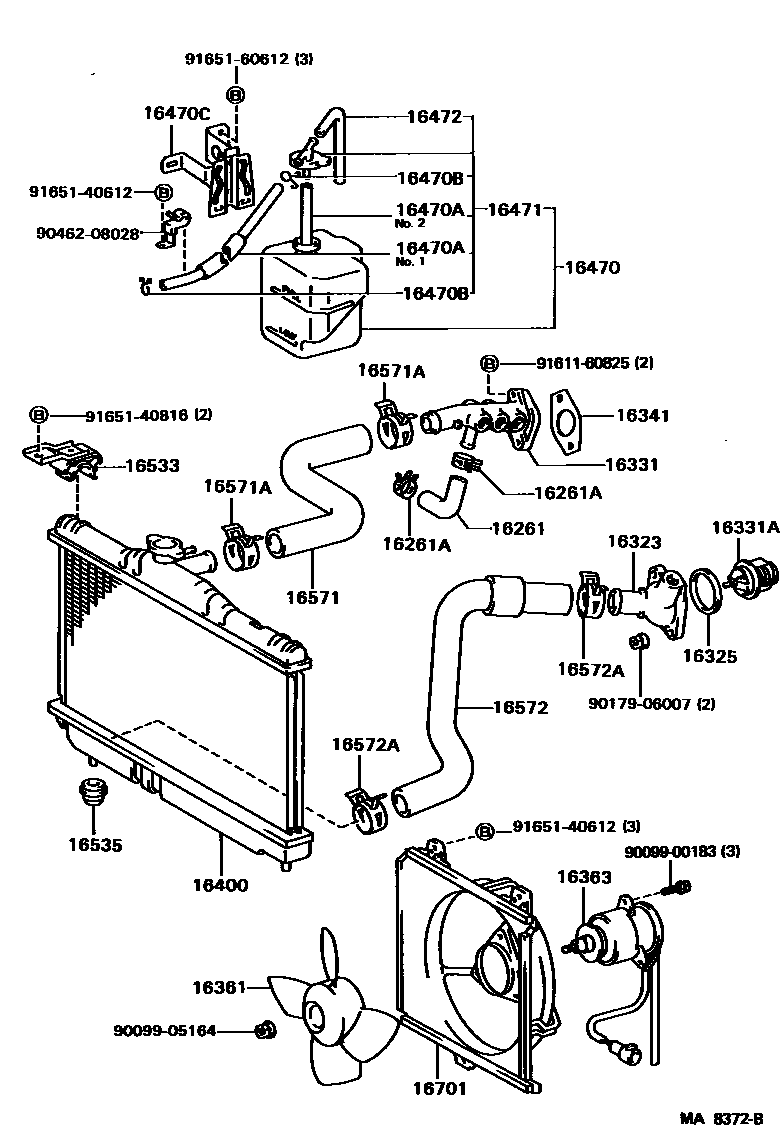

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-63010i2SELC..ST161¥1,200198508-198608

main16261-74010i3SFE..ST162¥640198608-198708

main16261-88360i3SGELC..ST162¥1,060198508-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-21001i2SELC,3SFE..ST16#¥210198508-198610

sub90467-21006¥160

main90467-22003i3S#..ST162¥250198508-198708

sub90467-21010¥380

16323HOUSING, WATER INLET

main16323-63020i2SELC..ST161¥2,940198508-198608

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2SELC,3S#..ST16#¥640198508-198708

sub16325-63011¥680

16331OUTLET, WATER

main16304-74020i3SGELC..ST162¥4,540198508-198708

sub16304-74021¥4,540

main16304-74030i3SFE..ST162¥4,010198608-198708

main16331-63080i2SELC..ST161..5F¥5,100198508-198608

main16331-63090i2SELC..ST161..4FC¥4,910198508-198608

16331ATHERMOSTAT

main90916-03046i2SELC,3S#..ST16#¥1,740198508-198708

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-63010i2SELC,3S#..ST16#¥320198508-198708

sub16341-63011¥310

16361FAN

main16361-63040i2SELC,3S#..ST16#..5F¥0198508-198708

main16361-64010i2SELC,3S#..ST16#..4FC198508-198708

16363MOTOR, COOLING FAN

main16363-10010i2SELC,3S#..ST16#..5F¥21,900198508-198708

main16363-16010i2SELC,3S#..ST16#..4FC¥23,600198508-198708

16400RADIATOR ASSY

main16400-63080i2SELC..ST161..4FC¥72,400198508-198608

main16400-63110i2SELC..ST161..5F¥55,800198508-198608

sub16400-63080¥72,400

main16400-74060i3S#..ST162..5F¥31,900198508-198708

sub16400-74070¥31,900

main16400-74070i3S#..ST162..4FC¥31,900198508-198708

16470TANK ASSY, RADIATOR RESERVE

main16470-74010i2SELC,3S#..ST16#¥3,910198508-198708

sub16470-74170¥3,890

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33080i2SELC,3S#..ST16#198508-198708

L=1450(*H,L=140),NO.2

main90445-12078i2SELC,3S#..ST16#¥580198508-198708

L=600(*H,L=530),NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2SELC,3S#..ST16#¥100198508-198708

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-74010i2SELC,3S#..ST16#¥5,900198508-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-74010i2SELC,3S#..ST16#198508-198708

16472HOSE, BREATHER

main85338-14030i2SELC,3S#..ST16#198508-198708

16533SUPPORT, RADIATOR, UPPER

main16533-74010i2SELC,3S#..ST16#¥3,920198508-198708

16535SUPPORT, RADIATOR, LOWER

main16535-74010i2SELC,3S#..ST16#¥880198508-198708

sub90916-04002¥840

16571HOSE, RADIATOR, INLET

main16571-63020i2SELC..ST161¥2,010198508-198608

main16571-74030i3S#..ST162¥2,010198508-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i2SELC,3S#..ST16#¥370198508-198708

sub90467-34003¥400

16572HOSE, RADIATOR, OUTLET

main16572-74030i2SELC,3S#..ST16#¥2,170198508-198708

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i2SELC,3S#..ST16#¥370198508-198708

sub90467-34003¥400

16701SHROUD SUB-ASSY, FAN

main16711-74020i2SELC,3S#..ST16#..5F¥7,100198508-198708

main16711-74030i2SELC,3S#..ST16#..4FC¥7,100198508-198708

9009900183

main90099-00183

9009905164

main90099-05164¥0

9017906007

main90179-06007¥80

9046208028

main90462-08028¥590

9161160825

main91611-60825¥140

9165140612

main91651-40612¥70

9165140816

main91651-40816¥80

9165160612

main91651-60612¥90

31 parts on this diagram · 4 diagrams in section
