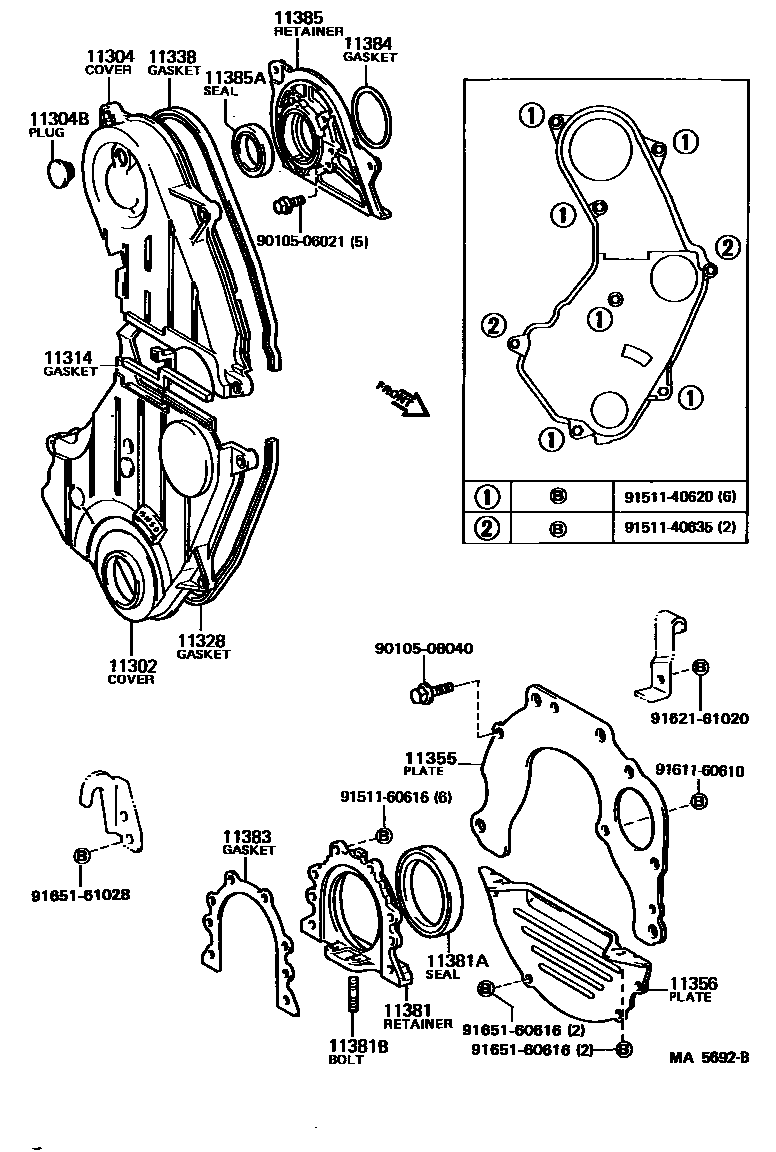

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-63010i2SELC..ST161198508-198608

main11302-74010i3SFE..ST162198608-198708

sub11302-74011

main11321-88360i3SGELC..ST162198508-198708

sub11321-74030

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-63010i2SELC..ST161198508-198608

main11303-74010i3SFE..ST162198608-198708

main11322-88361i3SGELC..ST162198508-198708

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01334i2SELC..ST161198508-198608

main90950-01390i3SFE..ST162198608-198611

OD=76

sub90950-01497

main90950-01489i3SFE..ST162198608-198708

OD=33,OD=34

main90950-01497i3SFE..ST162198611-198708

OD=76,OD=76

11314GASKET, TIMING CHAIN NO.2 COVER

main11319-63010i2SELC,3SFE..ST16#198508-198708

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-63010i2SELC..ST161198508-198608

main11328-74010i3SFE..ST162198608-198708

main11328-88360i3SGELC..ST162198508-198604

main11328-88361i3SGELC..ST162198604-198708

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-63010i2SELC..ST161198508-198608

11355PLATE, REAR END

main11355-63020i2SELC,3SGELC..ST16#198508-198606

sub11355-63021

main11355-63021i2SELC,3SGELC..ST16#198606-198708

main11355-74010i3SFE..ST162198608-198708

11356PLATE, REAR END, NO.2

main11356-63020i2SELC,3SGELC..ST16#198508-198606

sub11356-63030

main11356-63030i2SELC,3S#..ST16#198606-198708

sub11356-63031

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63010i2SELC,3SGELC..ST16#198508-198607

main11381-63011i2SELC,3S#..ST16#198607-198708

sub11381-63012

11381ASEAL, ENGINE REAR OIL

main90311-85003i2SELC,3S#..ST16#198508-198708

sub90311-85006

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06022i2SELC..ST161198508-198607

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-63010i2SELC,3S#..ST16#198508-198708

sub11383-63011

11384GASKET, OIL SEAL RETAINER, NO.2

main90301-65002i2SELC..ST161198508-198608

11385RETAINER, CAMSHAFT OIL SEAL

main11382-63010i2SELC..ST161198508-198608

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i3SGELC..ST162198508-198708

sub90311-35022

main90311-38017i2SELC..ST161198508-198708

sub90311-38046

9010506021

main90105-06021

9010508040

main90105-08040

9151140620

main91511-40620

9151140635

main91511-40635

9151160616

main91511-60616

9161160610

main91611-60610

9162161020

main91621-61020

9165160616

main91651-60616

9165161028

main91651-61028

24 parts on this diagram · 3 diagrams in section
