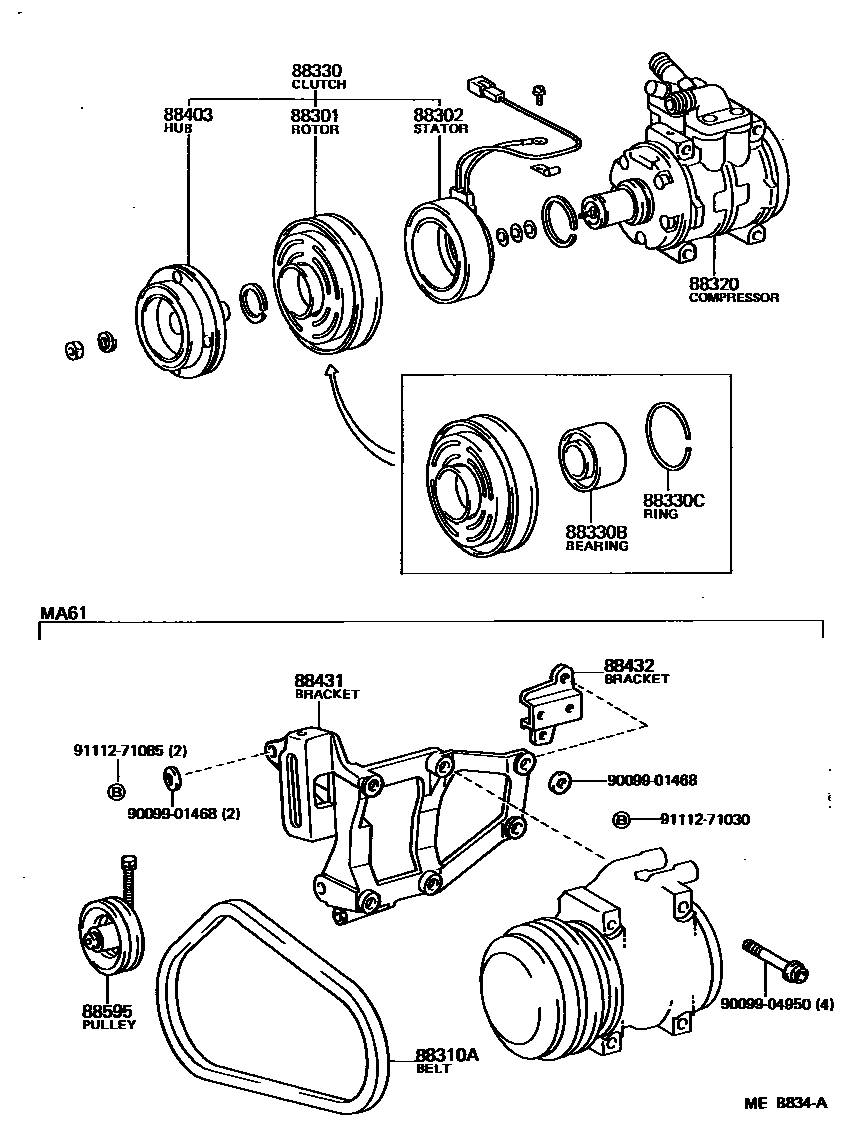

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12110iAA63198308-198507

main88412-14010iRA63,TA60;MA61..TWC198108-198512

main88412-14020iRA60,65;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

sub88412-36030

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198512

main88411-22070iAA63198308-198507

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00950iTA60198108-198507

sub99322-50950

main99332-10980iMA61..TWC198112-198512

88320COMPRESSOR ASSY, COOLER

main88320-14260iRA63198108-198308

main88320-14320iRA60,65;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

main88320-14330iTA60198108-198507

main88320-14340iMA61..TWC198112-198512

main88320-14350iRA60..ARL198108-198308

main88320-14460iAA63198308-198507

88330CLUTCH ASSY, MAGNET

main88410-12150iAA63198308-198507

main88410-14090iRA63,TA60;MA61..TWC198108-198512

main88410-14100iRA60,65;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

88330BBEARING, MAGNET CLUTCH

main90099-10133iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA)198108-198512

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA)198108-198512

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA)198108-198512

sub88403-12030

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-14120iTA60198108-198507

main88431-14130iRA60..ARL198108-198308

main88431-14170iRA65198408-198507

main88431-14171iRA61..RHD;RA60..GEN,ME;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198208-198507

main88431-14200iAA63198308-198507

main88431-20150iRA63198108-198308

main88431-24020iMA61..TWC198112-198512

main88431-26150iRA61..RHD..GEN198406-198507

HONG KONG SPEC

main88431-26150iRA61..EUG;RA60..GEN,ME198108-198208

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88431-20160iRA63198108-198308

main88434-20150iRA60..ARL198108-198308

main88688-14500iMA61..TWC198112-198512

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12110iAA63198308-198507

main88440-22050iRA60,65;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

main88440-25010iMA61..TWC198108-198507

sub88440-28050

main88440-30250iMA61198112-198512

sub88440-28050

9009901468

main90099-01468

9009904950

main90099-04950

9111271030

main91112-71030

9111271085

main91112-71085

15 parts on this diagram · 6 diagrams in section
