HEATING & AIR CONDITIONING - VACUUM PIPING

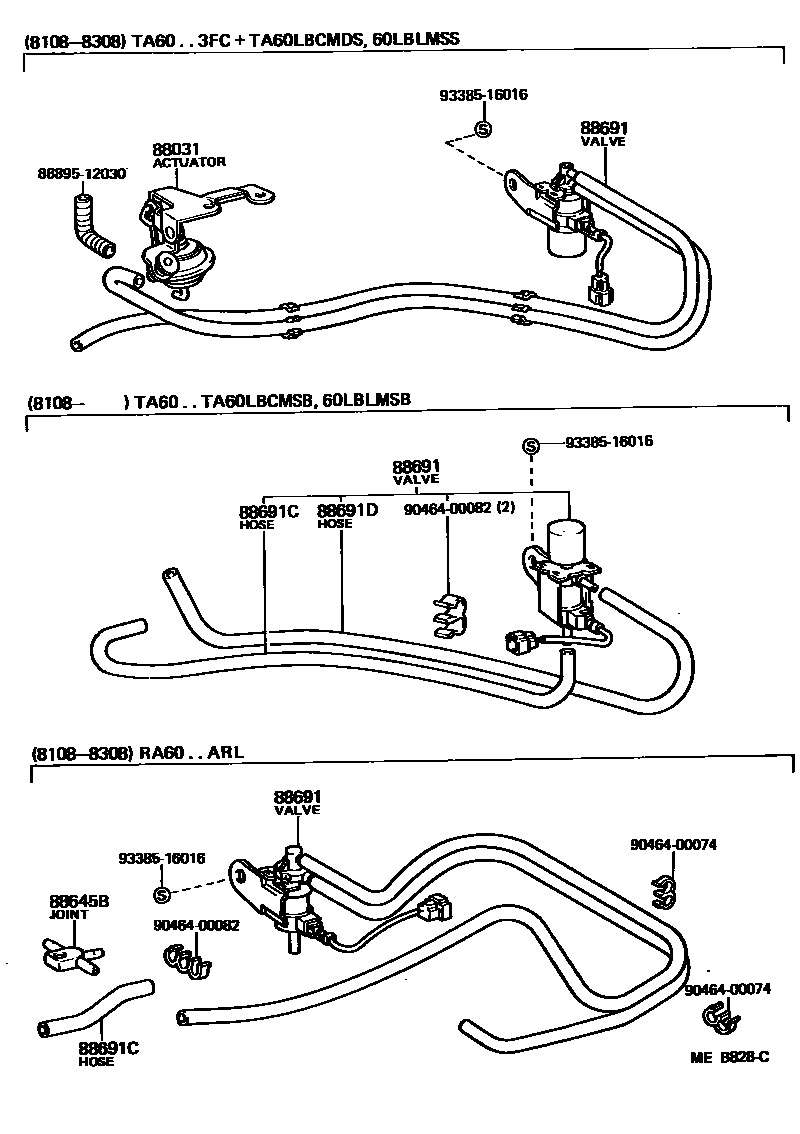

Parts diagram

88031ACTUATOR SET, IDLE-UP

main88031-12060i198108-198308

main88031-20050i198108-198507

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005i198108-198507

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-14540i198108-198308

main88690-14550i198108-198507

main88690-14560i198108-198507

main88690-14650i198112-198308

main88690-14700i198108-198308

main88690-14720i198201-198408

main88690-14720i198201-198201

HONG KONG SPEC

main88690-14721i198408-198507

main88690-14730i198408-198507

main88690-14790i198308-198507

main88690-30540i198308-198512

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main95411-10030i198408-198507

L=300,MARK=#0

main95411-10030i198308-198512

*H,L=260,MARK=#0

main95411-10060i198108-198507

*H,L=390,MARK=#0

main95411-10060i198201-198201

*H,L=330,MARK=#0,HONG KONG SPEC

main95411-10060i198201-198408

*H,L=330,MARK=#0

main95411-10060i198108-198507

*H,L=510,MARK=#0

main95411-10060i198406-198507

*H,L=390,MARK=#0,HONG KONG SPEC

main95411-19960i198108-198308

*H,L=480,MARK=#*

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main88689-14080i198408-198507

main88689-24021i198112-198512

main95411-19930i198408-198507

*H,L=260,MARK=#*

main95411-19930i198308-198512

*H,L=280,MARK=#*

main95411-19960i198108-198408

*H,L=360,MARK=#*

main95411-19960i198108-198507

*H,L=450,MARK=#*

main95411-19960i198201-198507

*H,L=360,MARK=#*,HONG KONG SPEC

main95411-19960i198408-198507

*H,L=330,MARK=#*

8889512030HOLDER, FUSE

main88895-12030

9046400074

main90464-00074

9046400082

main90464-00082

9338516016

main93385-16016

9 parts on this diagram · 4 diagrams in section
