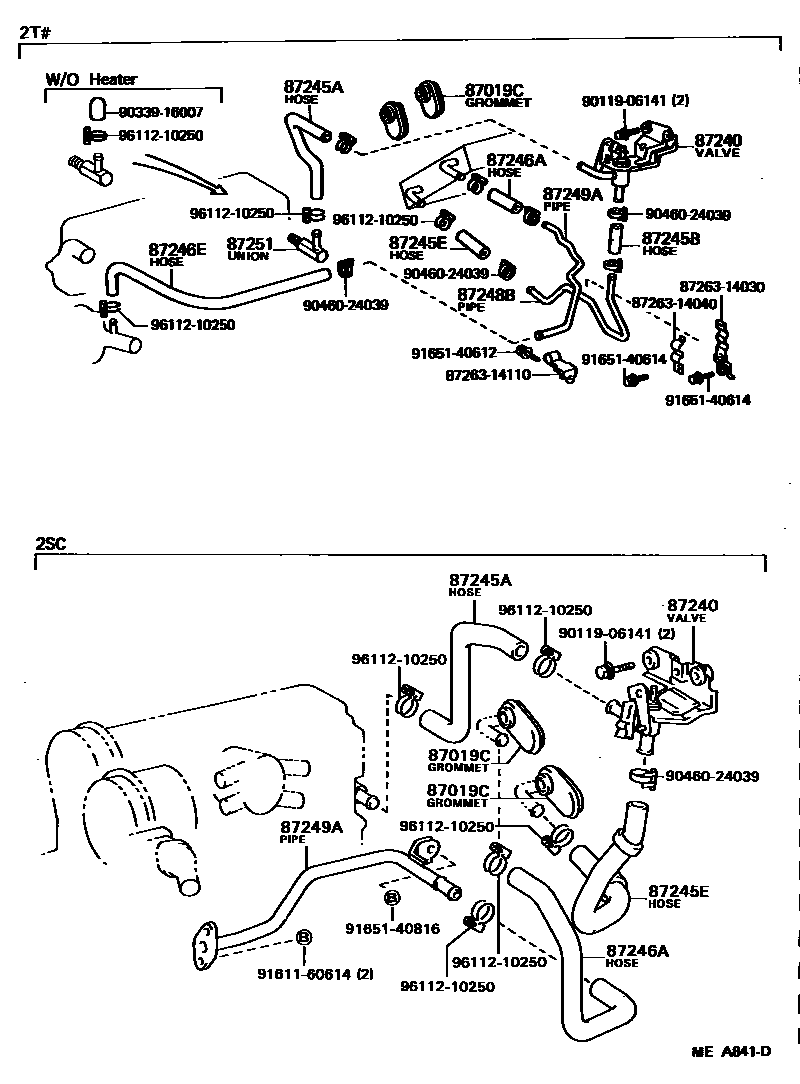

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87019CGROMMET, HEATER HOSE

main90480-01015iAA63,MA61,RA6#,SA63,TA60198108-198512

87240VALVE ASSY, HEATER WATER

main87240-14110iAA63,MA61,RA6#,SA63..RHD198108-198512

main87240-14120iAA63,RA60,61,63,TA60..LHD198108-198507

main87240-14130iMA61..LHD198112-198512

main88670-14050iMA61..LHD..(GEN,SAA)198308-198512

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87245-14770iRA63..RHD198108-198308

main87245-14800iSA63198308-198408

main87245-14860iRA60,61,65..RHD198108-198507

main87245-14870iRA63,TA60..LHD198108-198507

main87245-14890iRA60,61..LHD198108-198507

main87245-1B020iMA61..LHD..TWC198112-198512

main87245-1B130iAA63..RHD198308-198507

main87245-1B170iMA61..ARL198308-198512

main87245-1B190iAA63..LHD198308-198507

main87245-1B210iMA61..SDZ198308-198512

main87245-24040iMA61..RHD..TWC198112-198512

87245BHOSE, HEATER WATER, INLET B

main99552-30055iAA63198408-198507

sub99552-30075

main99552-30100iAA63..RHD198108-198408

*H,L=55

sub99556-30100

main99556-30055iAA63,RA60,61,63,TA60..LHD198305-198507

*H,L=55

sub99556-30100

87245EHOSE, HEATER WATER, INLET E

main87245-14740iRA6#,SA63..RHD198108-198507

main87245-14750iMA61..RHD198112-198512

main87245-14760iMA61..LHD198112-198512

main87245-1B060iAA63,RA63,TA60..LHD198108-198507

main99552-30100iAA63..RHD198108-198408

*H,L=55

sub99556-30100

main99556-30055iAA63..RHD198305-198507

*H,L=55

sub99556-30100

87246AHOSE, HEATER WATER, OUTLET A

main87245-14850iRA60,61,65..RHD198108-198507

main87245-1B030iMA61..LHD198112-198512

main87245-1B040iRA63..RHD198108-198308

main87245-1B140iAA63..RHD198308-198507

main87245-1B200iAA63..LHD198308-198507

main87245-20600iSA63198308-198408

main87245-24060iMA61..RHD198112-198512

main99552-30100iTA60198108-198408

*H,L=55

sub99556-30100

main99556-30055iRA60,61..LHD198305-198507

*H,L=55

sub99556-30100

87246EHOSE, HEATER WATER, OUTLET E

main87245-14880iRA60,61..LHD198108-198507

main87245-1B050iTA60198108-198507

sub87245-32050

main87245-1B070iMA61..LHD198112-198512

main87245-1B180iAA63..LHD198308-198507

main87245-24050iMA61..RHD198112-198512

main99552-30480iRA63..RHD198108-198308

W/COOLER

sub99552-30500

main99552-30500iRA63..LHD198108-198308

*H,L=480

sub99556-30500

87248BPIPE, HEATER WATER INLET, B

main87248-14160iAA63,RA63,TA60..LHD198108-198507

main87248-14210iRA60,61..LHD198108-198507

main87248-20260iAA63..RHD198308-198507

87249APIPE, HEATER WATER OUTLET, A

main87208-14240iAA63..LHD198308-198507

main87208-20062iRA60,61,65..RHD198108-198507

main87208-20160iSA63198308-198408

main87248-14170iRA63..RHD198108-198308

main87248-14190iRA63,TA60..LHD198108-198507

main87248-14200iRA60,61..LHD198108-198507

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20100iTA60198108-198507

main87251-30200iMA61198112-198512

8726314030BRACKET, HEATER WATER PIPE, NO.1

main87263-14030

8726314040BRACKET, HEATER WATER PIPE, NO.1

main87263-14040

8726314110BRACKET, HEATER WATER PIPE, NO.1

main87263-14110

9011906141

main90119-06141

9033916007

main90339-16007

9046024039

main90460-24039

9161160614

main91611-60614

9165140612

main91651-40612

9165140614

main91651-40614

9165140816

main91651-40816

9611210250

main96112-10250

21 parts on this diagram · 5 diagrams in section
