SPEAKER

0001 1 0002 1

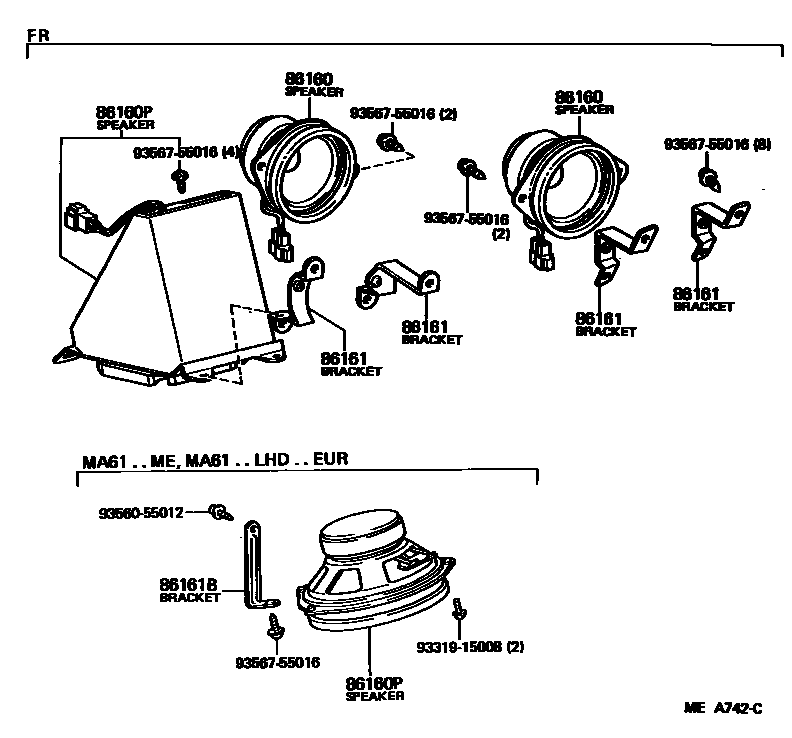

86160SPEAKER ASSY, FRONT NO.1

main86160-14180×2iAA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SAA198108-198512

86160PSPEAKER ASSY, FRONT NO.2

main86160-14260iMA61..LHD..GEN198308-198512

W/TAPE PLAYER

main86160-19255iAA63,RA6#,SA63..RHD198308-198507

main86160-19315iMA61..LHD198208-198308

86161BRACKET, SPEAKER, FRONT NO.1

main86219-14040iAA63,MA61,RA6#,SA63..RHD..(ARL,EUR,GEN)198108-198512

ASSIST,OUTER

main86219-14050iAA63,MA61,RA6#,SA63..RHD..(ARL,EUR,GEN)198108-198512

ASSIST,INNER

main86219-14060×2iAA63,MA61,RA6#,SA63..RHD..(ARL,EUR,GEN)198108-198512

DRIVER

main86219-14070iRA6#,TA60..LHD198108-198308

ASSIST,OUTER

main86219-14080iRA6#,TA60..LHD198108-198308

ASSIST,INNER

main86219-14090×2iRA6#,TA60..LHD198108-198308

DRIVER

86161BBRACKET, SPEAKER, FRONT NO.2

main86219-14100iMA61..LHD..EUR198209-198512

9331915008

main93319-15008

9356055012

main93560-55012

9356755016

main93567-55016

7 parts on this diagram · 2 diagrams in section
