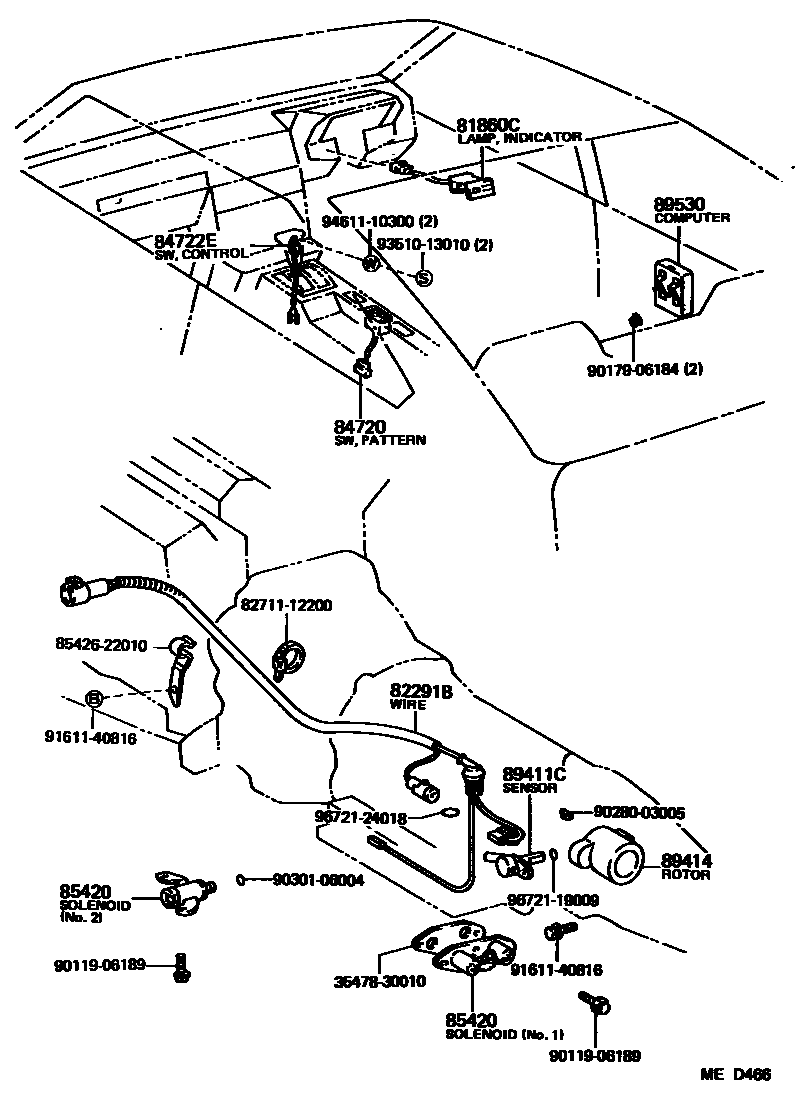

ELECTRONIC CONTROLLED TRANSMISSION

81860CLAMP ASSY, TRANSMISSION INDICATOR

main81860-14010iMA61..4FC..EUG198308-198512

82291BWIRE, TO SOLENOID (FOR TRANSMISSION)

main82125-14150iMA61..4FC..EUG198512-198512

main82291-30150iMA61..4FC..EUG198308-198512

84720SWITCH ASSY, PATTERN SELECT

main84720-14020iMA61..4FC..EUG198308-198512

84722ESWITCH, TRANSMISSION CONTROL

main84722-14070-01iMA61..4FC..EUG198308-198512

BLACK,BLACK,TRIM2#

sub84722-14070

main84722-14070-02iMA61..4FC..EUG198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub84722-14070

main84722-14070-04iMA61..4FC..EUG198308-198512

BLUE,BLUE,TRIM8#

sub84722-14070

main84722-14070-06iMA61..4FC..EUG198308-198512

DARK BROWN,BROWN,TRIM4#

sub84722-14070

85420SOLENOID ASSY, TRANSMISSION

main85420-30050iMA61..4FC..EUG198308-198512

NO.1

main85420-30070iMA61..4FC..EUG198308-198512

NO.2

89411CSENSOR, SPEED

main89411-30081iMA61..4FC..EUG198308-198512

sub89411-30082

89414ROTOR, SENSOR

main89414-30010iMA61..4FC..EUG198308-198512

sub89414-30011

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-14060iMA61..4FC..EUG198308-198512

DENSO

main89530-14070iMA61..4FC..EUG198308-198512

AISIN

3547830010GASKET, ACCUMULATOR COVER

main35478-30010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8542622010CLAMP, OVER DRIVE SOLENOID

main85426-22010

9011906189

main90119-06189

9017906184

main90179-06184

9028003005

main90280-03005

9030106004

main90301-06004

9161140816

main91611-40816

9351013010

main93510-13010

9461110300

main94611-10300

9672119009

main96721-19009

9672124018

main96721-24018

20 parts on this diagram · 1 diagram in section
