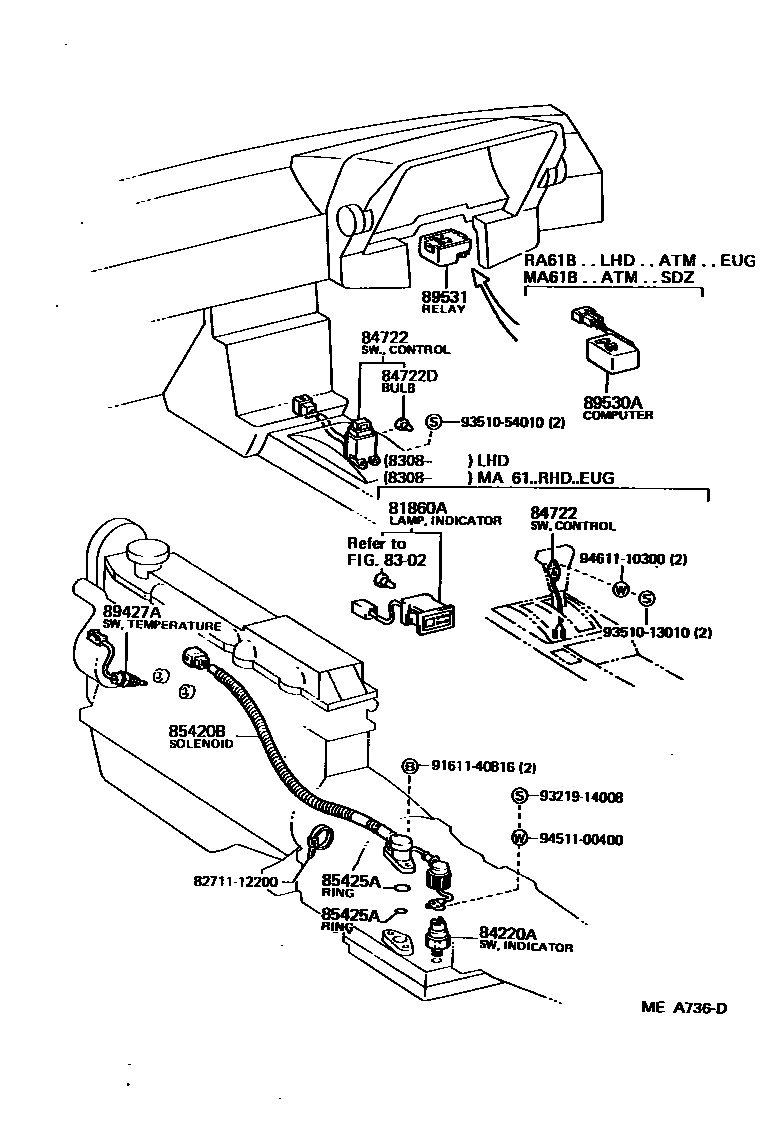

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

81860ALAMP ASSY, TRANSMISSION INDICATOR

main81860-14010iMA61..4FC..SDZ;MA61,RA61..LHD..4FC..(GEN,SAA)198308-198512

8302

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iRA61..LHD..4FC198108-198512

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iRA6#,SA63..RHD..4FC198108-198512

main84722-14070-01iRA61..LHD..4FC198308-198512

BLACK,BLACK,TRIM2#

sub84722-14070

main84722-14070-02iRA61..LHD..4FC198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub84722-14070

main84722-14070-04iMA61..4FC..SDZ;MA61..LHD..4FC..(GEN,SAA)198308-198512

BLUE,BLUE,TRIM8#

sub84722-14070

main84722-14070-06iRA61..LHD..4FC198308-198512

DARK BROWN,BROWN,TRIM4#

sub84722-14070

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iMA61..RHD..4FC..(ARL,GEN)198108-198512

12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-20040iMA61..4FC..SDZ198308-198512

main85420-22040iRA61..LHD..4FC198108-198507

main85420-22060iRA61..RHD..4FC..EUG198108-198512

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iMA61,RA60,61,SA63..4FC198108-198512

ID=11

main90301-23001iMA61,RA60,61,SA63..4FC198108-198512

ID=23

89427ASWITCH, TEMPERATURE

main89427-14060iRA60,61,65,SA63..4FC198108-198507

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-14100iRA61..LHD..4FC..EUG198308-198512

main89530-24010iRA61..LHD..4FC198108-198308

89531RELAY, TRANSMISSION CONTROL

main89531-14050iMA61,RA61..4FC..(GEN,SAA)198308-198512

main89531-22030iRA61..RHD..4FC198108-198308

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161140816

main91611-40816

9321914008

main93219-14008

9351013010

main93510-13010

9351054010

main93510-54010

9451100400

main94511-00400

9461110300

main94611-10300

17 parts on this diagram · 1 diagram in section
