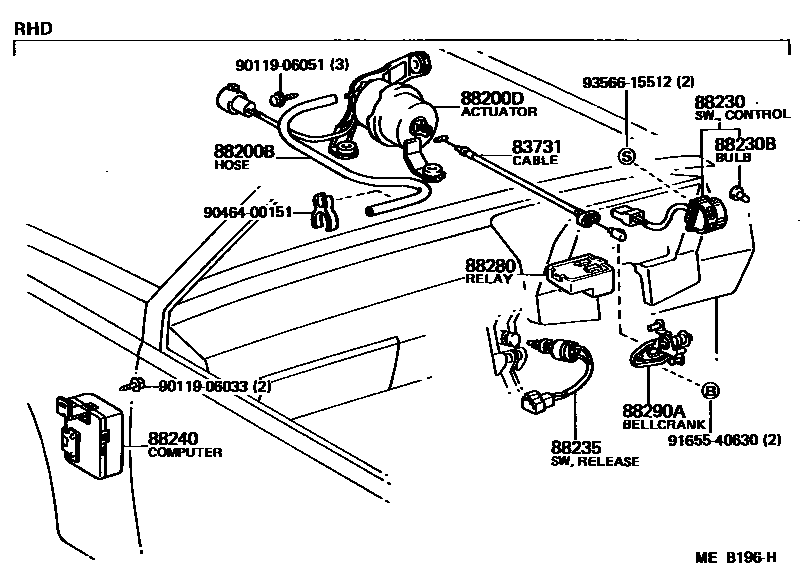

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-24010iMA61..RHD198112-198512

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19930iMA61..SDZ198308-198512

*H,L=280,MARK=#*

sub90999-92002

main95411-19960iMA61..RHD198112-198512

*H,L=480,MARK=#*

sub90999-92003

main95411-19960iMA61..LHD..(GEN,SAA)198408-198512

*H,L=600,MARK=#*,W/*AAC

sub90999-92003

main95411-19995iMA61..LHD..EUG198112-198512

*H,L=950,MARK=#*

sub90999-92004

main95411-19995iMA61..LHD..(GEN,SAA)198208-198512

*H,L=700,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-14070iMA61..LHD198112-198408

sub88200-14071

main88200-14080iMA61..RHD198112-198512

sub88200-14081

main88200-14090iMA61..SDZ198308-198512

sub88200-14091

main88200-14100iMA61..LHD..TWC198408-198512

sub88200-14101

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-14060iMA61..LHD198112-198308

main88230-14090iMA61..RHD198112-198512

88230BBULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH

main90981-11024iMA61198112-198512

12V 1.4W

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-14011iMA61198112-198512

main88280-35010iMA61..5F..EFI198308-198512

88240COMPUTER ASSY, CRUISE CONTROL

main88240-14040iMA61..LHD198112-198308

sub88240-14140

main88240-14060iMA61..RHD198112-198308

sub88240-14061

main88240-14061iMA61..RHD198308-198512

main88240-14070iMA61..LHD198308-198512

main88240-14080iMA61..LHD..TWC198408-198512

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main89531-14050iMA61..RHD..4FC..(ARL,GEN)198308-198512

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-14010iMA61..RHD198112-198512

9011906033

main90119-06033

9011906051

main90119-06051

9046400151

main90464-00151

9165540630

main91655-40630

9356615512

main93566-15512

14 parts on this diagram · 2 diagrams in section
