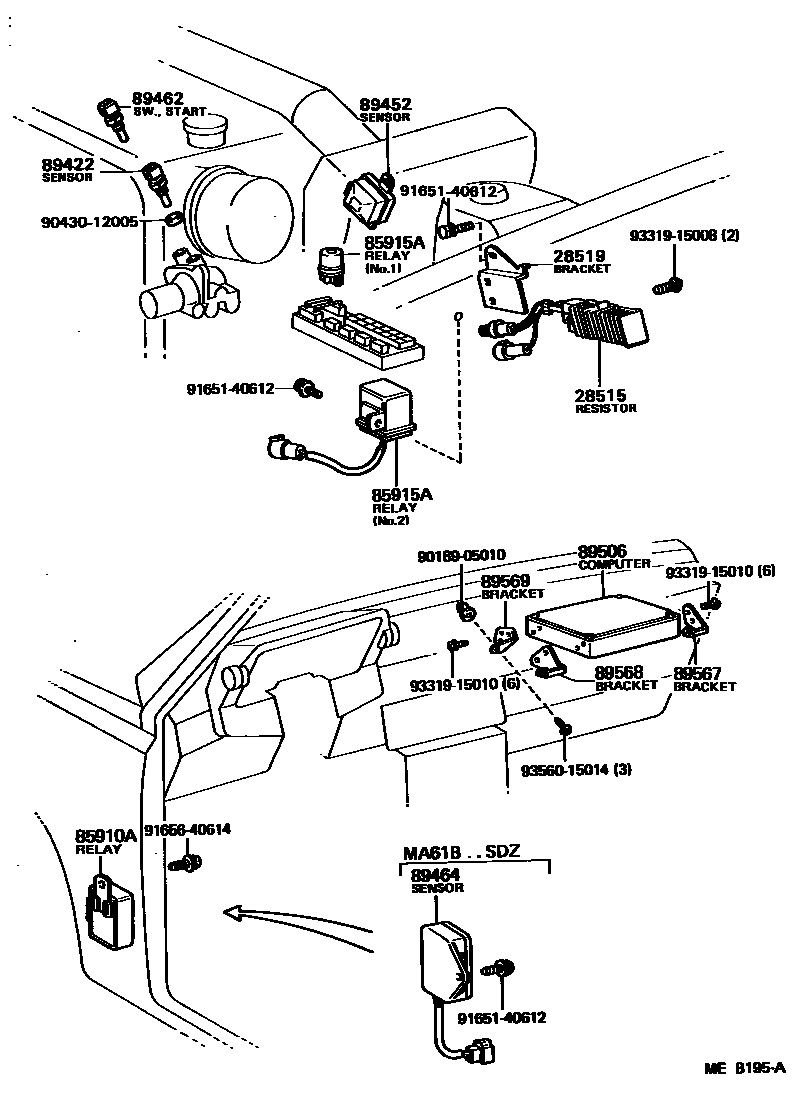

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-10010i22REC..RA65198408-198507

main28515-43010i5M#..MA61198112-198512

28519BRACKET, SOLENOID RESISTOR

main28519-14010i22REC..RA65198408-198507

main28519-24020i5M#..MA61198112-198512

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-14020iMA61..LHD198112-198208

main85910-30050iMA61..RHD198112-198208

85915ARELAY, MAIN

main85915-14050iAA63;MA61..LHD198112-198512

NO.2

main90987-02004iAA63,MA61,RA65198112-198512

NO.1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iAA63,MA61,RA65198112-198512

sub89422-12010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14040iMA61..4FC..EUG198308-198512

main89452-22010iMA61198112-198308

main89452-28010iAA63198308-198507

sub89452-28040

89462SWITCH, START INJECTOR TIME

main89462-30011iAA63,RA65;MA61..ARL,EUR198308-198512

main89462-40010iMA61198112-198308

89464SWITCH, ALTITUDE COMPENSATION

main89464-14030iMA61..SDZ198308-198512

89506COMPUTER SET, FUEL INJECTION

main89561-14110iMA61198112-198308

main89561-14111iMA61..GEN,SA,SAA198408-198512

main89561-14140iMA61..5F..EFI198308-198512

main89561-14150iMA61..4FC..EFI198308-198512

main89561-20020iRA65198408-198507

main89661-14070iAA63..EUG198308-198507

main89661-14080iAA63..GEN198308-198507

main89661-30070iMA61..EUG198308-198512

89567BRACKET, FUEL INJECTION COMPUTER

main89567-14070iAA63,MA61,RA65..RHD..(ARL,GEN,SA)198308-198512

main89567-14080iAA63,MA61..LHD198112-198512

main89667-14021iMA61..RHD..EUG198308-198512

89568BRACKET, FUEL INJECTION COMPUTER

main89568-14060iAA63,MA61,RA65..RHD198112-198512

main89568-14070iAA63,MA61..LHD198112-198512

89569BRACKET, FUEL INJECTION COMPUTER

main89569-14060iAA63,MA61,RA65198112-198512

9018905010

main90189-05010

9043012005

main90430-12005

9165140612

main91651-40612

9165640614

main91656-40614

9331915008

main93319-15008

9331915010

main93319-15010

9356015014

main93560-15014

19 parts on this diagram · 2 diagrams in section
