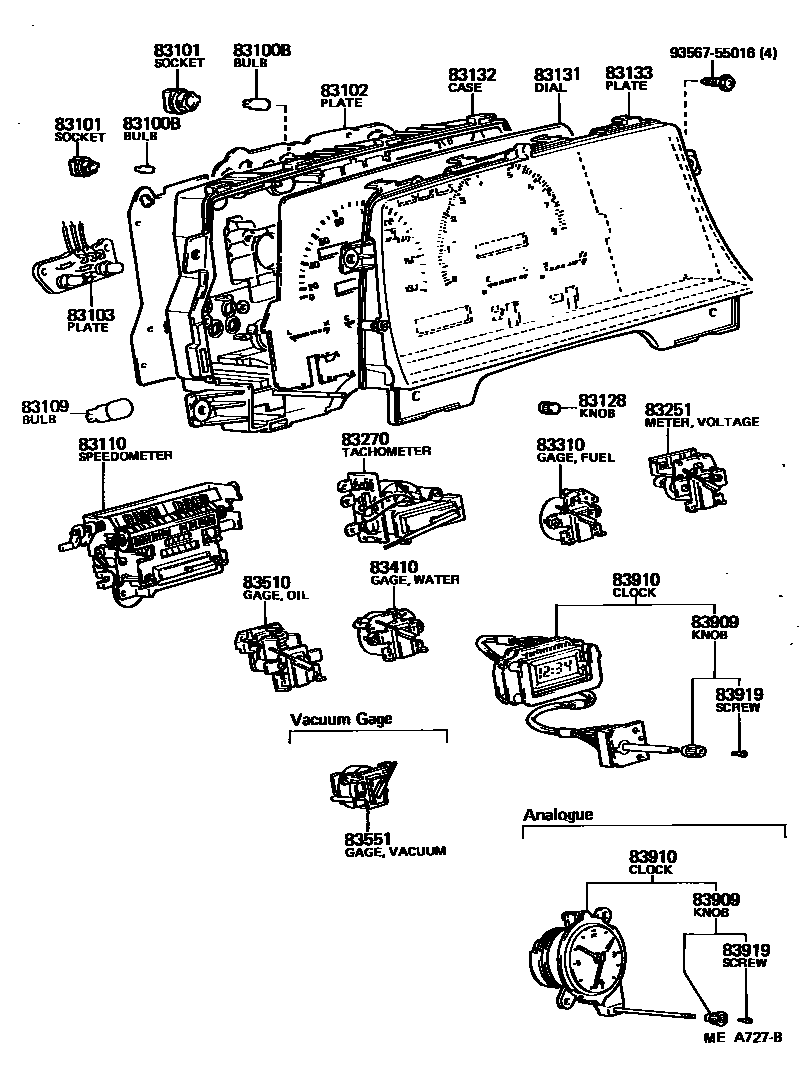

METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×10iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 1.2W W/O SOCKET

main99132-12034×9iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020×2iMA61198308-198512

12V 3.4W LONG

main83101-14030×9iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 3.4W

main83101-14040×11iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-14670iRA60,61..RHD..ST..(EUR,GEN)198108-198305

main83247-14671iRA60,61..RHD..ST..(EUR,GEN)198305-198308

main83247-14690iRA60..RHD..XT198108-198305

main83247-14691iRA60..RHD..XT198305-198308

main83247-14710iRA60,63..RHD..GEN198108-198305

W/DIGITAL CLOCK

main83247-14711iRA60,63..RHD..GEN198305-198308

W/DIGITAL CLOCK

main83247-14730iRA60..ARL198108-198305

main83247-14731iRA60..ARL198305-198308

main83247-14750iRA60,TA60..LHD..(LT,ST)..GEN198108-198303

main83247-14751iRA60,TA60..LHD..(LT,ST)..GEN198303-198308

main83247-14770iTA60..ST..GEN198108-198303

W/DIGITAL CLOCK

main83247-14771iTA60..ST..GEN198303-198308

W/DIGITAL CLOCK

main83247-14790iRA61,63,TA60..LHD..EUR198108-198303

main83247-14791iRA61,63,TA60..LHD..EUR198303-198308

main83247-14810iRA60,63..LHD;RA61..LHD..EUG198108-198303

W/DIGITAL CLOCK

main83247-14811iRA60,63..LHD;RA61..LHD..EUG198303-198308

W/DIGITAL CLOCK

main83247-1B490iMA61..LHD..EUG198209-198303

GEN SPEC

main83247-1B491iMA61..SAA198303-198308

GEN SPEC

main83247-1B610iMA61..RHD198308-198512

W/DIGITAL SPEEDOMETER

main83247-1B630iMA61..LHD..(GEN,SAA)198308-198309

W/DIGITAL SPEEDOMETER

sub83247-1B670

main83247-1B650iMA61..LHD..EUR198308-198512

W/DIGITAL SPEEDOMETER

main83247-1B770iRA61..ST..GEN198308-198507

main83247-1B790iRA61..RHD..XT..GEN198308-198507

sub83247-1B690

main83247-1B810iAA63,RA61..RHD198308-198507

W/DIGITAL CLOCK

main83247-1B830iSA63198308-198408

main83247-1B850iTA60..GEN198308-198507

main83247-1B870iTA60..GEN198308-198507

W/DIGITAL CLOCK

main83247-1B890iRA61..LHD..GEN198308-198507

main83247-1D010iRA61..LHD..GEN198308-198507

W/DIGITAL CLOCK

main83247-1D030iAA63..LHD..GEN198308-198507

main83247-1D050iAA63,RA61,TA60..LHD..EUR198308-198507

main83247-1D070iAA63,TA60..EUG198308-198507

W/DIGITAL CLOCK

main83247-1D090iMA61..LHD..EUG198308-198512

main83247-1D110iRA61..SAA198308-198405

main83247-1D130iRA61..LHD..GEN198308-198405

main83247-1D330iMA61..LHD..(GEN,SAA)198309-198512

W/DIGITAL SPEEDOMETER

main83247-1D530iRA65198408-198507

main83247-1D550iRA61..SAA198405-198507

main83247-1D570iRA61..LHD..GEN198405-198507

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1B271iMA61..LHD198308-198512

W/DIGITAL SPEEDOMETER

main83247-1D270iMA61..LHD..4FC..EUG198308-198512

83109BULB, COMBINATION METER, NO.2

main83109-24010iMA61;AA63,RA6#,SA63..RHD198308-198512

12V 1.4W,GREEN CAP

main83109-24020×6iAA63,MA61,RA6#,SA63,TA60198308-198512

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-14350iRA60..ARL198108-198308

KM

main83110-14351iAA63..RHD198308-198507

KM

main83110-14360iRA60,63..RHD..(GT,XT)..GEN198108-198308

MILE

main83110-14361iRA61..RHD..XT..GEN198308-198507

MILE

main83110-14370iRA60,63..RHD..GEN198108-198308

KM

main83110-14371iRA61..RHD..GEN198308-198507

KM

main83110-14380iRA60..RHD..XT198108-198308

MILE

main83110-14381iAA63,RA61..RHD..(GT,XT)..GEN198308-198507

MILE

main83110-14390iRA60,63,TA60..LHD..GEN198108-198308

MILE

main83110-14391iRA61,TA60..LHD..GEN198308-198507

MILE

main83110-14400iMA61..SAA198305-198308

KM

main83110-14401iRA61,TA60..LHD..EUR198308-198507

KM

main83110-14410iRA63;RA60,TA60..LHD..(GEN,ME)198108-198308

KM

main83110-14411iRA61,TA60..LHD..GEN198308-198507

KM

main83110-14420iMA61..LHD..EUG198209-198305

GEN SPEC,MILE

main83110-14421iAA63..LHD..GEN198308-198507

MILE

main83110-14741iMA61..RHD198305-198308

GEN SPEC,KM

main83110-14751iMA61..LHD..EUG198305-198308

GEN SPEC,MILE

main83110-14820iMA61..LHD..EUG198308-198512

KM

main83110-14840iMA61..ARL,GEN,SA,SAA198308-198512

W/DIGITAL SPEEDOMETER

main83110-1B010iMA61..EUR198308-198512

W/DIGITAL SPEEDOMETER

main83110-1B051iRA61..SAA198308-198408

W/SPEEDO WARNING

main83110-1B052iRA61..SAA198408-198507

main83110-1B060iMA61..RHD198305-198308

MILE;GEN SPEC,MILE

main83110-1B070iMA61..LHD..EUG198305-198308

KM;GEN SPEC,KM

main83110-1B100iRA65,SA63198308-198507

KM

83128KNOB, TRIP COUNTER

main83128-10260iMA61198308-198512

W/DIGITAL SPEEDO METER

main83128-14510iAA63,MA61,RA6#,SA63,TA60198108-198512

83131DIAL, METER, NO.1

main83131-14250iRA60..RHD..ST..GEN198108-198308

KM

main83131-14270iRA60..RHD..XT198108-198308

KM

main83131-14290iRA60..RHD..GEN198108-198308

KM,W/DIGITAL CLOCK

main83131-14310iRA60..ARL198108-198308

main83131-14350iRA63..RHD198108-198308

KM

main83131-14370iRA60..RHD..XT198108-198308

MILE

main83131-14410iRA60,61..RHD..ST..(EUR,GEN)198108-198308

MILE

main83131-14430iRA60..RHD..GEN198108-198308

MILE,W/DIGITAL CLOCK

main83131-14450iRA63..RHD198108-198308

MILE

main83131-14470iMA61..RHD198112-198305

main83131-14490iTA60..GEN198108-198308

KM

main83131-14510iTA60..ST..GEN198108-198308

KM,W/DIGITAL CLOCK

main83131-14530iRA60..LHD..ST198108-198308

KM

main83131-14550iRA60..LHD..XT..GEN198108-198308

KM

main83131-14570iRA60..LHD..GEN198108-198308

KM,W/DIGITAL CLOCK

main83131-14590iTA60..EUG198108-198308

main83131-14610iTA60..ST..EUG198108-198308

W/DIGITAL CLOCK

main83131-14630iRA61..LHD198108-198308

main83131-14670iRA61..XT..SDZ198208-198308

W/DIGITAL CLOCK

main83131-14710iRA63..LHD..GEN198108-198308

KM

main83131-14730iRA63..EUG198108-198308

main83131-14750iRA63..EUG198108-198308

W/DIGITAL CLOCK

main83131-14770iMA61..LHD..EUG198112-198305

main83131-14790iRA60..ME198108-198308

main83131-14810iTA60..GEN198108-198308

MILE

main83131-14850iTA60..ST..GEN198108-198308

MILE,W/DIGITAL CLOCK

main83131-14870iRA60..LHD..ST198108-198308

MILE

main83131-1B010iRA60..LHD..XT..GEN198108-198308

MILE

main83131-1B030iRA60..LHD..GEN198108-198308

MILE,W/DIGITAL CLOCK

main83131-1B070iRA63..LHD..GEN198108-198308

MILE

main83131-1B670iMA61..SAA198208-198308

main83131-1B830iMA61..RHD198209-198305

KM,GEN SPEC

main83131-1B850iMA61..LHD..EUG198209-198305

MILE,GEN SPEC

main83131-1B870iMA61..LHD..EUG198209-198308

KM,GEN SPEC

main83131-1D020iRA61..SAA198308-198507

KM,W/SPEEDO WARNING

main83131-1D280iMA61..RHD..GEN198308-198512

MILE&KM,W/DIGITAL SPEEDOMETER

main83131-1D300iMA61..RHD..(GEN,SA)198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D320iMA61..LHD..GEN198308-198512

MILE&KM,W/DIGITAL SPEEDOMETER

main83131-1D330iMA61..RHD198305-198308

main83131-1D340iMA61..LHD..GEN198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D350iMA61..LHD..EUG198305-198308

main83131-1D360iMA61..SDZ198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D370iMA61..RHD198305-198308

KM,GEN SPEC

main83131-1D380iMA61..LHD..4FC..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D390iMA61..LHD..EUG198305-198308

MILE,GEN SPEC

main83131-1D400iMA61..LHD..5F..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D420iMA61..LHD..GEN198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D510iRA61..ST..GEN198308-198507

KM

main83131-1D520iMA61..RHD..4FC..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D530iRA61..RHD..XT..GEN198308-198507

KM

main83131-1D540iMA61..RHD..5F..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D550iRA61..RHD..GEN198308-198507

KM,W/DIGITAL CLOCK

main83131-1D560iMA61..ARL198308-198512

W/DIGITAL SPEEDOMETER

main83131-1D570iRA61..RHD..XT..GEN198308-198507

MILE

main83131-1D590iRA61..ST..GEN198308-198507

MILE

main83131-1D610iRA61..RHD198308-198507

MILE,W/DIGITAL CLOCK

main83131-1D630iSA63198308-198408

main83131-1D650iAA63..RHD198308-198507

KM

main83131-1D670iAA63..RHD198308-198507

MILE

main83131-1D690iTA60..GEN198308-198507

KM

main83131-1D710iTA60..GEN198308-198507

KM,W/DIGITAL CLOCK

main83131-1D730iTA60..GEN198308-198507

MILE

main83131-1D750iTA60..GEN198308-198507

MILE,W/DIGITAL CLOCK

main83131-1D760iMA61..LHD..4FC..EUG198308-198512

KM

main83131-1D770iRA61..LHD..GEN198308-198507

KM

main83131-1D780iMA61..LHD..5F..EUG198308-198512

KM

main83131-1D790iRA61..LHD..GEN198308-198507

KM,W/DIGITAL CLOCK

main83131-1D800iAA63..EUG198308-198507

KM,W/DIGITAL CLOCK

main83131-1D810iRA61..LHD..GEN198308-198507

MILE

main83131-1D820iAA63..EUG198308-198507

KM

main83131-1D830iRA61..LHD..GEN198308-198507

MILE,W/DIGITAL CLOCK

main83131-1D840iRA61..LHD..XT..EUR198308-198507

W/DIGITAL CLOCK

main83131-1D850iAA63..LHD..GEN198308-198507

KM

main83131-1D860iRA61..LHD..EUR198308-198507

KM

main83131-1D870iAA63..LHD..GEN198308-198507

MILE

main83131-1D880iTA60..EUG198308-198507

KM,W/DIGITAL CLOCK

main83131-1D890iTA60..EUG198308-198507

KM

main83131-1E010iRA65198408-198507

83132CASE, COMBINATION METER

main83132-14570iRA60,61..RHD..ST..(EUR,GEN)198108-198308

main83132-14590iRA60..RHD..XT198108-198308

main83132-14610iRA63..RHD198108-198308

KM OR MILE,W/DIGITAL CLOCK

main83132-14630iRA60..ARL198108-198308

main83132-14650iMA61..RHD198112-198305

main83132-14651iMA61..RHD198305-198308

main83132-14670iTA60..ST..GEN198108-198303

W/DIGITAL CLOCK

sub83132-14H90

main83132-14671iTA60..ST..GEN198303-198308

W/DIGITAL CLOCK

main83132-14690iRA60..LHD..XT..GEN198108-198303

sub83132-14H91

main83132-14691iRA60..LHD..XT..GEN198303-198308

main83132-14710iRA60..LHD..GEN198208-198303

W/DIGITAL CLOCK

sub83132-14H92

main83132-14711iRA60..LHD..GEN198303-198308

W/DIGITAL CLOCK

main83132-14730iRA63,TA60..EUG198107-198303

sub83132-14H93

main83132-14731iRA63,TA60..EUG198303-198308

main83132-14750iRA63,TA60..(GT,ST)..EUG198108-198303

W/DIGITAL CLOCK

sub83132-14H94

main83132-14751iRA63,TA60..(GT,ST)..EUG198303-198308

W/DIGITAL CLOCK

main83132-14770iRA61..LHD198108-198303

sub83132-14H95

main83132-14771iRA61..LHD198303-198308

main83132-14790iRA61..XT..SDZ198208-198303

W/DIGITAL CLOCK

sub83132-14H96

main83132-14791iRA61..XT..SDZ198303-198308

W/DIGITAL CLOCK

main83132-1B130iRA60,TA60..LHD..(LT,ST)..GEN198108-198303

main83132-1B150iMA61..LHD..EUG198112-198303

sub83132-1BH92

main83132-1B151iMA61..LHD..EUG198303-198308

main83132-1B210iRA63..LHD..GEN198112-198303

sub83132-1BH93

main83132-1B211iRA63..LHD..GEN198303-198308

main83132-1B330iMA61..SAA198208-198303

sub83132-1BH95

main83132-1B331iMA61..SAA198303-198308

main83132-1B350iRA60..ME198208-198303

sub83132-1BH96

main83132-1B351iRA60..ME198303-198308

main83132-1B370iMA61..LHD..EUG198209-198303

GEN SPEC

sub83132-1BH97

main83132-1B371iMA61..LHD..EUG198303-198308

GEN SPEC

main83132-1B431iRA60,TA60..LHD..(LT,ST)..GEN198303-198308

main83132-1B490iMA61..ARL198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B510iMA61..RHD..TWC198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B570iMA61..LHD..GEN198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B590iMA61..LHD..EUG198308-198507

W/DIGITAL SPEEDOMETER

main83132-1B610iMA61..SDZ198308-198512

W/DIGITAL SPEEDO METER

main83132-1B630iMA61..LHD..GEN198308-198512

W/DIGITAL SPEEDOMETER

main83132-1B750iRA61..ST..GEN198308-198507

main83132-1B770iRA61..RHD..XT..GEN198308-198507

main83132-1B790iRA61..RHD198308-198507

W/DIGITAL CLOCK

main83132-1B810iSA63198308-198408

main83132-1B830iAA63..RHD198308-198507

main83132-1B850iTA60..GEN198308-198507

main83132-1B870iTA60..GEN198308-198507

W/DIGITAL CLOCK

main83132-1B890iRA61..LHD..GEN198308-198507

main83132-1D010iRA61..LHD..GEN198308-198507

W/DIGITAL CLOCK

main83132-1D050iAA63..LHD..GEN198308-198507

main83132-1D070iTA60..EUG198308-198507

main83132-1D090iTA60..EUG198308-198507

W/DIGITAL CLOCK

main83132-1D110iRA61..LHD..EUR198308-198507

main83132-1D130iRA61..LHD..XT..EUR198308-198507

W/DIGITAL CLOCK

main83132-1D150iAA63..EUG198308-198507

W/DIGITAL CLOCK

main83132-1D170iMA61..LHD..EUG198308-198512

main83132-1D190iAA63..EUG198308-198507

main83132-1D210iRA61..SAA198308-198405

*ME

main83132-1D710iRA65198408-198507

main83132-1D730iRA61..SAA198405-198507

*ME

83133PLATE, COMBINATION METER, NO.1

main83133-14510iRA61..RHD..ST198108-198305

main83133-14511iRA61..ST..EUG198305-198308

main83133-14530iMA61,RA61..RHD..(SPR,XT)198108-198305

W/DIGITAL CLOCK

main83133-14531iAA63,RA6#,SA63..RHD198308-198507

W/DIGITAL CLOCK

main83133-14570iRA61..SAA198308-198507

main83133-14571iTA60..LT198303-198308

main83133-14590iRA60,61,TA60..LHD..(EUR,GEN)198108-198303

W/ANALOGUE CLOCK

main83133-14591iAA63..EUG198308-198507

W/ANALOGUE CLOCK

main83133-14610iRA61..LHD..EUG;MA61,RA60,63,TA60..LHD..(GT,SPR,ST,XT)198108-198303

W/DIGITAL CLOCK

main83133-14611iRA61..XT..SDZ198303-198507

W/DIGITAL CLOCK

main83133-14830iMA61..RHD..(ARL,GEN,SA)198308-198512

main83133-14930iMA61..LHD..GEN198308-198512

MILE&KM,W/DIGITAL SPEEDOMETER

main83133-1B090iMA61..RHD..(EUR,GEN)198308-198512

KM&MILE,W/DIGITAL SPEEDOMETER

main83133-1B110iMA61..LHD..(GEN,SAA)198308-198512

main83133-1B130iMA61..LHD..EUR198308-198512

W/DIGITAL SPEEDOMETER

83251METER, VOLTAGE

main83251-14510iRA61..EUG;MA61,RA60,63,TA60..GT,SPR,ST,XT198108-198308

main83251-14570iRA61..XT..SDZ198308-198507

83270TACHOMETER ASSY, ENGINE

main83242-14510iRA6#,SA63..RHD198108-198507

main83242-14530iMA61..RHD198112-198308

main83242-14550iRA60,61,63,TA60..LHD198108-198507

main83242-14570iMA61..LHD..4FC..EUG;MA61..LHD..5F..TWC..(EUR,SAA)198112-198512

main83242-14750iAA63..RHD198308-198507

main83242-14770iAA63..LHD198308-198507

main83270-14310iMA61..RHD..5F..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83270-14340iMA61..GEN,SA,SAA198308-198512

W/DIGITAL SPEEDOMETER

main83270-14380iMA61..LHD..5F..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83270-14390iMA61..LHD..4FC..EUG198308-198512

W/DIGITAL SPEEDOMETER

main83270-14400iMA61..EFI198308-198512

W/DIGITAL SPEEDOMETER

main83270-14420iMA61..RHD..4FC..EUG198308-198512

W/DIGITAL SPEEDOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-14510iAA63,MA61,RA6#,SA63,TA60198108-198512

main83310-14110iMA61..EUR,GEN,SA,SAA198308-198408

W/DIGITAL SPEEDOMETER

main83310-14111iMA61..EUR,GEN,SA,SAA198408-198409

W/DIGITAL SPEEDOMETER

main83310-14120iMA61..ARL198308-198408

W/DIGITAL SPEEDOMETER

main83310-14121iMA61..ARL198408-198512

W/DIGITAL SPEEDOMETER

main83310-14140iMA61..EUR,GEN,SA,SAA198409-198512

W/DIGITAL SPEEDOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-14510iMA61,RA6#,TA60..ARL,EUR,GEN198108-198308

main83244-14550iMA61,RA60..ME,SAA198108-198308

main83244-1B010iAA63,RA61,SA63..RHD198308-198408

main83244-1B050iAA63,RA61,TA60..LHD..(EUR,GEN)198308-198507

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14510iRA61..RHD..EUG198308-198507

main83551-14510iAA63,RA61,TA60..LHD..EUR198308-198507

83551GAGE, VACUUM

main83551-14510iMA61,RA61,63,TA60..LHD..EUR198108-198512

83909KNOB, CLOCK

main83909-14012iAA63,RA60,61,63,TA60198108-198507

ANALOGUE

main83909-22180iAA63,MA61,RA60,61,63,SA63,TA60..GT,GTS,SPR,ST,XT198108-198512

DIGITAL

83910CLOCK ASSY

main83910-14280iRA60,61..RHD..GEN198108-198507

ANALOGUE

main83910-14290iAA63..EUG198308-198507

ANALOGUE

main83910-14300iMA61,RA60,63,TA60..GT,SPR,ST,XT198108-198308

DIGITAL

main83910-14310iMA61..RHD198308-198512

W/DIGITAL SPEEDOMETER

main83910-14330iMA61..LHD198308-198512

W/DIGITAL SPEEDOMETER

83919SCREW, CLOCK

main83919-12230iAA63,MA61,RA6#,SA63,TA60..GT,GTS,SPR,ST,XT198108-198512

DIGITAL

main83919-14012iAA63,RA60,61,63,TA60198108-198507

ANALOGUE

9356755016

main93567-55016

20 parts on this diagram · 4 diagrams in section
