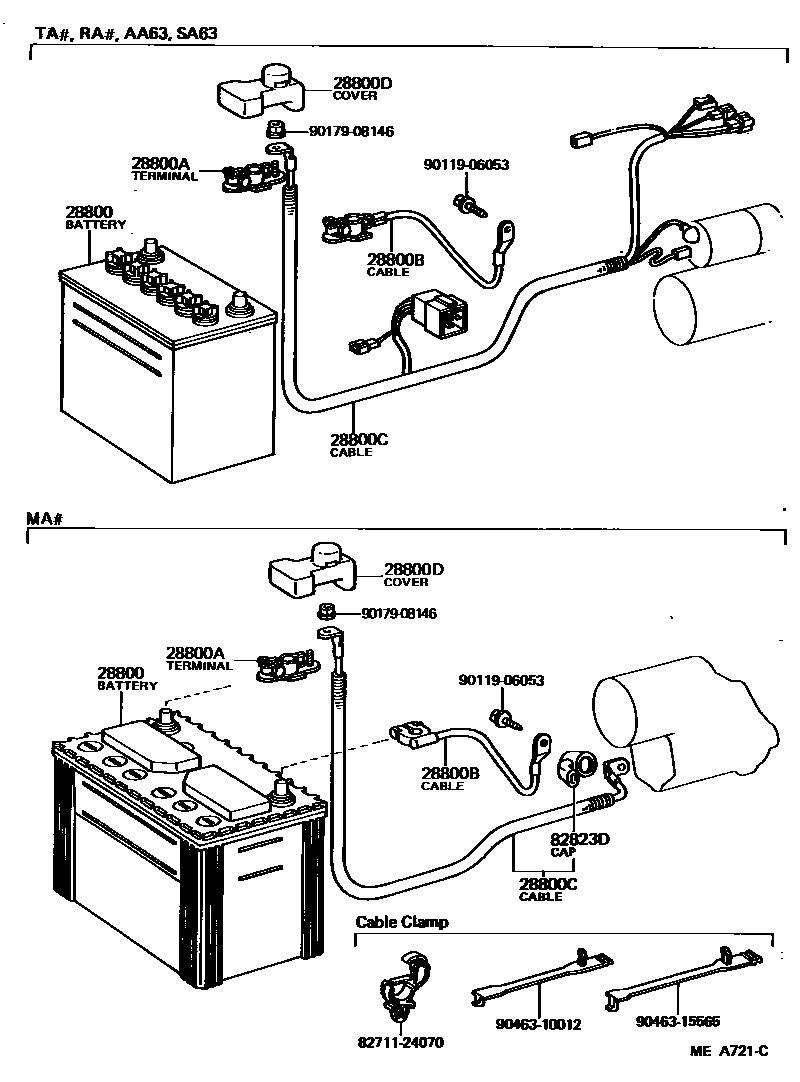

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15010i21R#..RA60,61..EUR,GEN198108-198507

55D23R,55D23R-MF(12V 60AH-20HR)

sub28800-14010

main28800-15050i5M#..MA61..EUR,GEN198502-198512

55D23L,55D23L-MF(12V 60AH-20HR)

sub28800-42030

main28800-24030i21R..RA60198108-198202

34B19R,NS40ZA(12V 33AH-20HR)

sub28800-24040

main28800-26040i18RG,2T#..RA63,TA60..GEN198108-198202

34B19L,NS40ZAL(12V 33AH-20HR)

sub28800-26050

main28800-31031i18RG,4AGE,2SC,2T#..AA63,RA63,SA63,TA60198108-198507

32C24L,N40L(12V 40AH-20HR)

sub28800-31021

main28800-31210i5MGE..MA61;5ME..MA61..ARL198502-198512

50D20L,50D20L-MF(12V 60AH-20HR)

main28800-33071i21R..RA61;21R#..RA60198108-198507

32C24R,N40(12V 40AH-20HR)

sub28800-33101

main28800-37011i21R..RA60198202-198507

34B19R,NS40ZA(12V 33AH-20HR)

sub28800-24030

main28800-43070i18RG,4AGE,2T#..AA63,RA63,TA60198108-198502

55D23L-MF(12V 60AH-20HR)

main28800-43090i5MGE..MA61;5ME..MA61..ARL198112-198502

50D20L-MF(12V 50AH-20HR)

sub28800-31190

main28800-45030i5M#..MA61..LHD..EUR198302-198502

N70ZL-MF(12V 70AH-20HR)

main28800-45050i5M#..MA61..LHD..EUR198502-198512

75D31L,N70ZL-MF(12V 70AH-20HR)

sub28800-42130

main28800-70011i18RG,4AGE,2T#..AA63,RA63,TA60..GEN198202-198507

34B19L,NS40ZAL(12V 33AH-20HR)

sub28800-74060

28800ATERMINAL, BATTERY POSITIVE

main90982-05018i21R,4AGE,2TB..AA63,RA61,TA60..GEN198108-198507

NS40ZA,NS40ZAL

sub90982-05028

main90982-05022i21R#,22REC,18RG,4AGE,2SC,2T#..AA63,RA6#,SA63,TA60198108-198507

N40,N40L,55D23R-MF,55D23L-MF

sub90982-05030

main90982-05022i5M#..MA61198112-198512

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02135i21R,18RG,2T#..RA60,63,TA60..GEN,ME198108-198204

NS40ZA,NS40ZAL

sub90982-02222

main90982-02136i21R#,18RG,2T#..RA6#,TA60198108-198204

N40,N40L,55D23R-MF,55D23L-MF

sub90982-02224

main90982-02222i21R,18RG,4AGE,2T#..AA63,RA60,61,63,TA60..GEN,ME,SAA198204-198507

NS40ZA,NS40ZAL

main90982-02224i21R#,22REC,18RG,4AGE,2SC,2T#..AA63,RA6#,SA63,TA60198204-198507

N40,N40L,55D23R-MF,55D23L-MF

main90982-02226i5M#..MA61198112-198512

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-14031i2T#..TA60198108-198308

STARTER=12V 0.8KW

sub82122-14340

main82122-14061i21R#..RA60,61198108-198308

main82122-14071i18RG..RA63198108-198112

main82122-14072i18RG..RA63198112-198308

main82122-14101i2T#..TA60198108-198308

STARTER=12V 1.0KW

main82122-14190i4AGE..AA63198308-198507

STARTER=12V 0.8KW

main82122-14200i4AGE..AA63198308-198507

STARTER=12V 1.0KW

main82122-14240i5ME..MA61..SDZ;5MGE..MA61..LHD..5F;5MGE..MA61..LHD..4FC..(GEN,SAA)198308-198512

main82122-14280i5MGE..MA61..LHD..4FC..EUG198308-198512

main82122-14340i2TB..TA60198308-198507

STARTER=12V 0.8KW

main82122-14350i2TB..TA60198308-198507

STARTER=12V 1.0KW

main82122-14400i21R#..RA61198308-198507

main82122-14420i2SC..SA63198308-198408

main82122-14470i22REC..RA65198408-198507

main82122-24030i5MGE..MA61..RHD..5F..EUG;5M#..MA61..RHD..(ARL,GEN,SA)198308-198512

main82122-24040i5MGE..MA61..RHD..4FC..EUG198308-198512

main90982-01376i5MGE..MA61198112-198308

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i21R#,22REC,18RG,4AGE,5MGE,2SC,2T#..AA63,MA61,RA6#,SA63,TA60198108-198512

82823DCAP, TERMINAL

main82823-14080iMA61198112-198512

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

9011906053

main90119-06053

9017908146

main90179-08146

9046310012

main90463-10012

9046315565

main90463-15565

11 parts on this diagram · 1 diagram in section
