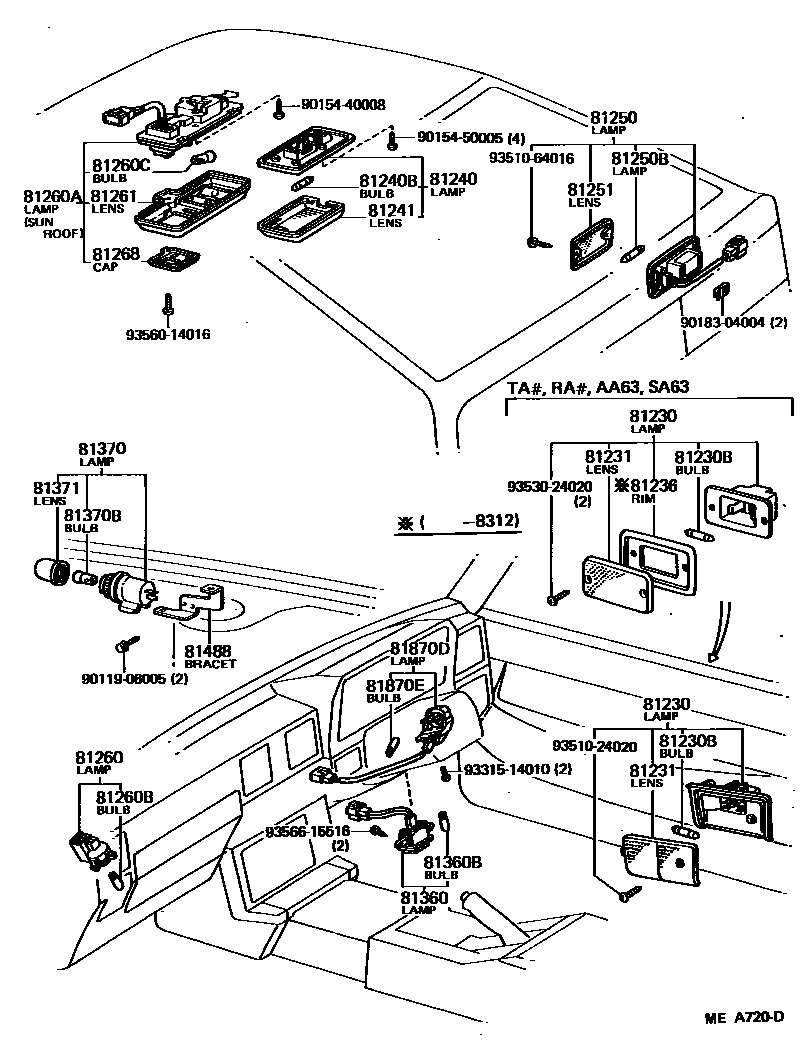

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14010-01iMA61..ARL,GEN,SAA198208-198512

RH,BLACK,BLACK,TRIM2#

main81230-14010-02iMA61..EUG198209-198308

RH,TERRACOTTA,GEN SPEC,RED/MAROON,TRIM3#

main81230-14010-04iMA61..ARL,GEN,SAA198208-198512

RH,BLUE,BLUE,TRIM8#

main81230-14010-12iMA61..ARL,GEN,SAA198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main81230-14020-01iMA61..EUR,SA198112-198512

RH,BLACK,BLACK,TRIM2#

main81230-14020-04iMA61..EUR,SA198112-198512

RH,BLUE,BLUE,TRIM8#

main81230-14020-06iMA61..EUR,SA198112-198512

RH,DARK BROWN,BROWN,TRIM4#

main81230-14030×2iAA63,RA61,SA63,TA60198308-198312

main81230-14040×2iAA63,RA6#,SA63,TA60198312-198507

main81310-14010-01iMA61..ARL,GEN,SAA198208-198512

LH,BLACK,BLACK,TRIM2#

main81310-14010-02iMA61..SAA198208-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

main81310-14010-04iMA61..EUG198209-198308

LH,BLUE,GEN SPEC,BLUE,TRIM8#

main81310-14010-12iMA61..ARL,GEN,SAA198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main81310-14020-01iMA61..EUR,SA198112-198512

LH,BLACK,BLACK,TRIM2#

main81310-14020-04iMA61..EUR,SA198112-198512

LH,BLUE,BLUE,TRIM8#

main81310-14020-06iMA61..EUR,SA198112-198512

LH,DARK BROWN,BROWN,TRIM4#

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iMA61,RA6#,TA60..GT,SPR,ST,XT198108-198308

12V 5W,12V 5W

81231LENS, COURTESY LAMP

main81231-14020iMA61..EUR198112-198512

RH

main81231-30020×2iRA6#,TA60..GT,ST,XT198108-198308

main81231-30100×2iAA63,RA6#,SA63,TA60198312-198507

main81237-14010iMA61..EUG198209-198308

RH,GENERAL COUNTRIES SPEC

main81311-14010iMA61..EUG198209-198308

LH,GENERAL COUNTRIES SPEC

main81311-14020iMA61..EUR198112-198512

LH

81236RIM, COURTESY LAMP

main81236-30010×2iRA6#,TA60..GT,ST,XT198108-198308

81240LAMP ASSY, ROOM, NO.1

main81240-16010-08iAA63,MA61,RA6#,SA63,TA60198108-198408

IVORY,IVORY,TRIM2#,3#,4#

sub81240-22060

main81240-16010-13iAA63,MA61,RA6#,TA60198408-198512

GRAY,GRAY,TRIM2#

sub81240-22060

main81240-16010-14iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub81240-22060

main81240-16010-35iAA63,MA61,RA6#,TA60198408-198512

BEIGE,BEIGE,TRIM4#

sub81240-22060

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iAA63,MA61,RA6#,SA63,TA60198108-198512

sub81241-20060

81250LAMP ASSY, ROOM, NO.2

main81250-14030-01iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLACK,BLACK,TRIM2#

main81250-14030-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main81250-14030-04iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLUE,BLUE,TRIM8#

main81250-14030-06iAA63,RA6#,SA63,TA60..LB198108-198507

DARK BROWN,BROWN,TRIM4#

main81250-14030-12iMA61..SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

81260LAMP ASSY, GLOVE BOX

main81260-22070iAA63,MA61,RA6#,SA63,TA60..GT,GTS,SPR,ST,XT198108-198512

81260ALAMP ASSY, MAP

main81260-14060-03iAA63,MA61,RA6#,TA60198408-198512

GRAY,W/SUN ROOF,GRAY,TRIM2#

main81260-14060-04iAA63,MA61,RA6#,SA63,TA60198308-198512

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81260-14060-05iAA63,MA61,RA6#,TA60198408-198512

BEIGE,W/SUN ROOF,BEIGE,TRIM4#

main81260-14060-08iAA63,MA61,RA61,SA63,TA60198308-198408

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

main81260-20060-04iMA61,RA6#,TA60198108-198308

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81260-20060-08iMA61,RA6#,TA60198108-198308

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

81260BBULB(FOR GLOVE BOX)

main90981-11018iAA63,MA61,RA6#,SA63,TA60..GT,GTS,SPR,ST,XT198108-198512

12V 1.2W W/O SOCKET,12V 1.2W

81260CBULB(FOR MAP LAMP)

main90981-12014iAA63,MA61,RA6#,SA63,TA60198308-198512

12V 10W,12V 8W,W/SUN ROOF

main99132-11100iMA61,RA6#,TA60198108-198308

12V 10W,12V 10W,W/SUN ROOF

81261LENS AND COVER, MAP LAMP

main81261-20060-04iMA61,RA6#,TA60198108-198308

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81261-20060-08iMA61,RA6#,TA60198108-198308

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

main81261-20061-04iAA63,MA61,RA6#,SA63,TA60198308-198512

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81261-20061-08iAA63,MA61,RA6#,SA63,TA60198308-198512

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

81268CAP MAP LAMP

main81268-20060-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81268-20060-08iAA63,MA61,RA6#,SA63,TA60198108-198512

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

81360LAMP ASSY, STEP OR SPOT

main81380-14010iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

81360BBULB, STEP OR SPOT LAMP

main90981-11018iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

12V 1.2W W/O SOCKET,12V 1.4W

81370LAMP ASSY, INSPECTION

main81370-20010iAA63..GT;MA61..TWC198308-198512

81370BBULB, INSPECTION LAMP

main99132-11075iAA63..GT;MA61..TWC198308-198512

12V 7.5W,12V 7.5W

81371LENS, INSPECTION LAMP

main81371-20010iMA61,RA63198108-198308

81488BRACKET, INSPECTION LAMP

main81488-14070iMA61..TWC198112-198507

main81488-14080iAA63,RA63..LHD..GT198108-198507

main81488-14090iAA63,RA63..RHD198108-198507

81870EBULB, KEY CYLINDER LAMP

main90981-11018iMA61,RA6#..GT,SPR,XT198108-198308

12V 1.2W W/O SOCKET,12V 1.4W

9011906005

main90119-06005

9015440008

main90154-40008

9015450005

main90154-50005

9018304004

main90183-04004

9331514010

main93315-14010

9351024020

main93510-24020

9351064016

main93510-64016

9353024020

main93530-24020

9356014016

main93560-14016

9356615516

main93566-15516

33 parts on this diagram · 1 diagram in section
