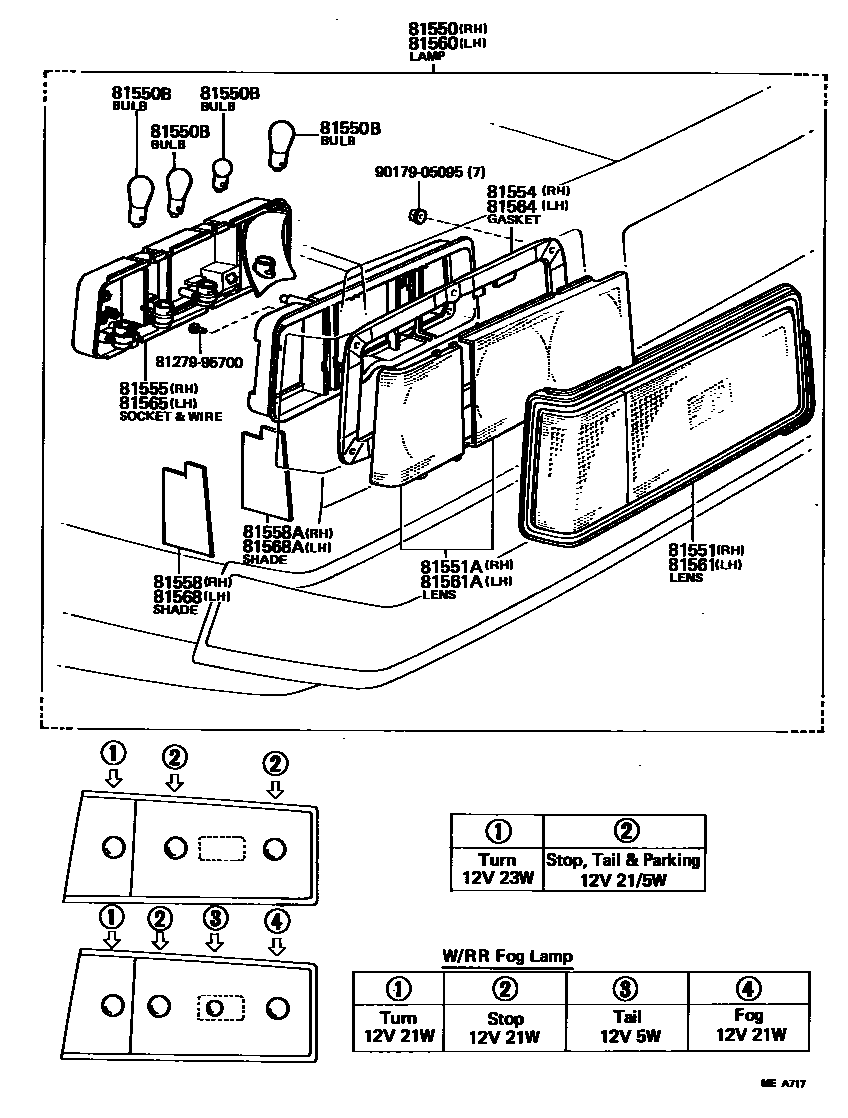

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0011 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80099iAA63,RA6#,SA63,TA60..CP..(ARL,GEN)198308-198507

LICENSE LAMP=BUMPER

main81550-80100iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81550-80102iMA61,RA60,63,TA60..LB..(ARL,GEN,ME,SAA)198108-198308

main81550-80103iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81550-80105iMA61..EUG198209-198303

GEN SPEC,W/LICENSE LAMP

main81550-80189iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

sub81550-14471

main81550-80190iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

sub81550-14481

main81550-80193iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81550-80194iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

sub81550-14511

main81550-80207iMA61..EUG198303-198308

GEN SPEC,W/LICENSE LAMP

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12013×2iMA61..GEN,SAA198502-198512

12V 10W,12V 10W

main99132-11100×2iMA61..SAA198208-198308

12V 10W,12V 10W

main99132-11210×6iAA63,MA61,RA61,63,TA60..EUR198108-198512

12V 21W,12V 21W,W/RR FOG LAMP

main99132-11230×4iMA61,RA60,63,TA60..ARL,GEN,ME,SAA198108-198308

12V 23W,12V 23W

main99132-21210×4iAA63,MA61,RA6#,SA63,TA60198108-198512

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-14430iAA63,RA6#,SA63,TA60..CP..(ARL,GEN)198308-198507

LICENSE LAMP=BUMPER

main81551-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81551-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81551-14470iMA61,RA60,63,TA60..LB..(ARL,GEN,ME,SAA)198108-198308

main81551-14471iMA61..ARL,GEN,SA198308-198512

main81551-14480iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81551-14481iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

main81551-14510iMA61..EUG198209-198303

GEN SPEC,W/LICENSE LAMP

main81551-14511iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

main81551-14620iMA61..EUG198303-198308

GEN SPEC,W/LICENSE LAMP

81551ALENS, REAR COMBINATION LAMP, RH

main81552-14430iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198202

main81552-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81552-14460iAA63,RA6#,SA63,TA60..CP..(ARL,GEN)198308-198507

LICENSE LAMP=BUMPER

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-14480iAA63,MA61,RA61,63,TA60..LB..EUR198108-198512

W/RR FOG LAMP

main81552-14510iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

main81554-14430iAA63,RA6#,SA63,TA60..CP198108-198507

main81554-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81554-14470iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14430iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198308

main81555-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81555-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81555-14470iMA61,RA60,63,TA60..LB..(ARL,GEN,ME,SAA)198108-198308

main81555-14471iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

main81555-14480iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81555-14481iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

main81555-14510iMA61..SAA198208-198308

W/LICENSE LAMP

main81555-14511iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81556-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80103iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198308

LICENSE LAMP=BUMPER

main81560-80104iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81560-80106iMA61,RA60,63,TA60..LB..(ARL,GEN,ME,SAA)198108-198308

main81560-80107iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81560-80109iMA61..EUG198209-198303

GEN SPEC,W/LICENSE LAMP

main81560-80194iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

sub81560-14471

main81560-80195iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

sub81560-14481

main81560-80198iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81560-80199iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

sub81560-14511

main81560-80212iMA61..EUG198303-198308

GEN SPEC,W/LICENSE LAMP

81561LENS, REAR COMBINATION LAMP, LH

main81561-14430iAA63,RA6#,SA63,TA60..CP..(ARL,GEN)198308-198507

LICENSE LAMP=BUMPER

main81561-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81561-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81561-14470iMA61..EUG198209-198308

GEN SPEC

main81561-14471iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

main81561-14480iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81561-14481iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

main81561-14510iMA61..SAA198208-198303

W/LICENSE LAMP

main81561-14511iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

main81561-14620iMA61..EUG198303-198308

GEN SPEC,W/LICENSE LAMP

81561ALENS, REAR COMBINATION LAMP, LH

main81562-14430iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198202

main81562-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81562-14460iAA63,RA6#,SA63,TA60..CP..(ARL,GEN)198308-198507

LICENSE LAMP=BUMPER

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-14480iAA63,MA61,RA61,63,TA60..LB..EUR198108-198512

W/RR FOG LAMP

main81552-14510iMA61..SAA198208-198308

W/LICENSE LAMP

main81554-14430iAA63,RA6#,SA63,TA60..CP198108-198507

main81554-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81554-14470iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

main81564-14470iMA61..EUG198209-198308

GEN SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-14430iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198308

main81565-14431iRA61..CP..LHD..(GEN,SAA)198308-198507

LICENSE LAMP=LOWER BACK PANEL

main81565-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

main81565-14470iMA61,RA60,63,TA60..LB..(ARL,GEN,ME,SAA)198108-198308

main81565-14471iMA61..ARL,GEN,SA198308-198512

main81565-14480iMA61,RA61,63,TA60..LB..EUR198108-198308

W/RR FOG LAMP

main81565-14481iAA63,MA61,RA61,TA60..LB..EUR198308-198512

W/RR FOG LAMP

main81565-14510iMA61..SAA198208-198308

W/LICENSE LAMP

main81565-14511iMA61..GEN,SAA198308-198512

W/LICENSE LAMP

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81556-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-14450iAA63,RA61,63,TA60..CP..EUR198108-198507

W/RR FOG LAMP

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9017905095

main90179-05095

17 parts on this diagram · 8 diagrams in section
