HEADLAMP

81110HEADLAMP ASSY, RH

main81110-80130iAA63,RA61..RHD..GEN198308-198507

KOITO

main81110-80131iAA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)198108-198507

KOITO

sub81110-14700

main81110-80132iAA63,RA61..RHD..GEN198308-198507

IKI

main81110-80134iRA61,63,TA60..LHD..EUR198108-198308

HALOGEN SEMI-SEALED,WHITE

main81110-80135iRA61..LHD..EUG;RA60,63,TA60..LHD..(EUR,GEN)198108-198308

HALOGEN SEMI-SEALED,YELLOW

main81110-80136iRA6#..RHD..(EUR,GEN)198108-198308

SEMI-SEALED,WHITE

main81110-80137iRA6#..RHD198108-198308

HALOGEN SEMI-SEALED,WHITE

main81110-80138iRA60,63,TA60..LHD..(GEN,ME)198108-198308

HALOGEN SEALED BEAM

main81110-80143iRA61..LHD..EUG;RA60,63,TA60..LHD..(EUR,GEN)198108-198308

SEMI-SEALED,WHITE

main81110-80144iAA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)198108-198507

IKI

sub81110-14870

main81110-80284iAA63,RA61,TA60..LHD..(GEN,SAA)198308-198507

HALOGEN,SEALED BEAM

sub81110-14781

main81110-80350iAA63,TA60..(GTS,ST)..EUG198308-198507

SEMI-SEALED,WHITE

sub81110-14851

main81110-80351iRA61..RHD..EUG198308-198507

NATO SPEC,HALOGEN,WHITE

sub81110-14741

main81110-80352iRA61..RHD..EUG198308-198507

HALOGEN,SEMI-SEALED,YELLOW

sub81110-14751

main81110-80353iAA63,RA61..RHD..GEN198308-198507

BAHAMA SPEC,SEMI-SEALED,WHITE

sub81110-14761

main81110-80354iAA63,RA61,TA60..LHD..GEN198308-198507

HALOGEN,SEMI-SEALED,WHITE

sub81110-14771

main81150-80127iMA61..RHD..(EUR,GEN)198112-198512

KOITO

main81150-80128iMA61..RHD..EUG198308-198512

NATO SPEC,KOITO

sub81150-14700

main81150-80129iMA61..LHD..GEN198308-198512

BAHAMA SPEC,IKI

main81150-80131iMA61..LHD..EUG198112-198308

HALOGEN SEMI-SEALED,WHITE

main81150-80132iMA61..LHD..EUG198112-198308

HALOGEN SEMI-SEALED,YELLOW

main81150-80134iMA61..RHD198112-198308

HALOGEN,SEMI-SEALED,WHITE

main81150-80135iMA61..SAA198208-198308

HALOGEN,SEALED BEAM

main81150-80141iMA61..RHD..EUG198308-198512

NATO SPEC,IKI

sub81150-14870

main81150-80281iMA61..LHD..(GEN,SAA)198308-198512

HALOGEN,SEALED BEAM

sub81150-14781

main81150-80347iMA61..LHD..GEN198308-198512

SEMI-SEALED,WHITE

sub81150-14851

main81150-80348iMA61..LHD..EUR198308-198512

NATO SPEC,HALOGEN,WHITE

sub81150-14741

main81150-80349iMA61..LHD..TWC..(EUR,GEN)198308-198512

HALOGEN,SEMI-SEALED,YELLOW

sub81150-14751

main81150-80350iMA61..LHD..GEN198308-198512

BAHAMA SPEC,SEMI-SEALED,WHITE

sub81150-14761

main81150-80351iMA61..LHD..GEN198308-198512

BAHAMA SPEC,HALOGEN,WHITE

sub81150-14771

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iAA63,MA61,RA61,TA60..GEN198308-198512

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13015×2iMA61..RHD..GEN;RA61..LHD..EUR;AA63,RA6#,SA63..RHD;AA63,MA61,RA63,TA60..ARL,EUR,SA198108-198512

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN WHITE

sub90981-13058

main90981-13016×2iRA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..LHD..TWC..(EUR,GEN);RA61..LHD..4FC..(EUR,GEN);AA63,RA60,63,TA60..LHD..(EUR,GEN)198108-198512

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN YELLOW

sub90981-13H01

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-14060iAA63,RA61,TA60..(GT,ST,XT)..EUG198308-198507

main81110-80148iRA6#,TA60..EUR,GEN198108-198308

main81150-80145iMA61..EUG198112-198308

81110SSEALED BEAM UNIT, NO.1

main90981-04001×2iAA63,MA61,RA61,TA60..LHD..GEN198308-198512

12V 65/55W,*WB,BAHAMA SPEC,12V 65/55W,KOITO

sub90981-04H21

sub90981-04H22

main90981-04002×2iMA61,RA60,63..RHD..(EUR,GEN)198108-198308

12V 65/55W,IKI

sub90981-04029

main90981-04003×2iMA61..LHD..TWC198112-198512

12V 65/55W,*WB,12V 65/55W,IKI

main90981-04004×2iMA61..LHD..TWC198112-198512

12V 65/55W,*WB,12V 65/55W,KOITO

main90981-04005×2iRA6#..RHD..(EUR,GEN)198108-198308

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04006×2iRA61..LHD..EUG;RA60,63,TA60..LHD..(EUR,GEN)198108-198308

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04008×2iMA61,RA61,63,TA60..LHD..EUR198108-198308

12V 60/55W,*HWS,12V 60/55W,HALOGEN *SSB,WHITE

main90981-04009×2iRA61..LHD..EUG;MA61,RA60,63,TA60..LHD..(EUR,GEN)198108-198308

12V 60/55W,*HYS,12V 60/55W,HALOGEN *SSB,YELLOW

main90981-04011×2iMA61,RA6#..RHD198108-198308

12V 60/55W,*HWS,12V 60/55W,HALOGEN *SSB,WHITE

main90981-04016×2iMA61,RA60,63,TA60..LHD..(GEN,ME,SAA)198108-198308

12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN SEALED BEAM

sub90981-04043

main90981-04020×2iAA63,MA61,RA61,TA60..LHD..(GEN,SAA)198308-198512

12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN,SEALED BEAM

main90981-04022×2iAA63,MA61,RA61,TA60..LHD..GEN198308-198512

12V 45/40W,*SSB,WHITE

main90981-04023×2iAA63,MA61,RA61,TA60..LHD..GEN198308-198512

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04024×2iAA63,MA61,RA61,TA60..LHD..GEN198308-198512

12V 60/55W,*HWS,12V 60/55W,HALOGEN,*SSB,WHITE

main90981-04025×2iMA61,RA61..RHD..EUG198308-198512

12V 60/55W,*HWS,12V 60/55W,HALOGEN,*SSB,WHITE

main90981-04026×2iMA61,RA61..RHD..EUG198308-198512

12V 60/55W,*HYS,12V 60/55W,HALOGEN,*SSB,YELLOW

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14710iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

IKI

main81111-16020iAA63,MA61,RA6#,SA63,TA60198108-198512

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14670iAA63,RA6#,SA63,TA60198108-198507

KOITO

main81113-14710iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

IKI

main81153-14670iMA61198112-198512

KOITO

main81153-14710iMA61..TWC..(EUR,GEN,SAA)198112-198512

IKI

81121SPRING, HEADLAMP TENSION

main81121-14670×2iAA63,MA61,RA6#,SA63,TA60198108-198512

KOITO

main81121-14710×2iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-14670×4iAA63,MA61,RA6#,SA63,TA60198108-198512

KOITO

main81131-14710×4iMA61..TWC..(EUR,GEN,SAA)198112-198512

IKI

81150HEADLAMP ASSY, LH

main81110-80130iMA61..LHD..GEN198308-198512

BAHAMA SPEC,KOITO

main81110-80131iMA61..LHD..TWC198112-198512

KOITO

sub81110-14700

main81110-80132iMA61..LHD..GEN198308-198512

BAHAMA SPEC,IKI

main81110-80134iMA61..LHD..EUG198112-198308

HALOGEN SEMI-SEALED,WHITE

main81110-80135iMA61..LHD..EUG198112-198308

HALOGEN,SEMI-SEALED,YELLOW

main81110-80137iMA61..RHD198112-198308

HALOGEN SEMI-SEALED,WHITE

main81110-80138iMA61..SAA198208-198308

HALOGEN,SEALED BEAM

main81110-80144iMA61..LHD..TWC198112-198512

IKI

sub81110-14870

main81110-80284iMA61..LHD..(GEN,SAA)198308-198512

HALOGEN,SEALED BEAM

sub81110-14781

main81110-80350iMA61..LHD..GEN198308-198512

SEMI-SEALED,WHITE

sub81110-14851

main81110-80351iMA61..LHD..EUR198308-198512

NATO SPEC,HALOGEN,WHITE

sub81110-14741

main81110-80352iMA61..LHD..TWC..(EUR,GEN)198308-198512

HALOGEN,SEMI-SEALED,YELLOW

sub81110-14751

main81110-80353iMA61..LHD..GEN198308-198512

BAHAMA SPEC,SEMI-SEALED,WHITE

sub81110-14761

main81110-80354iMA61..LHD..GEN198308-198512

HALOGEN,SEMI-SEALED,WHITE

sub81110-14771

main81150-80127iAA63,RA61..RHD..GEN198308-198507

KOITO

main81150-80128iAA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)198108-198507

KOITO

sub81150-14700

main81150-80129iAA63,RA61..RHD..GEN198308-198507

IKI

main81150-80131iRA61,63,TA60..LHD..EUR198108-198308

HALOGEN SEMI-SEALED,WHITE

main81150-80132iRA61..LHD..EUG;RA60,63,TA60..LHD..(EUR,GEN)198108-198308

HALOGEN SEMI-SEALED,YELLOW

main81150-80133iRA6#..RHD..(EUR,GEN)198108-198308

SEMI-SEALED,WHITE

main81150-80134iRA6#..RHD198108-198308

HALOGEN SEMI-SEALED,WHITE

main81150-80135iRA60,63,TA60..LHD..(GEN,ME)198108-198308

HALOGEN SEALED BEAM

main81150-80140iRA61..LHD..EUG;RA60,63,TA60..LHD..(EUR,GEN)198108-198308

SEMI-SEALED,WHITE

main81150-80141iAA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)198108-198507

IKI

sub81150-14870

main81150-80281iAA63,RA61,TA60..LHD..(GEN,SAA)198308-198507

HALOGEN,SEALED BEAM

sub81150-14781

main81150-80347iAA63,TA60..(GTS,ST)..EUG198308-198507

SEMI-SEALED,WHITE

sub81150-14851

main81150-80348iRA61..RHD..EUG198308-198507

NATO SPEC,HALOGEN,WHITE

sub81150-14741

main81150-80349iRA61..RHD..EUG198308-198507

HALOGEN,SEMI-SEALED,YELLOW

sub81150-14751

main81150-80350iAA63,RA61..RHD..GEN198308-198507

BAHAMA SPEC,SEMI-SEALED,WHITE

sub81150-14761

main81150-80351iAA63,RA61,TA60..LHD..GEN198308-198507

HALOGEN,SEMI-SEALED,WHITE

sub81150-14771

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04818-14060iAA63,RA61,TA60..(GT,ST,XT)..EUG198308-198507

main81110-80148iMA61198112-198308

main81150-80145iRA6#,TA60..EUR,GEN198108-198308

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14710iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

IKI

main81111-16020iAA63,MA61,RA6#,SA63,TA60198108-198512

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-14670iMA61198112-198512

KOITO

main81113-14710iMA61..TWC..(EUR,GEN,SAA)198112-198512

IKI

main81153-14670iAA63,RA6#,SA63,TA60198108-198507

KOITO

main81153-14710iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

IKI

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-14010iRA6#,TA60198108-198209

main85660-14011iRA6#,TA60198209-198308

main85660-14020iMA61198112-198209

main85660-14021iMA61198209-198308

main85660-14022iMA61198308-198512

main85660-14030iAA63,RA6#,SA63,TA60198308-198507

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-14010iRA6#,TA60198108-198209

main85690-14011iRA6#,TA60198209-198308

main85690-14020iMA61198112-198209

main85690-14021iMA61198209-198308

main85690-14022iMA61198308-198512

main85690-14030iAA63,RA6#,SA63,TA60198308-198507

8113114870SCREW, HEADLAMP ADJUSTING

main81131-14870

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

9165160650

main91651-60650

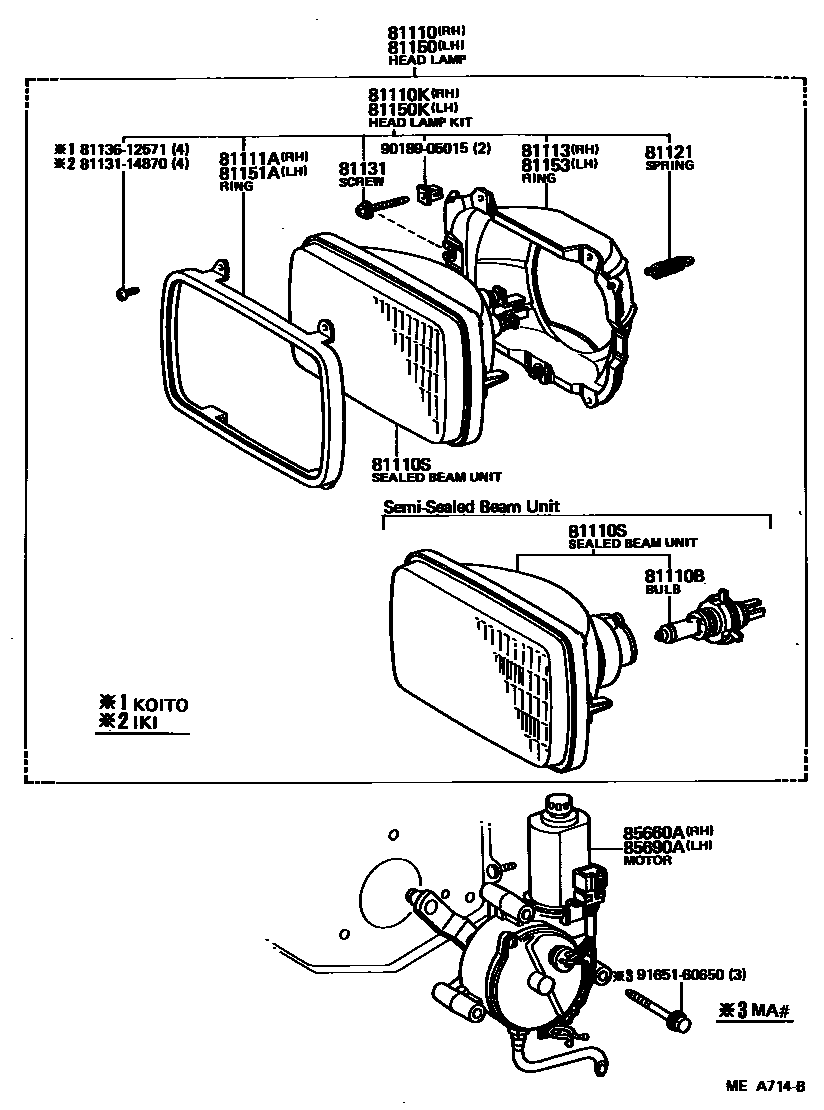

18 parts on this diagram · 1 diagram in section
