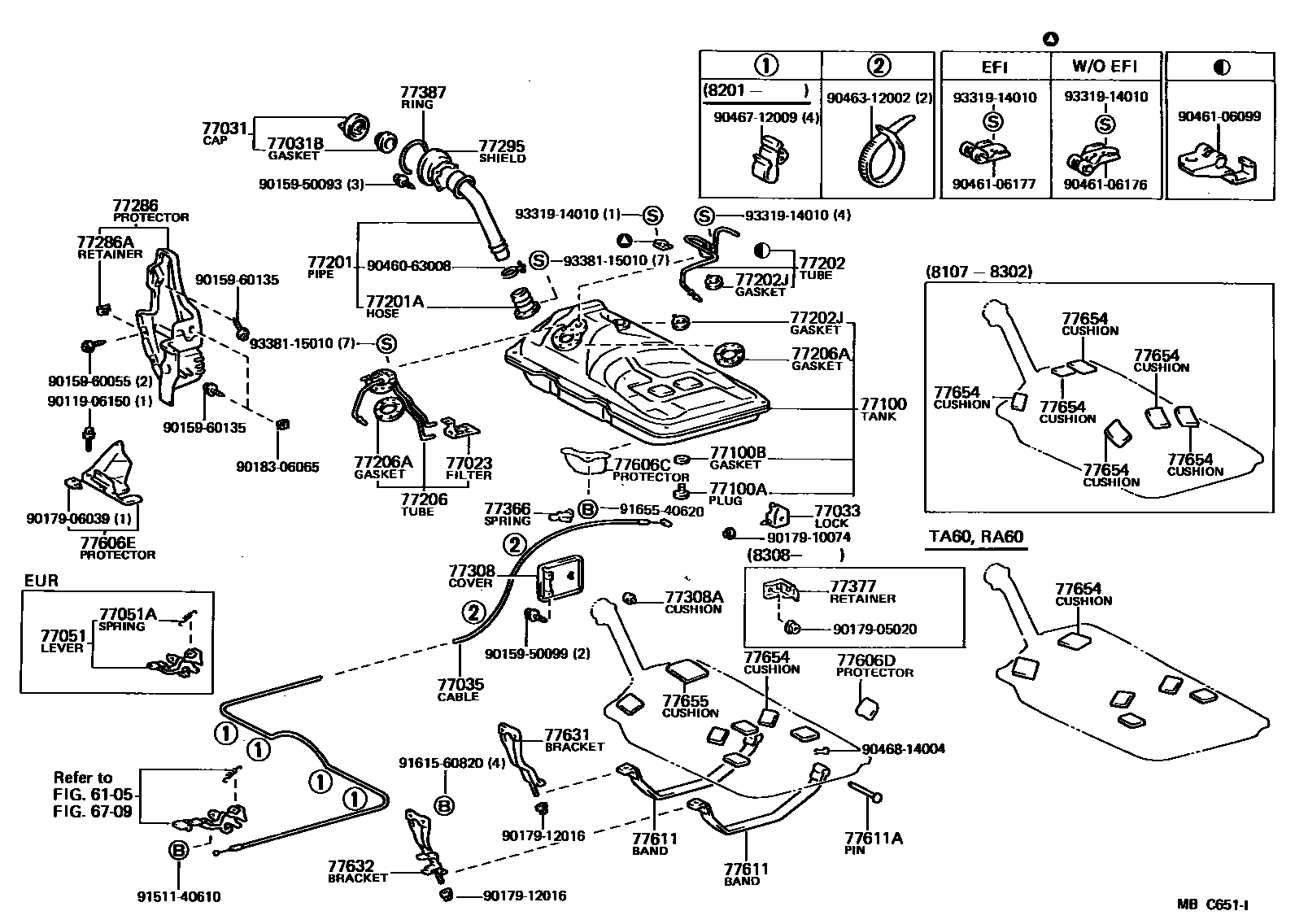

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

6105

6709

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRA6#,SA63,TA60¥920198108-198312

main77023-14030iRA61,SA63,TA60¥1,020198312-198507

main77023-30010iMA61¥1,010198112-198308

77031CAP ASSY, FUEL TANK

main77310-12100iAA63,MA61,RA6#,SA63,TA60¥2,320198108-198512

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAA63,MA61,RA6#,SA63,TA60¥310198108-198512

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iMA61,RA6#,TA60¥1,350198304-198512

sub77037-90K00¥1,610

main77037-24010iRA6#,TA60..ARL,EUR,GEN¥1,940198108-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14070iAA63,RA60,61,63,TA60..CP..LHD¥2,230198108-198507

main77035-14090iAA63,MA61,RA6#,SA63..LB..RHD..(ARL,EUR,GEN)¥1,690198108-198512

main77035-14110iAA63,RA6#,SA63..CP..RHD¥1,620198108-198507

sub77035-14090¥1,690

main77035-14130iRA6#,TA60..LB..LHD..(EUR,GEN)¥2,270198108-198512

sub77035-14200¥2,600

77051LEVER SUB-ASSY, FUEL LID OPEN

main77306-14010iMA61,RA61..RHD..EUG¥2,840198108-198512

main77306-14020iAA63,MA61,RA61,63,TA60..LHD..EUR¥2,840198108-198512

77051ASPRING, TENSION (FOR FUEL LID LEVER)

main90506-09004iAA63,MA61,RA61,63,TA60..EUR¥200198108-198512

77100TANK ASSY, FUEL

main77001-19095iRA60,TA60¥50,800198108-198307

sub77001-19096¥61,300

sub77012-14023¥2,100

main77001-19096iRA60,TA60¥61,300198307-198507

main77001-19105iMA61¥50,800198112-198307

sub77001-19107¥46,200

sub77012-14041¥3,040

main77001-19107iAA63,MA61,RA65¥46,200198307-198512

main77001-19115iRA61,63¥46,200198108-198307

sub77001-19116¥45,800

sub77012-14041¥3,040

main77001-19116iRA61,63,SA63¥45,800198307-198507

77100APLUG(FOR FUEL TANK)

main90341-20003iAA63,MA61,RA6#,SA63,TA60¥380198208-198412

OD=20

sub90341-20004¥360

main90341-20004iAA63,MA61,RA6#,TA60¥360198412-198512

main90341-24036iMA61,RA6#,TA60¥890198108-198208

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-20006iAA63,MA61,RA6#,SA63,TA60¥210198208-198412

ID=20.3

main90430-20007iAA63,MA61,RA6#,TA60¥220198412-198512

main90430-24047iMA61,RA6#,TA60¥250198108-198208

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iRA60,TA60¥7,900198108-198507

main77201-14220iAA63,MA61,RA61,63,65,SA63¥8,800198108-198512

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iAA63,MA61,RA6#,SA63,TA60¥11,000198108-198512

77202TUBE SUB-ASSY, BREATHER

main77012-14022iRA60,TA60¥2,110198108-198307

sub77012-14023¥2,100

main77012-14023iRA60,TA60¥2,100198307-198507

main77012-14040iMA61,RA61,63¥2,730198108-198307

sub77012-14041¥3,040

main77012-14041iAA63,MA61,RA61,63,65,SA63¥3,040198307-198512

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iAA63,MA61,RA6#,SA63,TA60¥230198108-198512

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iRA60¥3,100198108-198507

main77203-14061iTA60..GEN¥3,320198108-198507

main77203-14080iRA61,SA63¥3,080198108-198507

main77203-14100iTA60..EUG¥4,040198108-198306

main77203-14130iRA63198108-198308

main77203-24010iMA61¥6,200198112-198308

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14010iMA61¥230198112-198308

main77169-14020iRA60,61,63,SA63,TA60¥330198108-198507

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14090iRA60,TA60¥2,170198108-198507

main77277-14100iAA63,MA61,RA61,63,65,SA63¥2,490198108-198512

77286ARETAINER, FUEL FILLER PIPE PROTECTOR

main90183-06006iAA63,MA61,RA6#,SA63,TA60¥270198108-198512

77295SHIELD, FUEL FILLER PIPE

main77034-14010iAA63,MA61,RA6#,SA63,TA60¥2,210198108-198512

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iMA61,RA6#,TA60¥2,680198108-198507

main77350-91D01iMA61¥6,500198308-198512

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009iAA63,MA61,RA6#,SA63,TA60¥230198108-198512

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAA63,MA61,RA6#,SA63,TA60¥260198108-198512

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iMA61¥930198308-198512

77387RING, FUEL INLET BOX

main77391-14020iAA63,MA61,RA6#,SA63,TA60¥160198108-198512

77606CPROTECTOR, FUEL TANK, NO.2

main77642-14030iMA61,RA61..SAA198308-198512

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14030iMA61,RA61..SAA¥470198308-198512

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iAA63,MA61,RA6#,SA63,TA60¥3,100198108-198512

77611BAND, FUEL TANK

main77601-14060iRA60,TA60¥2,350198108-198512

RH

sub77601-14050¥2,350

main77602-14030iMA61,RA61..SAA¥2,570198108-198512

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAA63,MA61,RA6#,SA63,TA60¥250198108-198512

77631BRACKET, FUEL TANK, NO.1

main77613-14021iRA60,TA60¥1,470198108-198112

sub77613-14022¥1,470

main77613-14022iRA60,TA60¥1,470198112-198507

main77613-14040iAA63,MA61,RA61,63,65,SA63¥2,490198108-198512

77632BRACKET, FUEL TANK, NO.2

main77614-14021iRA60,TA60¥1,820198108-198507

main77614-14040iAA63,MA61,RA61,63,65,SA63¥2,260198108-198512

77654CUSHION, FUEL TANK, NO.2

main77652-14060iMA61,RA6#,TA60198108-198302

120X70

main77652-14080iAA63,MA61,RA6#,SA63,TA60198302-198512

main77652-20010iMA61,RA6#,TA60¥650198108-198302

120X120

77655CUSHION, FUEL TANK, NO.3

main77652-14090iAA63,MA61,RA61,63,65,SA63198302-198512

9011906150

main90119-06150¥250

9015950093

main90159-50093¥120

9015950099

main90159-50099¥110

9015960055

main90159-60055¥240

9015960135

main90159-60135¥330

9017905020

main90179-05020¥140

9017906039

main90179-06039¥260

9017910074

main90179-10074¥110

9017912016

main90179-12016¥140

9018306065

main90183-06065¥110

9046063008

main90460-63008¥400

9046106099

main90461-06099¥870

9046106176

main90461-06176¥590

9046106177

main90461-06177¥590

9046312002

main90463-12002¥140

9046712009

main90467-12009¥470

9046814004

main90468-14004¥80

9151140610

main91511-40610¥140

9161560820

main91615-60820¥140

9165540620

main91655-40620¥120

9331914010

main93319-14010¥70

9338115010

main93381-15010¥60
