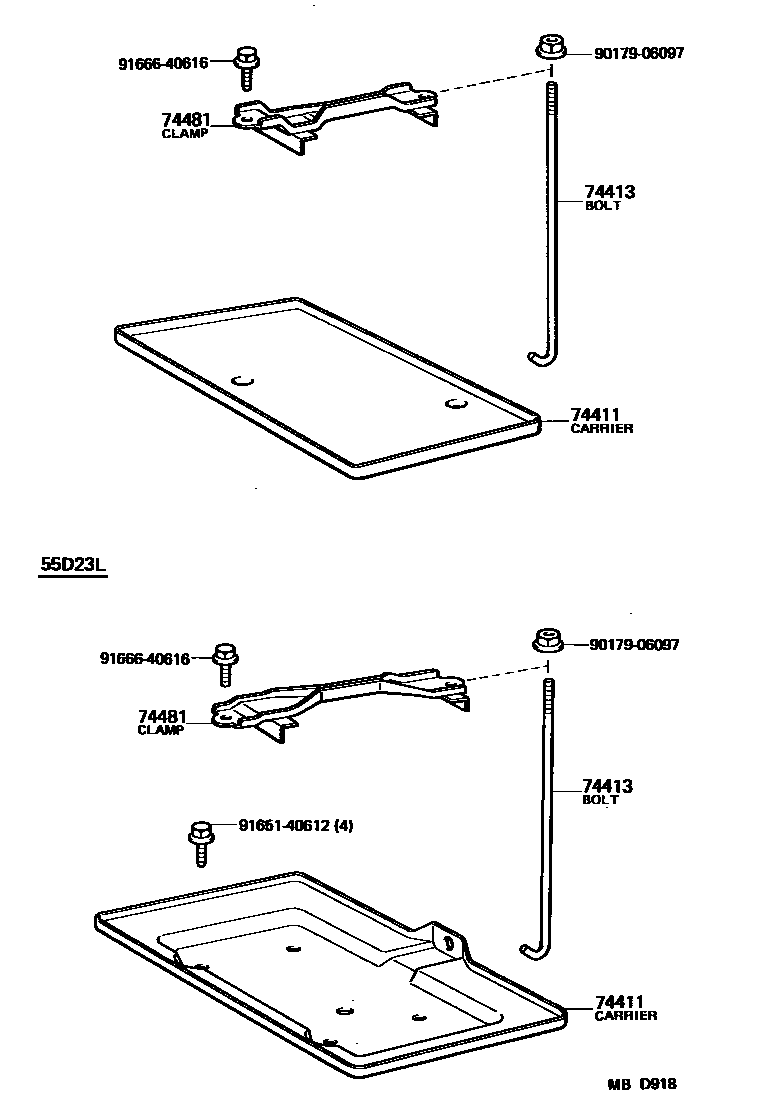

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-14070iAA63,RA63,65,TA60198108-198507

W/55D23L

main74431-14020iRA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,SA63,TA60;RA61..5F..XT..(GEN,SAA)198108-198507

W/N40,N40L

main74431-14030iRA60,61..EUR,GEN198108-198507

W/55D23R

sub74431-52040

main74431-14040iMA61..LHD..EUR198303-198512

W/N70ZL

main74431-14050iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

W/NS40ZA,NS40ZAL

74413BOLT, BATTERY CLAMP

main74451-14010iAA63,MA61,RA60,61,63,SA63,TA60198108-198512

W/O 55D23L

main74451-30060iAA63,RA63,65,TA60198108-198507

W/55D23L

74481CLAMP, BATTERY HOLD DOWN

main74404-14220iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

W/NS40ZA,NS40ZAL

main74404-14230iRA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,SA63,TA60;RA61..5F..XT..(GEN,SAA)198108-198507

W/N40,N40L

main74404-14240iAA63,RA63,65,TA60198108-198507

W/55D23L

main74404-14250iRA60,61..EUR,GEN198108-198507

W/55D23R

main74404-14260iMA61198112-198512

W/55D23L,50D20L,N70ZL

9017906097

main90179-06097

9165140612

main91651-40612

9166640616

main91666-40616

6 parts on this diagram · 1 diagram in section
