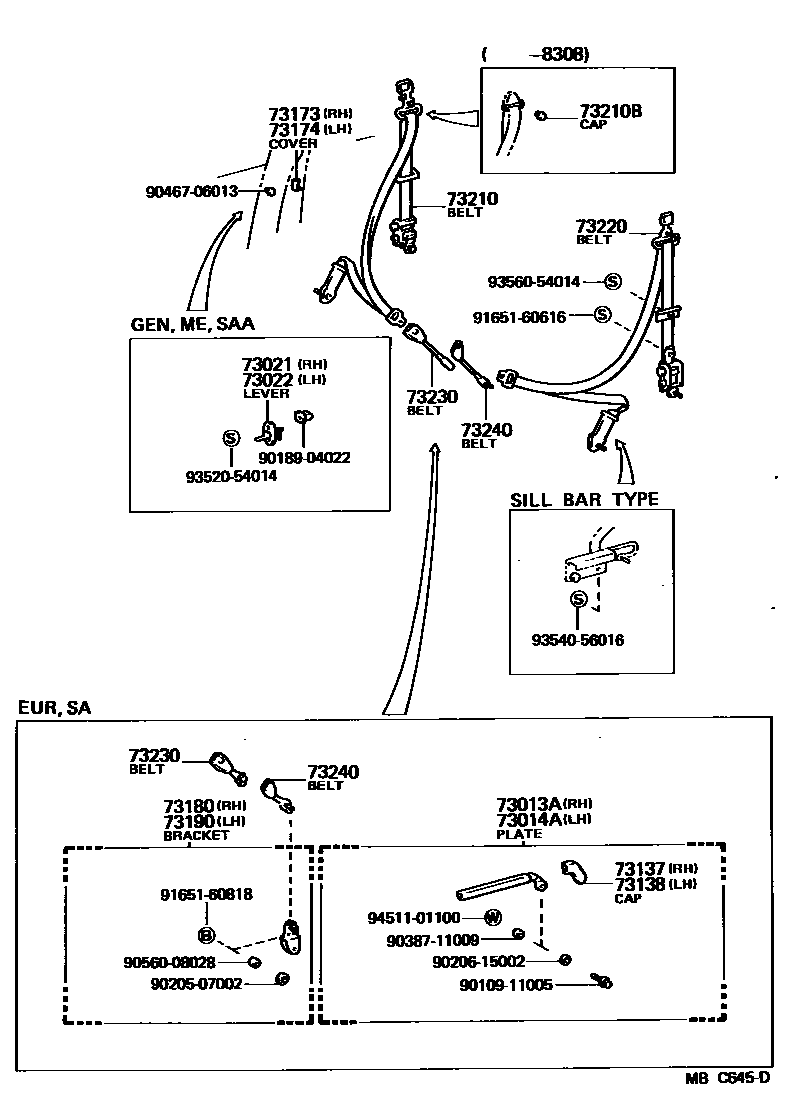

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-14020-01iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLACK,BLACK,TRIM2#

sub73013-14020

main73013-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73013-14020

main73013-14020-04iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLUE,BLUE,TRIM8#

sub73013-14020

main73013-14020-06iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub73013-14020

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-14020-01iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLACK,BLACK,TRIM2#

sub73014-14020

main73014-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73014-14020

main73014-14020-04iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLUE,BLUE,TRIM8#

sub73014-14020

main73014-14020-06iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub73014-14020

73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH

main73021-14010iMA61..EUG198209-198308

GENERAL COUNTRIES SPEC

main73021-14010iAA63,MA61,RA60,61,63,TA60..GEN,ME,SAA198108-198512

73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH

main73022-14010iMA61..EUG198209-198308

GENERAL COUNTRIES SPEC

main73022-14010iAA63,MA61,RA60,61,63,TA60..GEN,ME,SAA198108-198512

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-14020-01iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLACK,BLACK,TRIM2#

sub73137-14020

main73137-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73137-14020

main73137-14020-04iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLUE,BLUE,TRIM8#

sub73137-14020

main73137-14020-06iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub73137-14020

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-14020-01iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLACK,BLACK,TRIM2#

sub73138-14020

main73138-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73138-14020

main73138-14020-04iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

BLUE,BLUE,TRIM8#

sub73138-14020

main73138-14020-06iAA63,MA61,RA61,63,TA60..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub73138-14020

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-14010iAA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,SA198108-198512

73174COVER, FRONT SEAT BELT HOLE, LH

main73173-14010iAA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,SA198108-198512

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-14010iMA61,RA61,63,TA60..EUR198108-198203

main73011-14011iAA63,MA61,RA61,63,TA60..EUR,SA198203-198512

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-14010iMA61,RA61,63,TA60..EUR198108-198203

main73012-14011iAA63,MA61,RA61,63,TA60..EUR,SA198203-198512

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-14230-01iRA60,63,TA60..GEN,ME198108-198207

BLACK,BLACK,TRIM2#

sub73210-14230

main73210-14230-04iRA60,63,TA60..GEN,ME198108-198207

BLUE,BLUE,TRIM8#

sub73210-14230

main73210-14230-06iRA60,63,TA60..GEN,ME198108-198207

DARK BROWN,BROWN,TRIM4#

sub73210-14230

main73210-14231-01iMA61,RA60,63,TA60..GEN,ME,SAA198207-198308

BLACK,BLACK,TRIM2#

sub73210-14231

main73210-14231-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub73210-14231

main73210-14231-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73210-14231

main73210-14231-04iMA61,RA60,63,TA60..GEN,ME,SAA198207-198308

BLUE,BLUE,TRIM8#

sub73210-14231

main73210-14231-06iRA60,63,TA60..GEN,ME198207-198308

DARK BROWN,BROWN,TRIM4#

sub73210-14231

main73210-14250-01iMA61,RA61,63,TA60..EUR198108-198209

BLACK,BLACK,TRIM2#

sub73210-14251

main73210-14250-04iMA61,RA61,63,TA60..EUR198108-198209

BLUE,BLUE,TRIM8#

sub73210-14251

main73210-14250-06iMA61,RA61,63,TA60..EUR198108-198209

DARK BROWN,BROWN,TRIM4#

sub73210-14251

main73210-14251-01iMA61,RA61,63,TA60..EUR198209-198308

BLACK,BLACK,TRIM2#

sub73210-14251

main73210-14251-04iMA61,RA61,63,TA60..EUR198209-198308

BLUE,BLUE,TRIM8#

sub73210-14251

main73210-14251-06iMA61,RA61,63,TA60..EUR198209-198308

DARK BROWN,BROWN,TRIM4#

sub73210-14251

main73210-14290-01iRA60..ARL198108-198212

BLACK,BLACK,TRIM2#

sub73210-14290

main73210-14290-04iRA60..ARL198108-198212

BLUE,BLUE,TRIM8#

sub73210-14290

main73210-14290-06iRA60..ARL198108-198212

DARK BROWN,BROWN,TRIM4#

sub73210-14290

main73210-14291-01iRA60..ARL198212-198308

BLACK,BLACK,TRIM2#

sub73210-14291

main73210-14291-04iRA60..ARL198212-198308

BLUE,BLUE,TRIM8#

sub73210-14291

main73210-14291-06iRA60..ARL198212-198308

DARK BROWN,BROWN,TRIM4#

sub73210-14291

main73210-14310-01iMA61,RA61..RHD198108-198308

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73210-14310

main73210-14310-04iMA61,RA61..RHD198108-198308

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73210-14310

main73210-14310-06iMA61,RA61..RHD198108-198308

SILL BAR TYPE,DARK BROWN,BROWN,TRIM4#

sub73210-14310

main73210-14340-01iAA63,MA61,RA61,TA60..GEN,SAA198308-198408

BLACK,BLACK,TRIM2#

sub73210-14341

main73210-14340-02iMA61..GEN,SAA198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub73210-14341

main73210-14340-04iAA63,MA61,RA61,TA60..GEN,SAA198308-198408

BLUE,BLUE,TRIM8#

sub73210-14341

main73210-14340-06iAA63,RA61,TA60..GEN,SAA198308-198408

DARK BROWN,BROWN,TRIM4#

sub73210-14341

main73210-14341-01iAA63,MA61,RA61,TA60..GEN,SAA198408-198507

BLACK,BLACK,TRIM2#

sub73210-14341

main73210-14341-02iMA61..GEN,SAA198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

sub73210-14341

main73210-14341-04iAA63,MA61,RA61,TA60..GEN,SAA198408-198512

BLUE,BLUE,TRIM8#

sub73210-14341

main73210-14341-06iAA63,RA61,TA60..GEN,SAA198408-198507

DARK BROWN,DARK BROWN,TRIM4#

sub73210-14341

main73210-14350-01iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLACK,BLACK,TRIM2#

sub73210-14351

main73210-14350-04iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLUE,BLUE,TRIM8#

sub73210-14351

main73210-14350-06iAA63,MA61,RA61,TA60..EUR,SA198308-198404

DARK BROWN,BROWN,TRIM4#

sub73210-14351

main73210-14351-01iAA63,MA61,RA61,TA60..EUR,SA198404-198408

BLACK,BLACK,TRIM2#

sub73210-14352

main73210-14351-04iAA63,MA61,RA61,TA60..EUR,SA198404-198408

BLUE,BLUE,TRIM8#

sub73210-14352

main73210-14351-06iAA63,MA61,RA61,TA60..EUR,SA198404-198408

DARK BROWN,DARK BROWN,TRIM4#

sub73210-14352

main73210-14352-01iAA63,MA61,RA61,TA60..EUR,SA198408-198512

BLACK,BLACK,TRIM2#

main73210-14352-04iAA63,MA61,RA61,TA60..EUR,SA198408-198512

BLUE,BLUE,TRIM8#

main73210-14352-06iAA63,MA61,RA61,TA60..EUR,SA198408-198512

DARK BROWN,DARK BROWN,TRIM4#

main73210-14360-01iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73210-14361

main73210-14360-04iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73210-14361

main73210-14360-06iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,DARK BROWN,BROWN,TRIM4#

sub73210-14361

main73210-14361-01iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73210-14362

main73210-14361-04iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73210-14362

main73210-14361-06iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,DARK BROWN,DARK BROWN,TRIM4#

sub73210-14362

main73210-14362-01iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,BLACK,BLACK,TRIM2#

main73210-14362-04iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,BLUE,BLUE,TRIM8#

main73210-14362-06iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,DARK BROWN,DARK BROWN,TRIM4#

main73210-14371-01iMA61,SA63..ARL198308-198408

BLACK,BLACK,TRIM2#

sub73210-14372

main73210-14371-02iMA61..ARL198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub73210-14372

main73210-14371-04iMA61,SA63..ARL198308-198408

BLUE,BLUE,TRIM8#

sub73210-14372

main73210-14371-06iSA63198308-198408

DARK BROWN,BROWN,TRIM4#

sub73210-14372

main73210-14372-01iMA61,RA65..ARL198408-198512

BLACK,DARK BROWN,TRIM2#

sub73210-14372

main73210-14372-02iMA61..ARL198408-198512

DEEP MAROON,MAROON,TRIM3#

sub73210-14372

main73210-14372-04iMA61,RA65..ARL198408-198512

BLUE,BLUE,TRIM8#

sub73210-14372

main73210-14372-06iRA65198408-198507

DARK BROWN,DARK BROWN,TRIM4#

sub73210-14372

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-11iMA61,RA6#,TA60198108-198308

BLACK,BLACK,TRIM2#

sub73178-12010

main73178-12010-12iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73178-12010

main73178-12010-12iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub73178-12010

main73178-12010-14iMA61,RA6#,TA60198108-198308

BLUE,BLUE,TRIM8#

sub73178-12010

main73178-12010-26iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

DARK BROWN,BROWN,TRIM4#

sub73178-12010

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-14170-01iRA60,63,TA60..GEN,ME198108-198207

BLACK,BLACK,TRIM2#

sub73220-14170

main73220-14170-04iRA60,63,TA60..GEN,ME198108-198207

BLUE,BLUE,TRIM8#

sub73220-14170

main73220-14170-06iRA60,63,TA60..GEN,ME198108-198207

DARK BROWN,BROWN,TRIM4#

sub73220-14170

main73220-14171-01iMA61,RA60,63,TA60..GEN,ME,SAA198207-198308

BLACK,BLACK,TRIM2#

sub73220-14171

main73220-14171-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73220-14171

main73220-14171-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub73220-14171

main73220-14171-04iMA61,RA60,63,TA60..GEN,ME,SAA198207-198308

BLUE,BLUE,TRIM8#

sub73220-14171

main73220-14171-06iRA60,63,TA60..GEN,ME198207-198308

DARK BROWN,BROWN,TRIM4#

sub73220-14171

main73220-14190-01iMA61,RA61,63,TA60..EUR198108-198209

BLACK,BLACK,TRIM2#

sub73220-14191

main73220-14190-04iMA61,RA61,63,TA60..EUR198108-198209

BLUE,BLUE,TRIM8#

sub73220-14191

main73220-14190-06iMA61,RA61,63,TA60..EUR198108-198209

DARK BROWN,BROWN,TRIM4#

sub73220-14191

main73220-14191-01iMA61,RA61,63,TA60..EUR198209-198308

BLACK,BLACK,TRIM2#

sub73220-14191

main73220-14191-04iMA61,RA61,63,TA60..EUR198209-198308

BLUE,BLUE,TRIM8#

sub73220-14191

main73220-14191-06iMA61,RA61,63,TA60..EUR198209-198308

DARK BROWN,BROWN,TRIM4#

sub73220-14191

main73220-14230-01iRA60..ARL198108-198212

BLACK,BLACK,TRIM2#

sub73220-14230

main73220-14230-04iRA60..ARL198108-198212

BLUE,BLUE,TRIM8#

sub73220-14230

main73220-14230-06iRA60..ARL198108-198212

DARK BROWN,BROWN,TRIM4#

sub73220-14230

main73220-14231-01iRA60..ARL198212-198308

BLACK,BLACK,TRIM2#

sub73220-14231

main73220-14231-04iRA60..ARL198212-198308

BLUE,BLUE,TRIM8#

sub73220-14231

main73220-14231-06iRA60..ARL198212-198308

DARK BROWN,BROWN,TRIM4#

sub73220-14231

main73220-14250-01iMA61,RA61..RHD198108-198308

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73220-14250

main73220-14250-04iMA61,RA61..RHD198108-198308

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73220-14250

main73220-14250-06iMA61,RA61..RHD198108-198308

SILL BAR TYPE,DARK BROWN,BROWN,TRIM4#

sub73220-14250

main73220-14280-01iAA63,MA61,RA61,TA60..GEN,SAA198308-198408

BLACK,BLACK,TRIM2#

sub73220-14281

main73220-14280-02iMA61..GEN,SAA198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub73220-14281

main73220-14280-04iAA63,MA61,RA61,TA60..GEN,SAA198308-198408

BLUE,BLUE,TRIM8#

sub73220-14281

main73220-14280-06iAA63,RA61,TA60..GEN,SAA198308-198408

DARK BROWN,BROWN,TRIM4#

sub73220-14281

main73220-14281-01iAA63,MA61,RA61,TA60..GEN,SAA198408-198507

BLACK,BLACK,TRIM2#

sub73220-14281

main73220-14281-02iMA61..GEN,SAA198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

sub73220-14281

main73220-14281-04iAA63,MA61,RA61,TA60..GEN,SAA198408-198512

BLUE,BLUE,TRIM8#

sub73220-14281

main73220-14281-06iAA63,RA61,TA60..GEN,SAA198408-198507

DARK BROWN,DARK BROWN,TRIM4#

sub73220-14281

main73220-14290-01iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLACK,BLACK,TRIM2#

sub73220-14291

main73220-14290-04iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLUE,BLUE,TRIM8#

sub73220-14291

main73220-14290-06iAA63,MA61,RA61,TA60..EUR,SA198308-198404

DARK BROWN,BROWN,TRIM4#

sub73220-14291

main73220-14291-01iAA63,MA61,RA61,TA60..EUR,SA198404-198408

BLACK,BLACK,TRIM2#

sub73220-14292

main73220-14291-04iAA63,MA61,RA61,TA60..EUR,SA198404-198408

BLUE,BLUE,TRIM8#

sub73220-14292

main73220-14291-06iAA63,MA61,RA61,TA60..EUR,SA198404-198408

DARK BROWN,DARK BROWN,TRIM4#

sub73220-14292

main73220-14292-01iAA63,MA61,RA61,TA60..EUR,SA198408-198512

BLACK,BLACK,TRIM2#

main73220-14292-04iAA63,MA61,RA61,TA60..EUR,SA198408-198512

BLUE,BLUE,TRIM8#

main73220-14292-06iAA63,MA61,RA61,TA60..EUR,SA198408-198512

DARK BROWN,DARK BROWN,TRIM4#

main73220-14300-01iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73220-14301

main73220-14300-04iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73220-14301

main73220-14300-06iMA61,RA61..RHD..EUG198308-198404

SILL BAR TYPE,DARK BROWN,BROWN,TRIM4#

sub73220-14301

main73220-14301-01iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,BLACK,BLACK,TRIM2#

sub73220-14302

main73220-14301-04iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,BLUE,BLUE,TRIM8#

sub73220-14302

main73220-14301-06iMA61,RA61..RHD..EUG198404-198408

SILL BAR TYPE,DARK BROWN,DARK BROWN,TRIM4#

sub73220-14302

main73220-14302-01iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,BLACK,BLACK,TRIM2#

main73220-14302-04iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,BLUE,BLUE,TRIM8#

main73220-14302-06iMA61,RA61..RHD..EUG198408-198512

SILL BAR TYPE,DARK BROWN,DARK BROWN,TRIM4#

main73220-14311-01iMA61,SA63..ARL198308-198408

BLACK,BLACK,TRIM2#

sub73220-14312

main73220-14311-02iMA61..ARL198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub73220-14312

main73220-14311-04iMA61,SA63..ARL198308-198408

BLUE,BLUE,TRIM8#

sub73220-14312

main73220-14311-06iSA63198308-198408

DARK BROWN,BROWN,TRIM4#

sub73220-14312

main73220-14312-01iMA61,RA65..ARL198408-198512

BLACK,BLACK,TRIM2#

main73220-14312-02iMA61..ARL198408-198512

DEEP MAROON,MAROON,TRIM3#

main73220-14312-04iMA61,RA65..ARL198408-198512

BLUE,BLUE,TRIM8#

main73220-14312-06iRA65198408-198507

DARK BROWN,DARK BROWN,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-14180-01iMA61,RA61,63,TA60..EUR198108-198203

BLACK,BLACK,TRIM2#

sub73230-14180

main73230-14180-04iMA61,RA61,63,TA60..EUR198108-198203

BLUE,BLUE,TRIM8#

sub73230-14180

main73230-14180-06iMA61,RA61,63,TA60..EUR198108-198203

DARK BROWN,BROWN,TRIM4#

sub73230-14180

main73230-14181-01iMA61,RA61,63,TA60..EUR198203-198308

BLACK,BLACK,TRIM2#

sub73230-14320

main73230-14181-04iMA61,RA61,63,TA60..EUR198203-198308

BLUE,BLUE,TRIM8#

sub73230-14320

main73230-14181-06iMA61,RA61,63,TA60..EUR198203-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14320

main73230-14220-01iMA61,RA60,63,TA60..GEN,ME,SAA198108-198308

BLACK,BLACK,TRIM2#

sub73230-14220

main73230-14220-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73230-14220

main73230-14220-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub73230-14220

main73230-14220-04iMA61,RA60,63,TA60..GEN,ME,SAA198108-198308

BLUE,BLUE,TRIM8#

sub73230-14220

main73230-14220-06iRA60,63,TA60..GEN,ME198108-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14220

main73230-14240-01iRA60..ARL198108-198308

BLACK,BLACK,TRIM2#

sub73230-14330

main73230-14240-04iRA60..ARL198108-198308

BLUE,BLUE,TRIM8#

sub73230-14330

main73230-14240-06iRA60..ARL198108-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14330

main73230-14310-01iAA63,MA61,RA61,TA60..GEN,SAA198308-198512

BLACK,BLACK,TRIM2#

sub73230-14310

main73230-14310-02iMA61..GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub73230-14310

main73230-14310-04iAA63,MA61,RA61,TA60..GEN,SAA198308-198512

BLUE,BLUE,TRIM8#

sub73230-14310

main73230-14310-06iAA63,RA61,TA60..GEN,SAA198308-198507

DARK BROWN,BROWN,TRIM4#

sub73230-14310

main73230-14320-01iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLACK,BLACK,TRIM2#

sub73230-14321

main73230-14320-04iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLUE,BLUE,TRIM8#

sub73230-14321

main73230-14320-06iAA63,MA61,RA61,TA60..EUR,SA198308-198404

DARK BROWN,BROWN,TRIM4#

sub73230-14321

main73230-14321-01iAA63,MA61,RA61,TA60..EUR,SA198404-198512

BLACK,BLACK,TRIM2#

main73230-14321-04iAA63,MA61,RA61,TA60..EUR,SA198404-198512

BLUE,BLUE,TRIM8#

main73230-14321-06iAA63,MA61,RA61,TA60..EUR,SA198404-198512

DARK BROWN,DARK BROWN,TRIM4#

main73230-14330-01iMA61,RA65,SA63..ARL198308-198512

BLACK,BLACK,TRIM2#

main73230-14330-02iMA61..ARL198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73230-14330-04iMA61,RA65,SA63..ARL198308-198512

BLUE,BLUE,TRIM8#

main73230-14330-06iRA65,SA63198308-198507

DARK BROWN,BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-14180-01iMA61,RA61,63,TA60..EUR198108-198203

BLACK,BLACK,TRIM2#

sub73230-14180

main73230-14180-04iMA61,RA61,63,TA60..EUR198108-198203

BLUE,BLUE,TRIM8#

sub73230-14180

main73230-14180-06iMA61,RA61,63,TA60..EUR198108-198203

DARK BROWN,BROWN,TRIM4#

sub73230-14180

main73230-14181-01iMA61,RA61,63,TA60..EUR198203-198308

BLACK,BLACK,TRIM2#

sub73230-14320

main73230-14181-04iMA61,RA61,63,TA60..EUR198203-198308

BLUE,BLUE,TRIM8#

sub73230-14320

main73230-14181-06iMA61,RA61,63,TA60..EUR198203-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14320

main73230-14220-01iMA61,RA60,63,TA60..GEN,ME,SAA198108-198308

BLACK,BLACK,TRIM2#

sub73230-14220

main73230-14220-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub73230-14220

main73230-14220-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub73230-14220

main73230-14220-04iMA61,RA60,63,TA60..GEN,ME,SAA198108-198308

BLUE,BLUE,TRIM8#

sub73230-14220

main73230-14220-06iRA60,63,TA60..GEN,ME198108-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14220

main73230-14240-01iRA60..ARL198108-198308

BLACK,BLACK,TRIM2#

sub73230-14330

main73230-14240-04iRA60..ARL198108-198308

BLUE,BLUE,TRIM8#

sub73230-14330

main73230-14240-06iRA60..ARL198108-198308

DARK BROWN,BROWN,TRIM4#

sub73230-14330

main73230-14310-01iAA63,MA61,RA61,TA60..GEN198308-198512

BLACK,BLACK,TRIM2#

sub73230-14310

main73230-14310-02iMA61..GEN198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub73230-14310

main73230-14310-04iAA63,MA61,RA61,TA60..GEN198308-198512

BLUE,BLUE,TRIM8#

sub73230-14310

main73230-14310-06iAA63,RA61,TA60..GEN198308-198507

DARK BROWN,BROWN,TRIM4#

sub73230-14310

main73230-14320-01iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLACK,BLACK,TRIM2#

sub73230-14321

main73230-14320-04iAA63,MA61,RA61,TA60..EUR,SA198308-198404

BLUE,BLUE,TRIM8#

sub73230-14321

main73230-14320-06iAA63,MA61,RA61,TA60..EUR,SA198308-198404

DARK BROWN,BROWN,TRIM4#

sub73230-14321

main73230-14321-01iAA63,MA61,RA61,TA60..EUR,SA198404-198512

BLACK,BLACK,TRIM2#

main73230-14321-04iAA63,MA61,RA61,TA60..EUR,SA198404-198512

BLUE,BLUE,TRIM8#

main73230-14321-06iAA63,MA61,RA61,TA60..EUR,SA198404-198512

DARK BROWN,DARK BROWN,TRIM4#

main73230-14330-01iMA61,RA65,SA63..ARL198308-198512

BLACK,BLACK,TRIM2#

main73230-14330-02iMA61..ARL198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73230-14330-04iMA61,RA65,SA63..ARL198308-198512

BLUE,BLUE,TRIM8#

main73230-14330-06iRA65,SA63198308-198507

DARK BROWN,BROWN,TRIM4#

main73240-14090-01iRA61..SAA198308-198507

BLACK,BLACK,TRIM2#

main73240-14090-02iMA61..SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73240-14090-04iMA61,RA61..SAA198308-198512

BLUE,BLUE,TRIM8#

main73240-14090-06iRA61..SAA198308-198507

DARK BROWN,BROWN,TRIM4#

9010911005

main90109-11005

9018904022

main90189-04022

9020507002

main90205-07002

9020615002

main90206-15002

9038711009

main90387-11009

9046706013

main90467-06013

9056008028

main90560-08028

9165160616

main91651-60616

9165160818

main91651-60818

9352054014

main93520-54014

9354056016

main93540-56016

9356054014

main93560-54014

9451101100

main94511-01100

28 parts on this diagram · 2 diagrams in section
