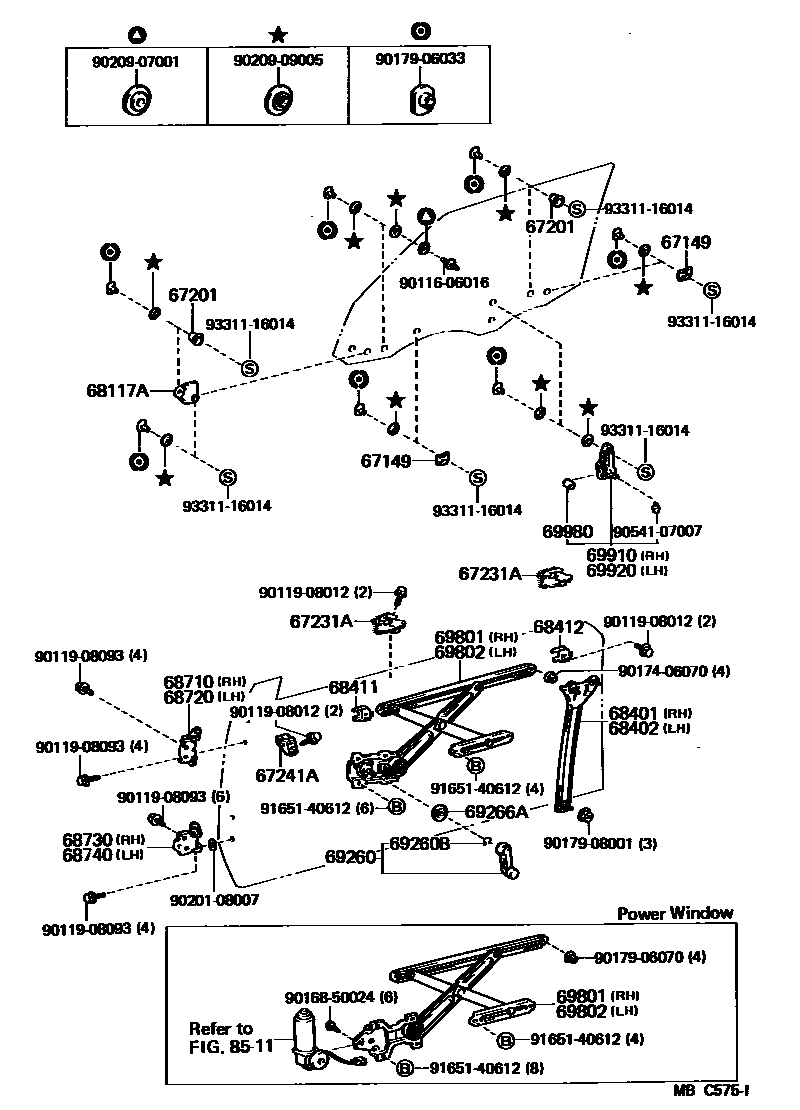

FRONT DOOR WINDOW REGULATOR & HINGE

67149STABILIZER, FRONT DOOR GLASS

main68149-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main68147-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

67231ASUPPORT, FRONT DOOR TRIM

main67231-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

sub67231-20030

67241ASTABILIZER, DOOR GLASS, INNER

main67241-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

INNER

sub67241-14011

68117APLATE, FRONT DOOR GLASS

main68117-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

RH

main68118-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

LH

68401GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH

main67401-14100iAA63,MA61,RA6#,SA63,TA60198108-198512

68402GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH

main67402-14100iAA63,MA61,RA6#,SA63,TA60198108-198512

68411STOPPER, DOOR WINDOW GLASS, UPPER FRONT

main67211-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

68412STOPPER, DOOR WINDOW GLASS, UPPER REAR

main67211-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

sub68730-14060

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

sub68740-14060

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-01iRA61..SDZ;AA63,RA6#,SA63,TA60..ARL,GEN,SAA198108-198507

BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-04iRA61..SDZ;AA63,RA6#,SA63,TA60..ARL,GEN,SAA198108-198507

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-06iRA61..SDZ;AA63,RA6#,SA63,TA60..ARL,GEN,SAA198108-198507

DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14030-01iAA63,RA61,63,TA60..EUG198108-198507

BLACK,BLACK,TRIM2#

sub69260-14030

main69260-14030-04iAA63,RA61,63,TA60..EUG198108-198507

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14030-06iAA63,RA61,63,TA60..EUG198108-198507

DARK BROWN,BROWN,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAA63,RA6#,SA63,TA60198108-198507

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010iAA63,RA6#,SA63,TA60198108-198507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-14080iMA61198112-198512

main69810-14150iAA63,RA6#,SA63,TA60198108-198507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-14080iMA61198112-198512

main69820-14140iAA63,RA6#,SA63,TA60198108-198507

69910BRACKET ASSY, FRONT DOOR GLASS, RH

main69901-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

69920BRACKET ASSY, FRONT DOOR GLASS, LH

main69902-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

69980ROLLER ASSY, FRONT DOOR GLASS GUIDE

main69981-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

8511

9011606016

main90116-06016

9011908012

main90119-08012

9011908093

main90119-08093

9016850024

main90168-50024

9017406070

main90174-06070

9017906033

main90179-06033

9017906070

main90179-06070

9017908001

main90179-08001

9020108007

main90201-08007

9020907001

main90209-07001

9020909005

main90209-09005

9054107007

main90541-07007

9165140612

main91651-40612

9331116014

main93311-16014

36 parts on this diagram · 1 diagram in section
