FRONT DOOR PANEL & GLASS

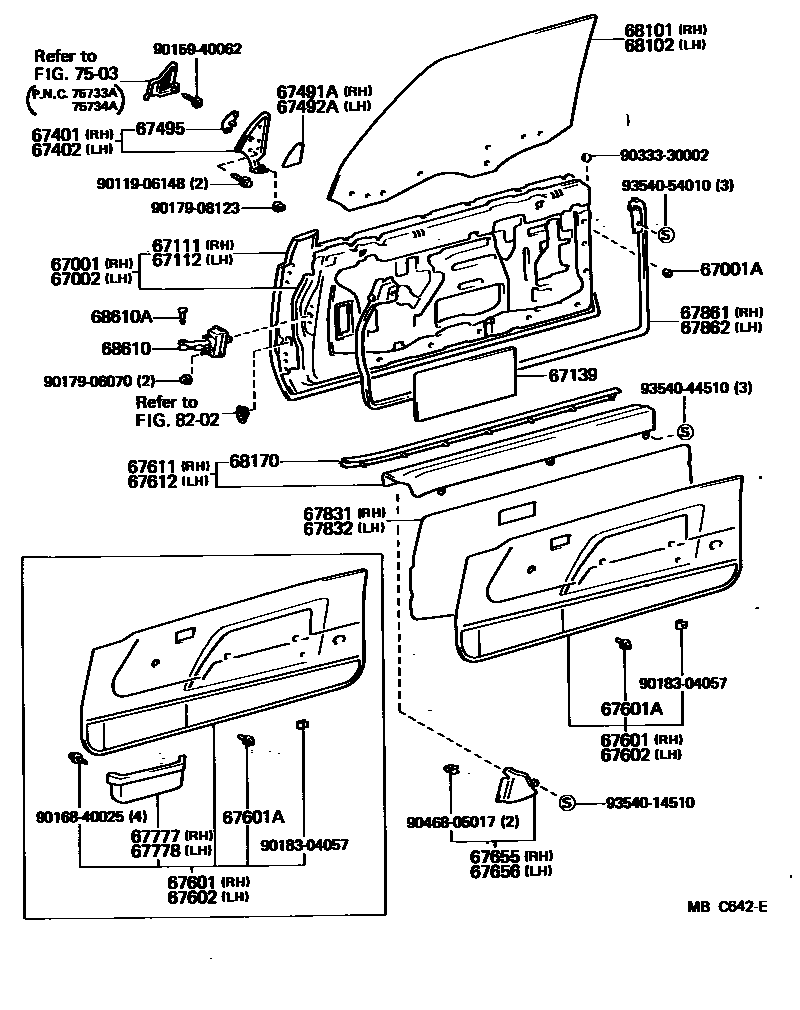

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-14230i198108-198512
main67001-14240i198108-198512
67001ACUSHION, FRONT DOOR PANEL
main90541-09006i198108-198512
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-14260i198108-198512
main67002-14270i198108-198512
67111PANEL, FRONT DOOR, OUTER RH
main67111-14180i198108-198512
67112PANEL, FRONT DOOR, OUTER LH
main67112-14190i198108-198512
67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT
main67812-20050i198108-198512
sub67812-12010
67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
main67401-14130i198108-198512
W/*RCM
main67401-14170i198209-198308
GENERAL COUNTRIES SPEC
main67401-14170i198208-198512
main67401-14190i198108-198512
67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
main67402-14130i198108-198512
W/*RCM
main67402-14170i198209-198308
GENERAL COUNTRIES SPEC
main67402-14170i198208-198512
main67402-14190i198108-198512
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-14060i198108-198512
W/*RCM
main67491-14070i198108-198512
W/O MIRROR
main67491-14070i198209-198308
GENERAL COUNTRIES SPEC
main67491-14070i198208-198512
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-14060i198108-198512
W/*RCM
main67492-14070i198208-198512
main67492-14070i198108-198512
W/O MIRROR
main67492-14070i198108-198308
W/MANUAL MIRROR
main67492-14070i198209-198308
GENERAL COUNTRIES SPEC
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
main67495-14060i198108-198512
RH
main67496-14060i198108-198512
LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1B540-01i198108-198308
BLACK,BLACK,TRIM2#
main67610-1B540-04i198108-198308
BLUE,BLUE,TRIM8#
main67610-1B540-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67610-1B580-01i198108-198507
BLACK,BLACK,TRIM2#
main67610-1B580-04i198108-198507
BLUE,BLUE,TRIM8#
main67610-1B580-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main67610-1B590-01i198108-198308
BLACK,BLACK,TRIM2#
main67610-1B590-04i198108-198308
BLUE,BLUE,TRIM8#
main67610-1B590-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67610-1B600-01i198108-198308
BLACK,BLACK,TRIM2#
main67610-1B600-01i198108-198308
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
main67610-1B600-04i198108-198308
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
main67610-1B600-04i198108-198308
BLUE,BLUE,TRIM8#
main67610-1B600-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67610-1B600-06i198108-198308
W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#
main67610-1B650-01i198108-198208
BLACK,BLACK,TRIM2#
main67610-1B650-04i198108-198208
BLUE,BLUE,TRIM8#
main67610-1B650-06i198108-198208
DARK BROWN,BROWN,TRIM4#
main67610-1B651-01i198208-198308
BLACK,BLACK,TRIM2#
main67610-1B651-04i198208-198308
BLUE,BLUE,TRIM8#
main67610-1B651-06i198208-198308
DARK BROWN,BROWN,TRIM4#
main67610-1B690-01i198112-198308
BLACK,BLACK,TRIM2#
main67610-1B690-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main67610-1B690-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main67610-1B690-04i198112-198308
BLUE,BLUE,TRIM8#
main67610-1B690-06i198112-198308
DARK BROWN,BROWN,TRIM4#
main67650-14240-01i198308-198405
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
sub67650-14240
main67650-14240-01i198308-198405
BLACK,BLACK,TRIM2#
sub67650-14240
main67650-14240-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
sub67650-14240
main67650-14240-04i198308-198408
BLUE,BLUE,TRIM8#
sub67650-14240
main67650-14240-06i198308-198408
W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#
sub67650-14240
main67650-14240-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67650-14240
main67650-14240-11i198405-198408
BLACK,BLACK,TRIM2#
sub67650-14240
main67650-14240-11i198405-198408
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
sub67650-14240
main67650-14250-01i198308-198408
BLACK,BLACK,TRIM2#
sub67650-14250
main67650-14250-04i198308-198507
BLUE,BLUE,TRIM8#
sub67650-14250
main67650-14250-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub67650-14250
main67650-14250-11i198408-198507
BLACK,BLACK,TRIM2#
sub67650-14250
main67650-14260-01i198308-198405
BLACK,BLACK,TRIM2#
sub67650-14260
main67650-14260-04i198308-198408
BLUE,BLUE,TRIM8#
sub67650-14260
main67650-14260-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67650-14260
main67650-14260-11i198405-198408
BLACK,BLACK,TRIM2#
sub67650-14260
main67650-14261-01i198408-198507
BLACK,BLACK,TRIM2#
main67650-14261-04i198408-198507
BLUE,BLUE,TRIM8#
main67650-14261-06i198408-198507
DARK BROWN,DARK BROWN,TRIM4#
main67650-14360-01i198308-198405
BLACK,BLACK,TRIM2#
sub67650-14360
main67650-14360-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
sub67650-14360
main67650-14360-04i198308-198408
BLUE,BLUE,TRIM8#
sub67650-14360
main67650-14360-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67650-14360
main67650-14360-11i198405-198408
BLACK,BLACK,TRIM2#
sub67650-14360
main67650-14400-01i198308-198408
BLACK,BLACK,TRIM2#
sub67650-14400
main67650-14400-04i198308-198507
BLUE,BLUE,TRIM8#
sub67650-14400
main67650-14400-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub67650-14400
main67650-14400-11i198408-198507
BLACK,BLACK,TRIM2#
sub67650-14400
main67650-14440-01i198408-198507
BLACK,BLACK,TRIM2#
main67650-14440-01i198408-198507
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
main67650-14440-04i198408-198507
BLUE,BLUE,TRIM8#
main67650-14440-04i198408-198507
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
main67650-14440-06i198408-198507
DARK BROWN,DARK BROWN,TRIM4#
main67650-14440-06i198408-198507
W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#
main67650-14450-01i198408-198512
BLACK,BLACK,TRIM2#
main67650-14450-02i198408-198512
DEEP MAROON,DEEP MAROON,TRIM3#
main67650-14450-04i198408-198512
BLUE,BLUE,TRIM8#
main67650-14450-06i198408-198512
DARK BROWN,DARK BROWN,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-12010i198108-198512
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-1B230-01i198108-198308
BLACK,BLACK,TRIM2#
main67620-1B230-04i198108-198308
BLUE,BLUE,TRIM8#
main67620-1B230-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67620-1B270-01i198108-198507
BLACK,BLACK,TRIM2#
main67620-1B270-04i198108-198507
BLUE,BLUE,TRIM8#
main67620-1B270-06i198108-198507
DARK BROWN,BROWN,TRIM4#
main67620-1B280-01i198108-198308
BLACK,BLACK,TRIM2#
main67620-1B280-04i198108-198308
BLUE,BLUE,TRIM8#
main67620-1B280-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67620-1B330-01i198108-198308
BLACK,BLACK,TRIM2#
main67620-1B330-01i198108-198308
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
main67620-1B330-04i198108-198308
BLUE,BLUE,TRIM8#
main67620-1B330-04i198108-198308
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
main67620-1B330-06i198108-198308
DARK BROWN,BROWN,TRIM4#
main67620-1B330-06i198108-198308
W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#
main67620-1B340-01i198108-198208
BLACK,BLACK,TRIM2#
main67620-1B340-04i198108-198208
BLUE,BLUE,TRIM8#
main67620-1B340-06i198108-198208
DARK BROWN,BROWN,TRIM4#
main67620-1B380-01i198112-198308
BLACK,BLACK,TRIM2#
main67620-1B380-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main67620-1B380-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main67620-1B380-04i198112-198308
BLUE,BLUE,TRIM8#
main67620-1B380-06i198112-198308
DARK BROWN,BROWN,TRIM4#
main67620-1B400-01i198208-198308
BLACK,BLACK,TRIM2#
main67620-1B400-04i198208-198308
BLUE,BLUE,TRIM8#
main67620-1B400-06i198208-198308
DARK BROWN,BROWN,TRIM4#
main67620-1B870-01i198308-198408
BLACK,BLACK,TRIM2#
sub67620-1B870
main67620-1B870-04i198308-198507
BLUE,BLUE,TRIM8#
sub67620-1B870
main67620-1B870-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub67620-1B870
main67620-1B870-11i198408-198507
BLACK,BLACK,TRIM2#
sub67620-1B870
main67620-1B880-01i198308-198405
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
sub67620-1B880
main67620-1B880-01i198308-198405
BLACK,BLACK,TRIM2#
sub67620-1B880
main67620-1B880-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
sub67620-1B880
main67620-1B880-04i198308-198408
BLUE,BLUE,TRIM8#
sub67620-1B880
main67620-1B880-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67620-1B880
main67620-1B880-06i198308-198408
W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#
sub67620-1B880
main67620-1B880-11i198405-198408
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
sub67620-1B880
main67620-1B880-11i198405-198408
BLACK,BLACK,TRIM2#
sub67620-1B880
main67620-1B890-01i198308-198405
BLACK,BLACK,TRIM2#
sub67620-1B890
main67620-1B890-04i198308-198408
BLUE,BLUE,TRIM8#
sub67620-1B890
main67620-1B890-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67620-1B890
main67620-1B890-11i198405-198408
BLACK,BLACK,TRIM2#
sub67620-1B890
main67620-1B891-01i198408-198507
BLACK,BLACK,TRIM2#
main67620-1B891-04i198408-198507
BLUE,BLUE,TRIM8#
main67620-1B891-06i198408-198507
DARK BROWN,DARK BROWN,TRIM4#
main67620-1D100-01i198308-198405
BLACK,BLACK,TRIM2#
sub67620-1D100
main67620-1D100-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
sub67620-1D100
main67620-1D100-04i198308-198408
BLUE,BLUE,TRIM8#
sub67620-1D100
main67620-1D100-06i198308-198408
DARK BROWN,BROWN,TRIM4#
sub67620-1D100
main67620-1D100-11i198405-198408
BLACK,BLACK,TRIM2#
sub67620-1D100
main67620-1D130-01i198308-198408
BLACK,BLACK,TRIM2#
sub67620-1D130
main67620-1D130-04i198308-198507
BLUE,BLUE,TRIM8#
sub67620-1D130
main67620-1D130-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub67620-1D130
main67620-1D130-11i198408-198507
BLACK,BLACK,TRIM2#
sub67620-1D130
main67620-1D180-01i198408-198507
W/SPORTS SEAT,BLACK,BLACK,TRIM2#
main67620-1D180-01i198408-198507
BLACK,BLACK,TRIM2#
main67620-1D180-04i198408-198507
BLUE,BLUE,TRIM8#
main67620-1D180-04i198408-198507
W/SPORTS SEAT,BLUE,BLUE,TRIM8#
main67620-1D180-06i198408-198507
W/SPORTS SEAT,DARK BROWN,DARK BROWN,TRIM4#
main67620-1D180-06i198408-198507
DARK BROWN,DARK BROWN,TRIM4#
main67620-1D190-01i198408-198512
BLACK,BLACK,TRIM2#
main67620-1D190-02i198408-198512
DEEP MAROON,DEEP MAROON,TRIM3#
main67620-1D190-04i198408-198512
BLUE,BLUE,TRIM8#
main67620-1D190-06i198408-198512
DARK BROWN,DARK BROWN,TRIM4#
67611BOARD, FRONT DOOR TRIM, UPPER RH
main67610-1B770-01i198108-198512
BLACK,BLACK,TRIM2#
main67610-1B770-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main67610-1B770-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main67610-1B770-04i198108-198512
BLUE,BLUE,TRIM8#
main67610-1B770-06i198108-198512
DARK BROWN,BROWN,TRIM4#
main67610-1B770-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
67612BOARD, FRONT DOOR TRIM, UPPER LH
main67620-1B460-01i198108-198512
BLACK,BLACK,TRIM2#
main67620-1B460-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
main67620-1B460-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
main67620-1B460-04i198108-198512
BLUE,BLUE,TRIM8#
main67620-1B460-06i198108-198512
DARK BROWN,BROWN,TRIM4#
main67620-1B460-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
67655GARNISH, FRONT DOOR TRIM, RH
main67655-14010-01i198108-198512
BLACK,BLACK,TRIM2#
sub67655-14010
main67655-14010-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
sub67655-14010
main67655-14010-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
sub67655-14010
main67655-14010-04i198108-198512
BLUE,BLUE,TRIM8#
sub67655-14010
main67655-14010-06i198108-198512
DARK BROWN,BROWN,TRIM4#
sub67655-14010
main67655-14010-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
sub67655-14010
67656GARNISH, DOOR TRIM, LH
main67656-14010-01i198108-198512
BLACK,BLACK,TRIM2#
sub67656-14010
main67656-14010-02i198209-198308
GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#
sub67656-14010
main67656-14010-02i198208-198308
TERRA COTTA,RED/MAROON,TRIM3#
sub67656-14010
main67656-14010-04i198108-198512
BLUE,BLUE,TRIM8#
sub67656-14010
main67656-14010-06i198108-198512
DARK BROWN,BROWN,TRIM4#
sub67656-14010
main67656-14010-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
sub67656-14010
67777POCKET, FRONT DOOR TRIM, RH
main67777-20061-01i198308-198507
BLACK,BLACK,TRIM2#
main67777-20061-04i198308-198507
BLUE,BLUE,TRIM8#
main67777-20061-16i198308-198507
DARK BROWN,BROWN,TRIM4#
67778POCKET, FRONT DOOR TRIM, LH
main67778-20021-01i198308-198507
BLACK,BLACK,TRIM2#
main67778-20021-04i198308-198507
BLUE,BLUE,TRIM8#
main67778-20021-16i198308-198507
DARK BROWN,BROWN,TRIM4#
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-14120i198108-198512
main67831-14130i198208-198308
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-14050i198108-198512
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-14250i198108-198512
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-14250i198108-198512
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-14270i198108-198512
T=5.0,*TT
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-14280i198108-198512
T=5.0,*TT
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-14160i198108-198512
RH
main68220-14130i198108-198512
LH
68610CHECK ASSY, FRONT DOOR
main68610-14040i198108-198512
68610APIN(FOR FRONT DOOR CHECK)
main68617-30010i198108-198512
sub68617-90K00
7503
8202
9011906148
main90119-06148
9015940062
main90159-40062
9016840025
main90168-40025
9017906070
main90179-06070
9017908123
main90179-08123
9018304057
main90183-04057
9033330002
main90333-30002
9046805017
main90468-05017
9354014510
main93540-14510
9354044510
main93540-44510
9354054010
main93540-54010

42 parts on this diagram · 1 diagram in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
